Chapter 7 Elevator Application Guidance
This chapter will guide you through the basic procedures of system design and function code
configuration when the controller is applied in elevator control system.
7.1 Basic Debug Procedures
7.1.1 System Analysis and Wire
We recommend you to analyze the actual application requirements before the wiring design.
Basic configuration for elevator system with HD5L is shown in Figure 7-1:

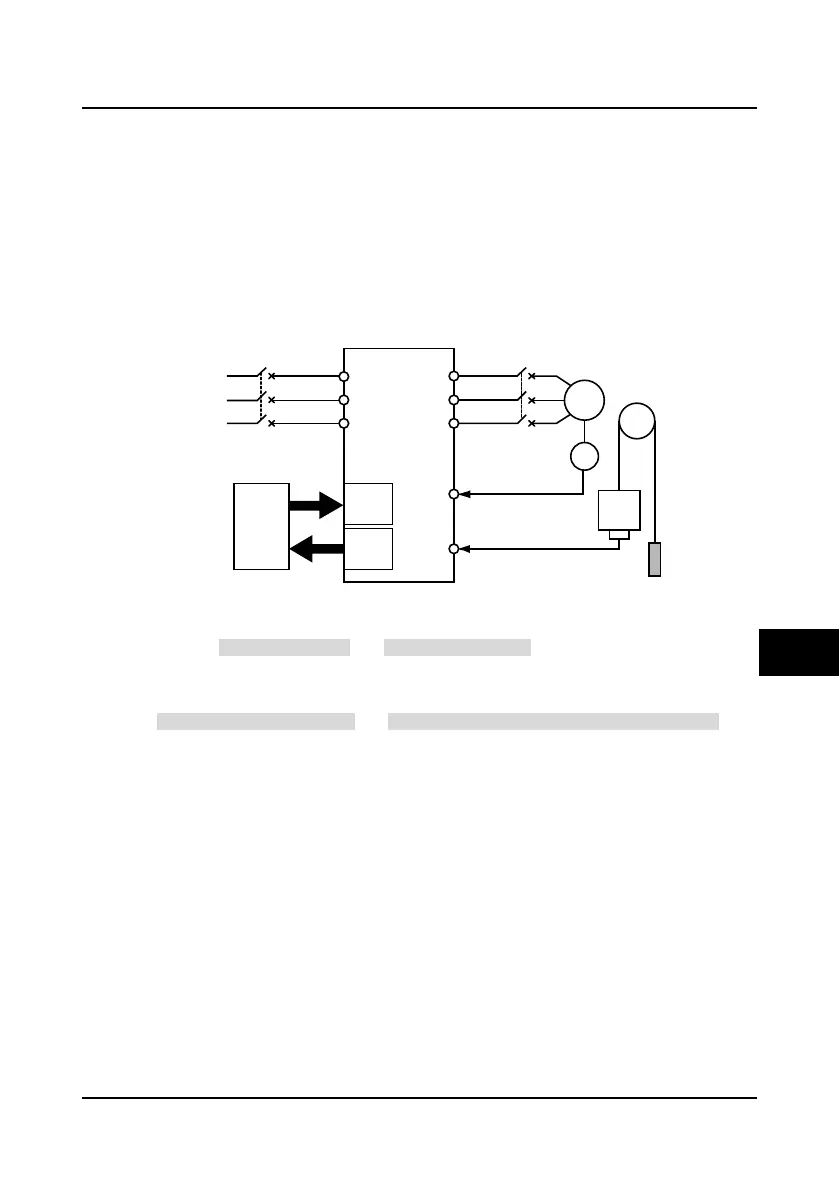

Figure 7-1 Basic configuration for elevator system with HD5L
7.1.2 Set Basic Parameters
1. Correctly set F00.00 (motor type) and F00.01 (control mode) according to motor type.
2. Set relevant parameters of motor. For the asynchronous motor, set Group F07. For the
synchronous motor, set Group F10.
3. Set F00.02 (elevator rated speed) and F00.04 (traction machine mechanical parameters)
according to the elevator requirement and motor parameters.
4. Set encoder relevant parameters of Group F11 according to the encoder configured to motor.
5. Set digital I/O function parameters of Group F12 according to the actual wiring.
6. Set the parameter according to the actual running mode:
• Terminal MS running mode: Set MS relevant parameters of Group F05 according to the
elevator actual requirement and the controller. Set Acc/Dec curve parameters of Group F03
according to the elevator speed.
• Terminal analogue running mode: Set analogue curve parameters of Group F04 and
analogue I/O terminal parameters of Group F13 according to the elevator actual requirement
and the controller. The bigger Acc/Dec curve parameters of Group F03 are set, the quicker
HD5L catch the speed command of elevator controller.
HD5L
MCCB
U
V
W
L1
L2
L3
R
S
T
Three-phaseinput power supply
Speed feedback
Contactor
Weighingsignalfeedback
Car
Counter weight
380V 50/60Hz
Elevator
controller
Input
terminal
Output
terminal
M
PG
7
