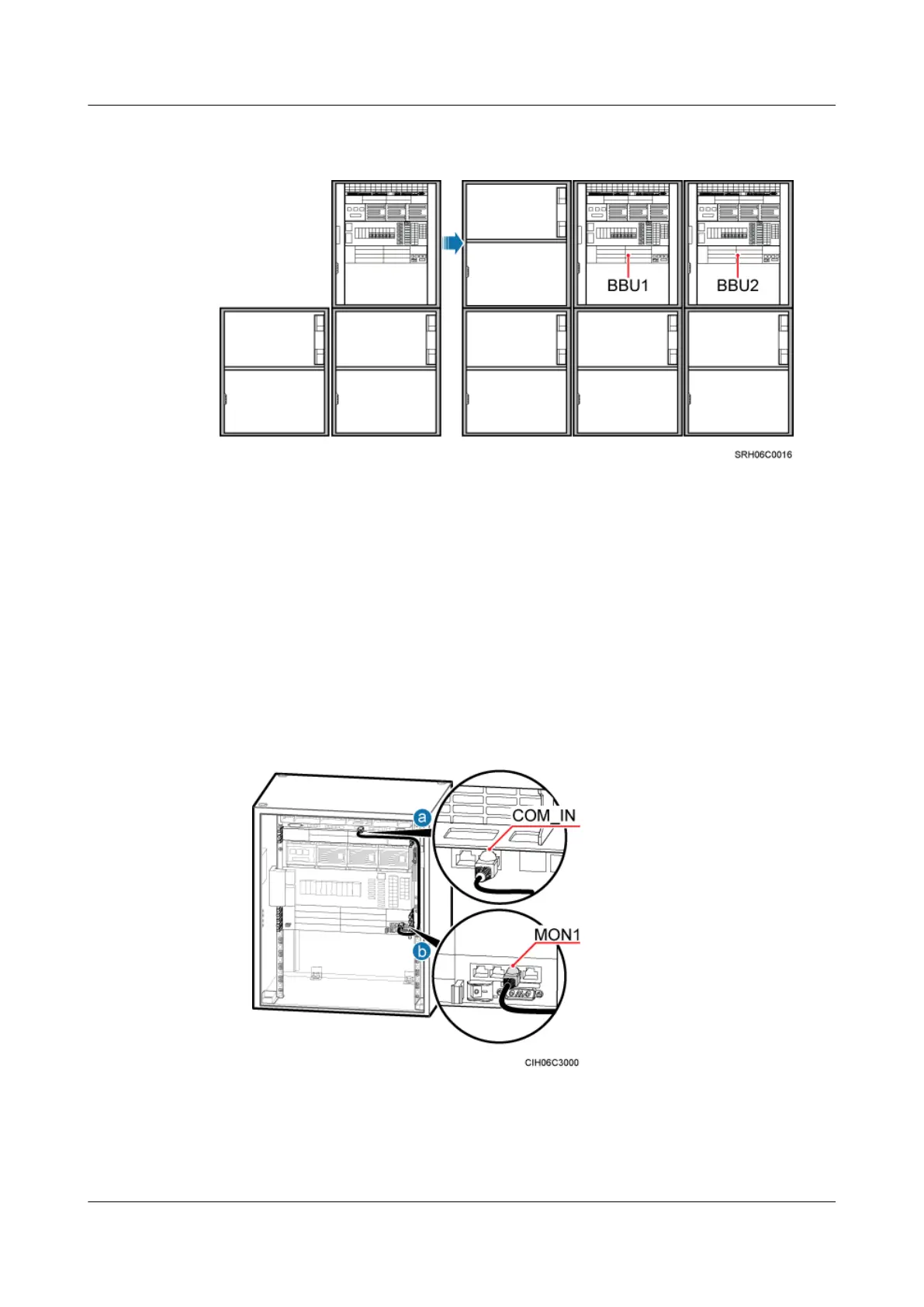

Figure 6-103 Expanding the configuration from one APM30H+two IBBS200Ds/IBBS200Ts
to two APM30Hs+four IBBS200Ds/IBBS200Ts
Procedure
Step 1 Install a monitoring signal cable between the CMUA and the BBU in an APM30H, as shown in
Figure 6-104.
1. Connect one end of the monitoring signal cable between the CMUA and the BBU to the
COM_IN port on the CMUA in the APM30H.
2. Connect the other end to the MON1 port on the UPEU in the BBU.
Figure 6-104 Installing a monitoring signal cable between the CMUA and the BBU in an
APM30H
Step 2 Install a monitoring signal cable between the cascaded CMUAs in the two IBBS200Ds or
IBBS200Ts, as shown in Figure 6-105.
