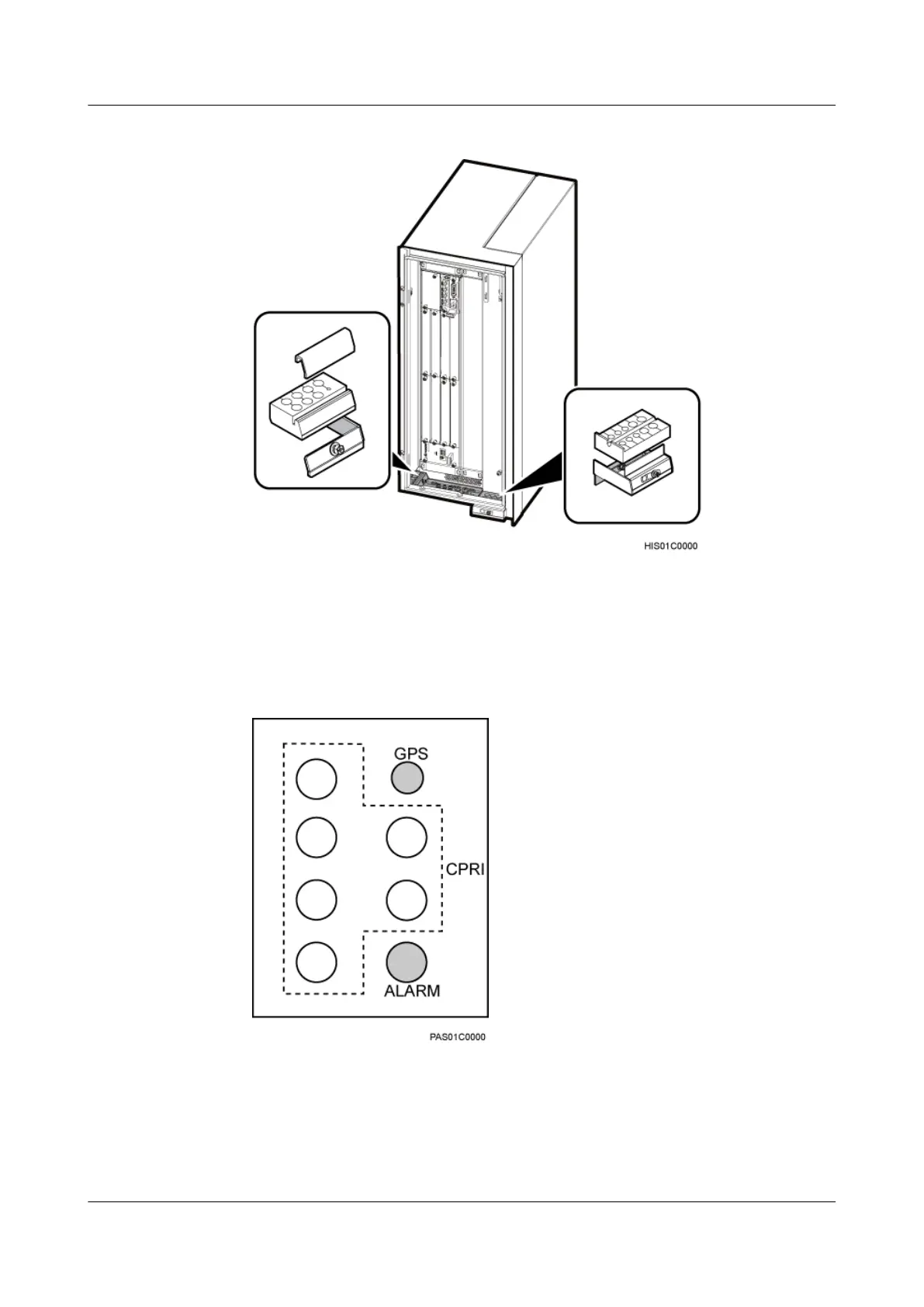

Figure 10-14 Positions of cable outlet modules
l There are multiple cable holes in a cable outlet module at the bottom of an OMB. Figure
10-15 shows the cable holes in the left cable outlet module, and Figure 10-16 shows the
cable holes in the right cable outlet module.
Figure 10-15 Cable holes in the left cable outlet module
