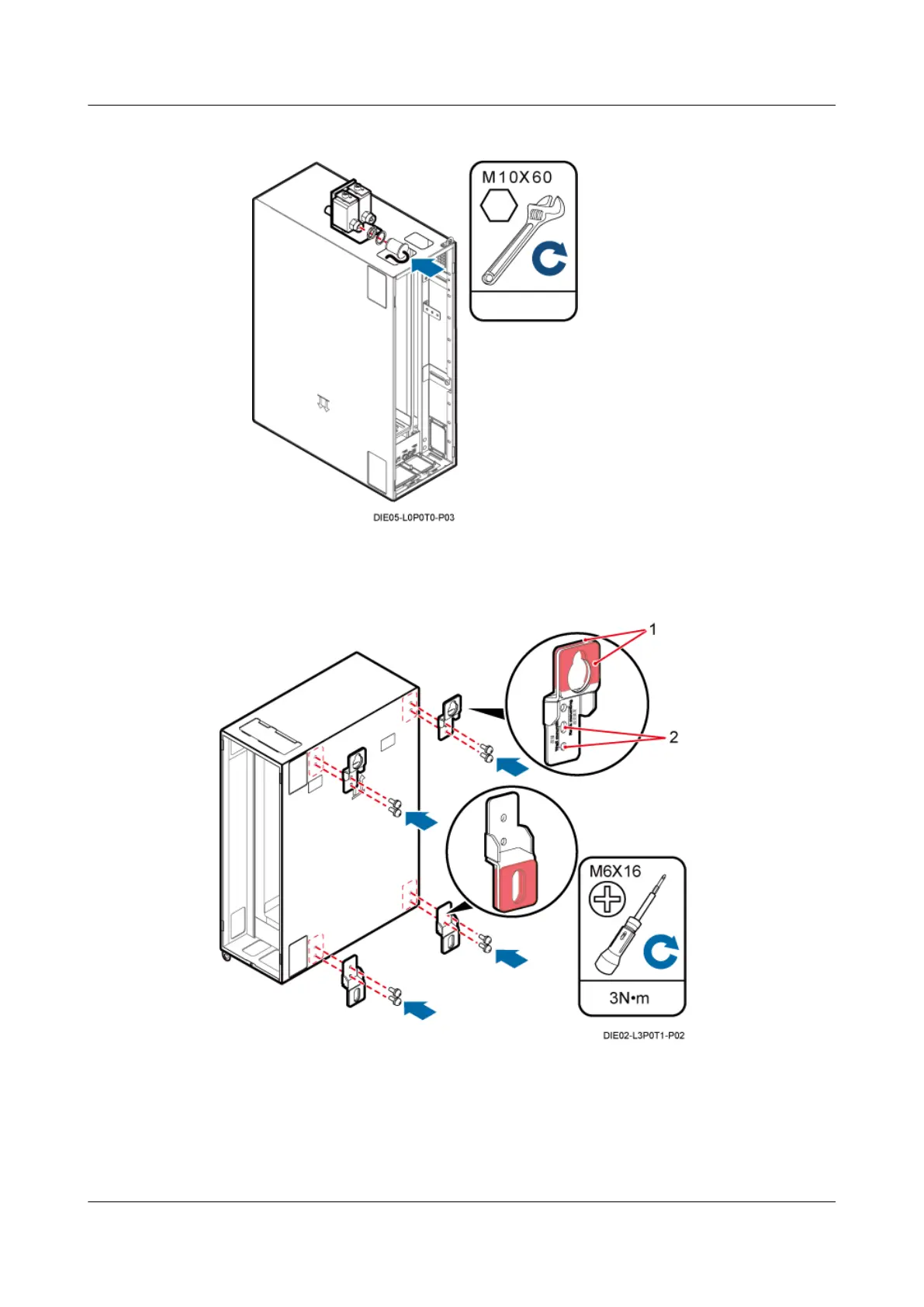

Figure 13-14 Installing the GPS clock signal cable on the GPS surge protector
Step 3 Install the mounting ears on the IMB03, as shown in Figure 13-15.
Figure 13-15 Installing mounting ears
(1) Insulation washer
(2) Installation positions for bolts
Step 4 Use a level to check that the two anchor holes on the marking template are on a horizontal plane,
place the marking template against the wall, and then use a marker to mark anchor points, as
shown in Figure 13-16.
DBS3900 (Ver.B)
Installation Guide 13 Indoor Scenario (BBU Installed in an IMB03)
Issue 06 (2011-09-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
444
