CAUTION
After dismantling the expansion bolt assembly, ensure that the top of the expansion tube
is on the same level as the floor.

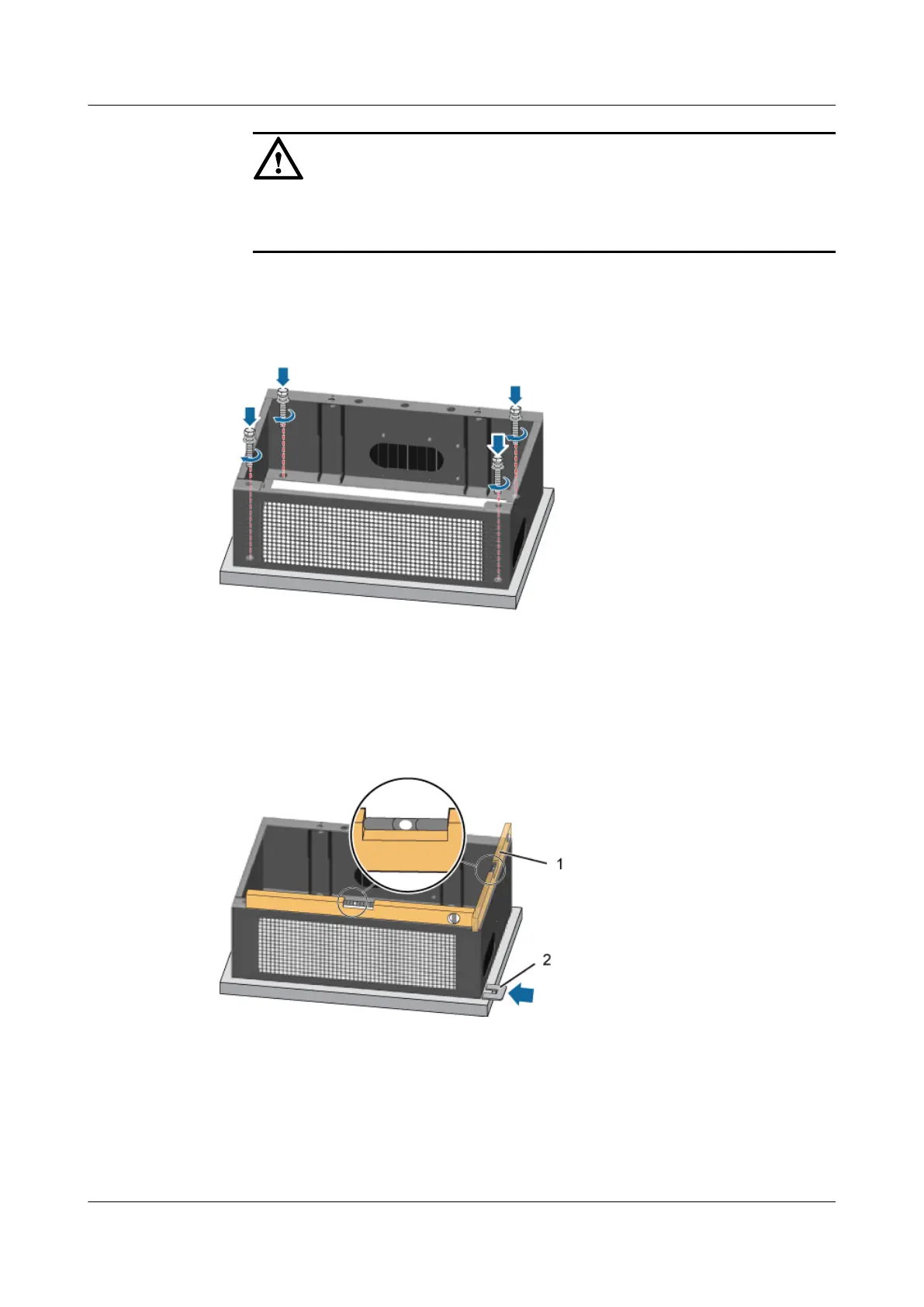

Step 3 Align the base, and then install the bolt with the spring washer and flat washer, as shown in
Figure 6-5.
Figure 6-5 Aligning the base
Step 4 Use a level to check the base level. If the base is not level, use adjusting pads to adjust the base
level, as shown in Figure 6-6.
Figure 6-6 Adjusting the base level
(1) Level
(2) Adjusting pad
Step 5 Use a torque wrench to tighten the bolts with the tightening torque of 45 N·m, as shown in
Figure 6-7.
DBS3900 (Ver.B)
Installation Guide
6 Outdoor Scenario with AC Power Supply (BBU Installed
in an APM30H)
Issue 06 (2011-09-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
33
