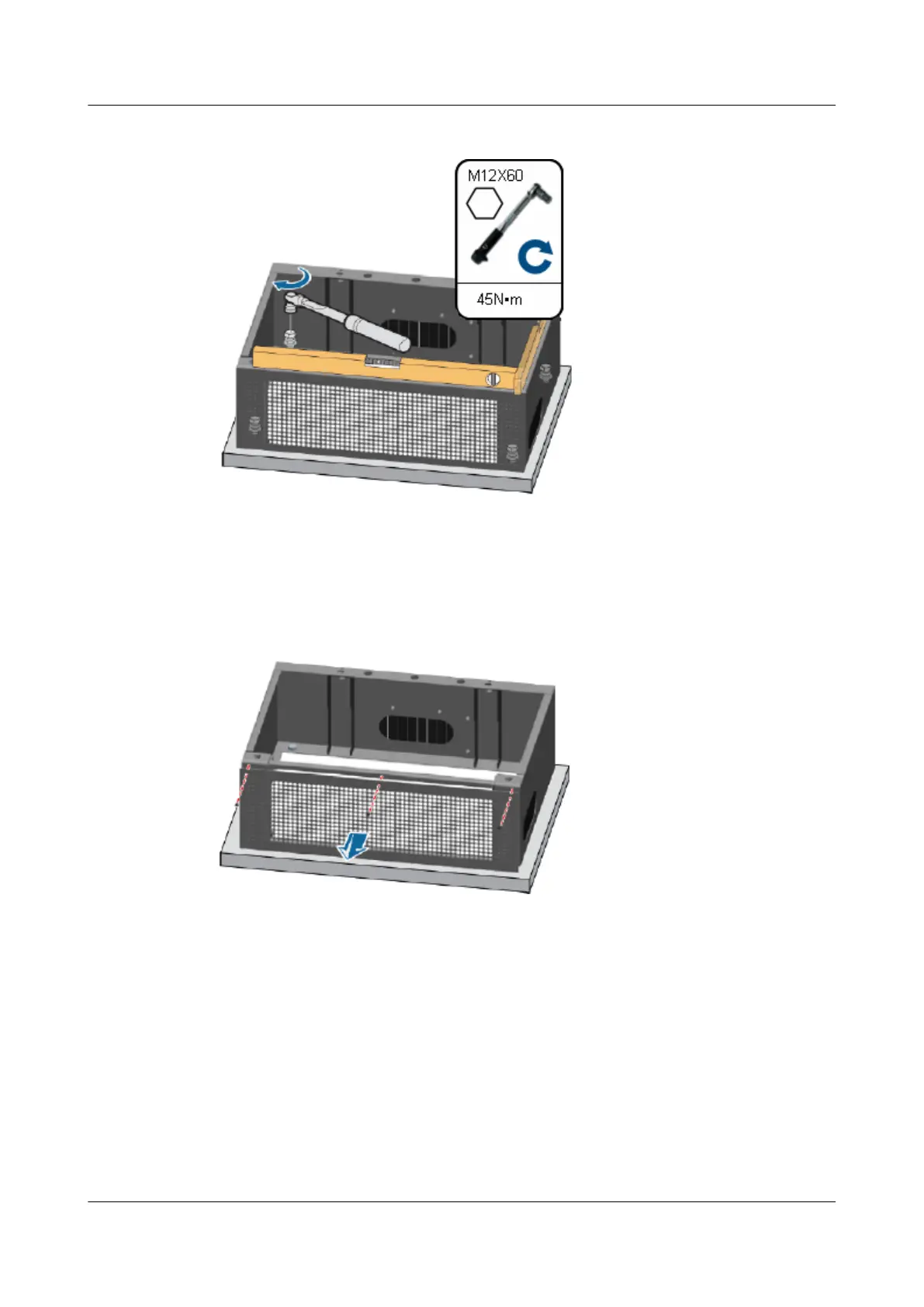

Figure 6-7 Tightening the bolts
Step 6 Loosen the three screws on the front cover plate of the base, and then remove the front cover
plate, as shown in Figure 6-8.
Figure 6-8 Removing the front cover plate
Step 7 Remove the baffle plate from either side of the base (by taking the left side as an example), as
shown in Figure 6-9.
DBS3900 (Ver.B)
Installation Guide
6 Outdoor Scenario with AC Power Supply (BBU Installed
in an APM30H)
