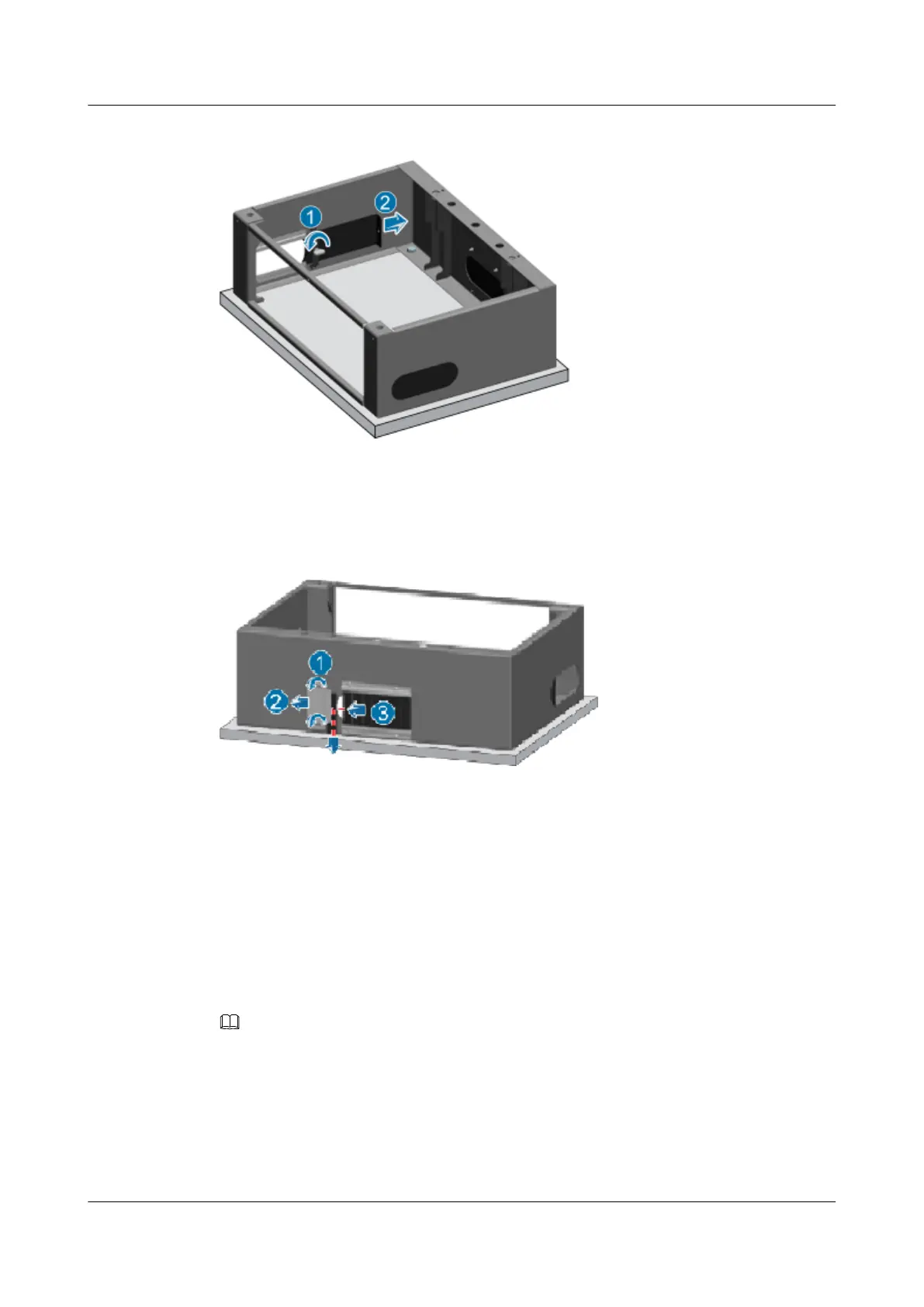

Figure 6-9 Removing the baffle plate
Step 8 Remove the baffle plate from the back of the base, as shown in Figure 6-10.
Figure 6-10 Removing the baffle plate from the back
----End
Installing a Cabinet on a Base
This section describes the procedure and precautions to be taken for installing a cabinet on a
base after the base is installed on the concrete floor.
Context
NOTE
The following figures are based on the IBBS200D. The procedure for installing the APM30H, TMC11H,
or IBBS200T is the same as that for installing the IBBS200D.
Procedure
Step 1 Remove the four plastic screws from the top of the cabinet, and then install the lifting lugs in
the corresponding holes, as shown in Figure 1.
DBS3900 (Ver.B)
Installation Guide
6 Outdoor Scenario with AC Power Supply (BBU Installed
in an APM30H)
Issue 06 (2011-09-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
35
