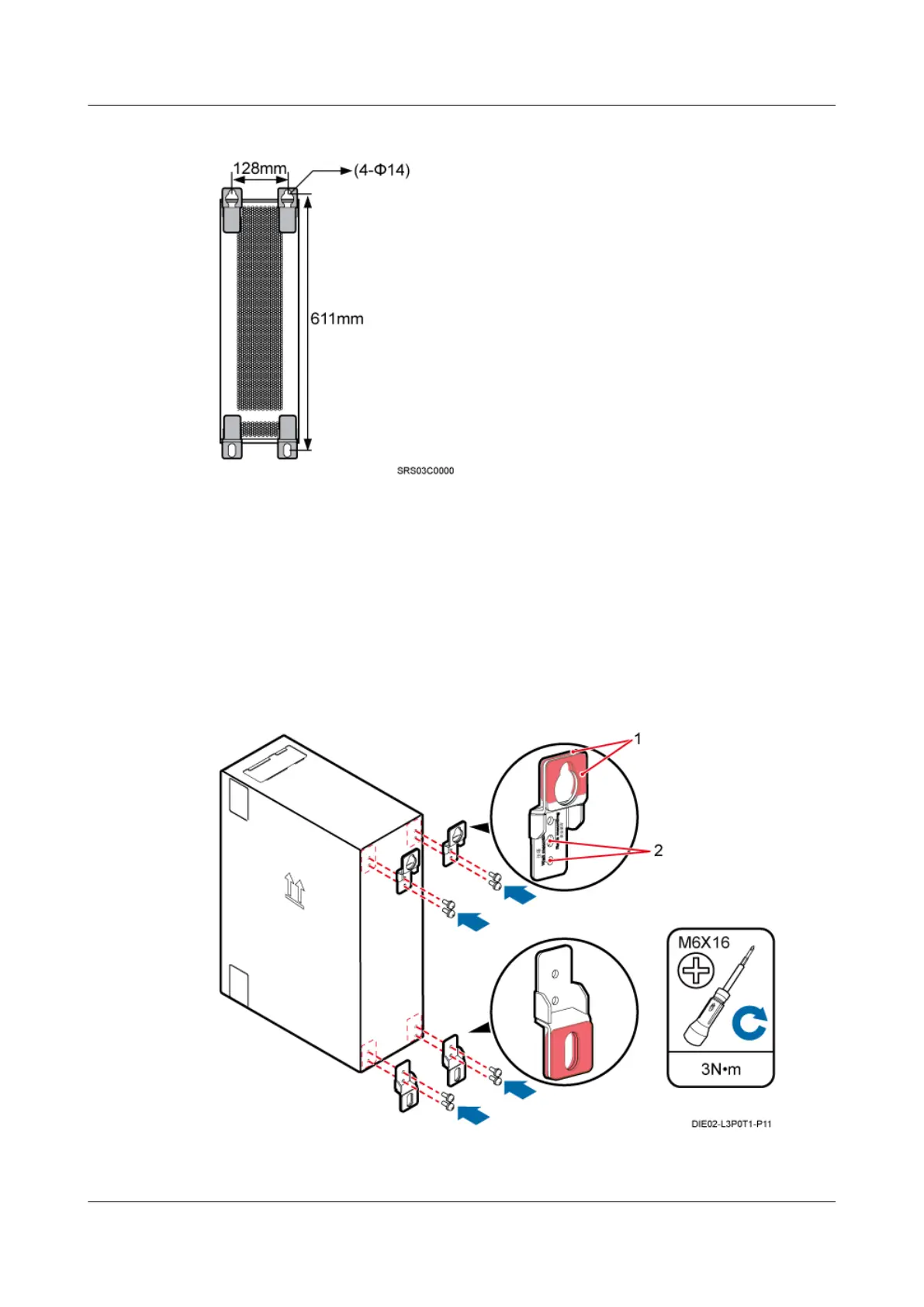

Figure 13-20 Spacing between the holes of the mounting ears
Procedure
Step 1 Remove the protection plate from the bottom of the IMB03, as shown in Installing the IMB03
on the Wall (Side-Mounted).
Step 2 Install the GPS surge protector, as shown in Installing the IMB03 on the Wall (Side-
Mounted).
Step 3 Install the mounting ears on the IMB03, as shown in Figure 13-21.
Figure 13-21 Installing mounting ears
(1) Insulation washer
(2) Installation positions for bolts
