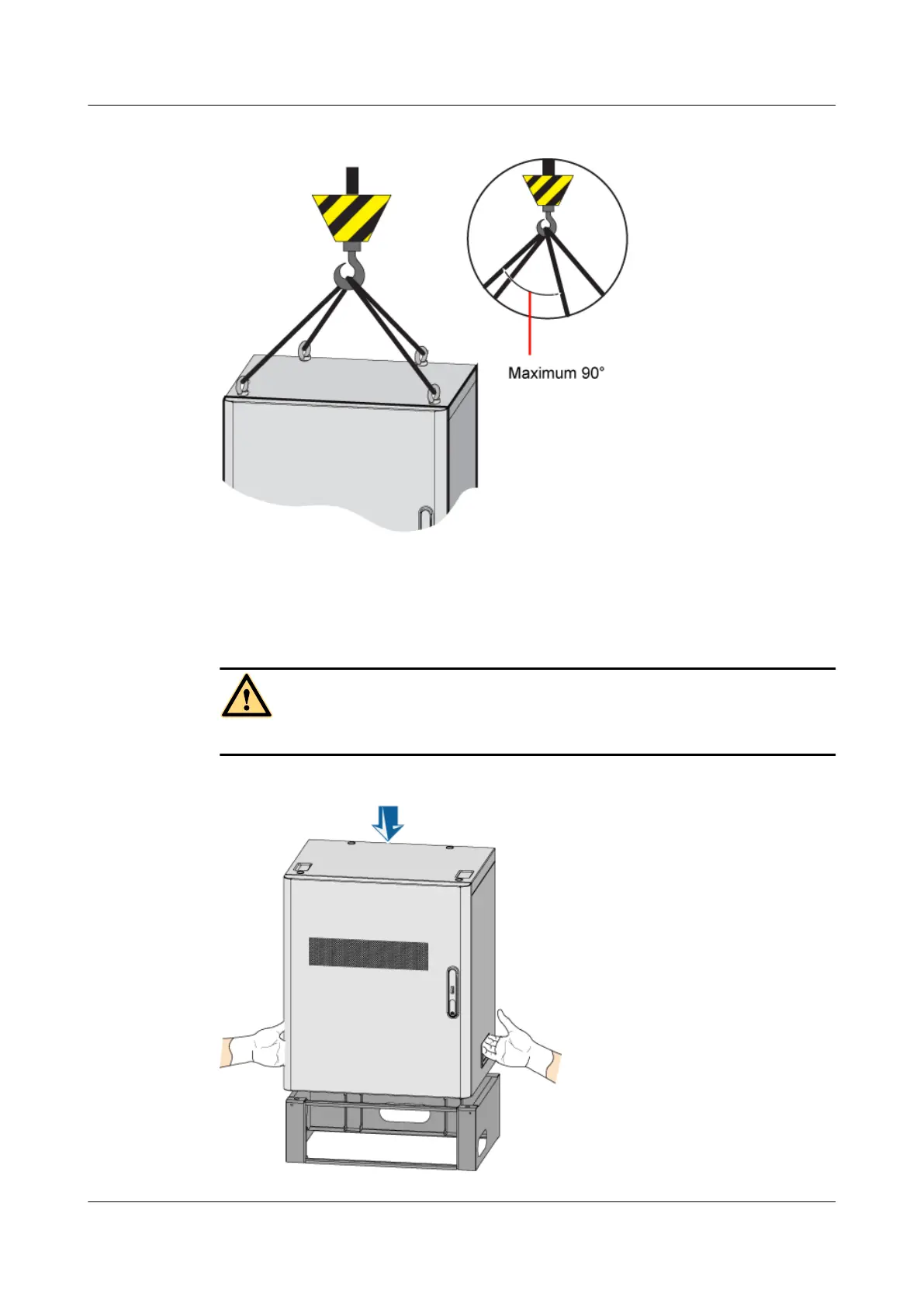

Figure 6-12 Installing the ropes
Step 3 Lift the cabinet onto the base, and then gently push the cabinet to align the cabinet with the base,
as shown in Figure 6-13.
WARNING
At least two installation engineers are required for lifting the cabinet.
Figure 6-13 Lifting a cabinet onto a base
DBS3900 (Ver.B)
Installation Guide
6 Outdoor Scenario with AC Power Supply (BBU Installed
in an APM30H)
Issue 06 (2011-09-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
37
