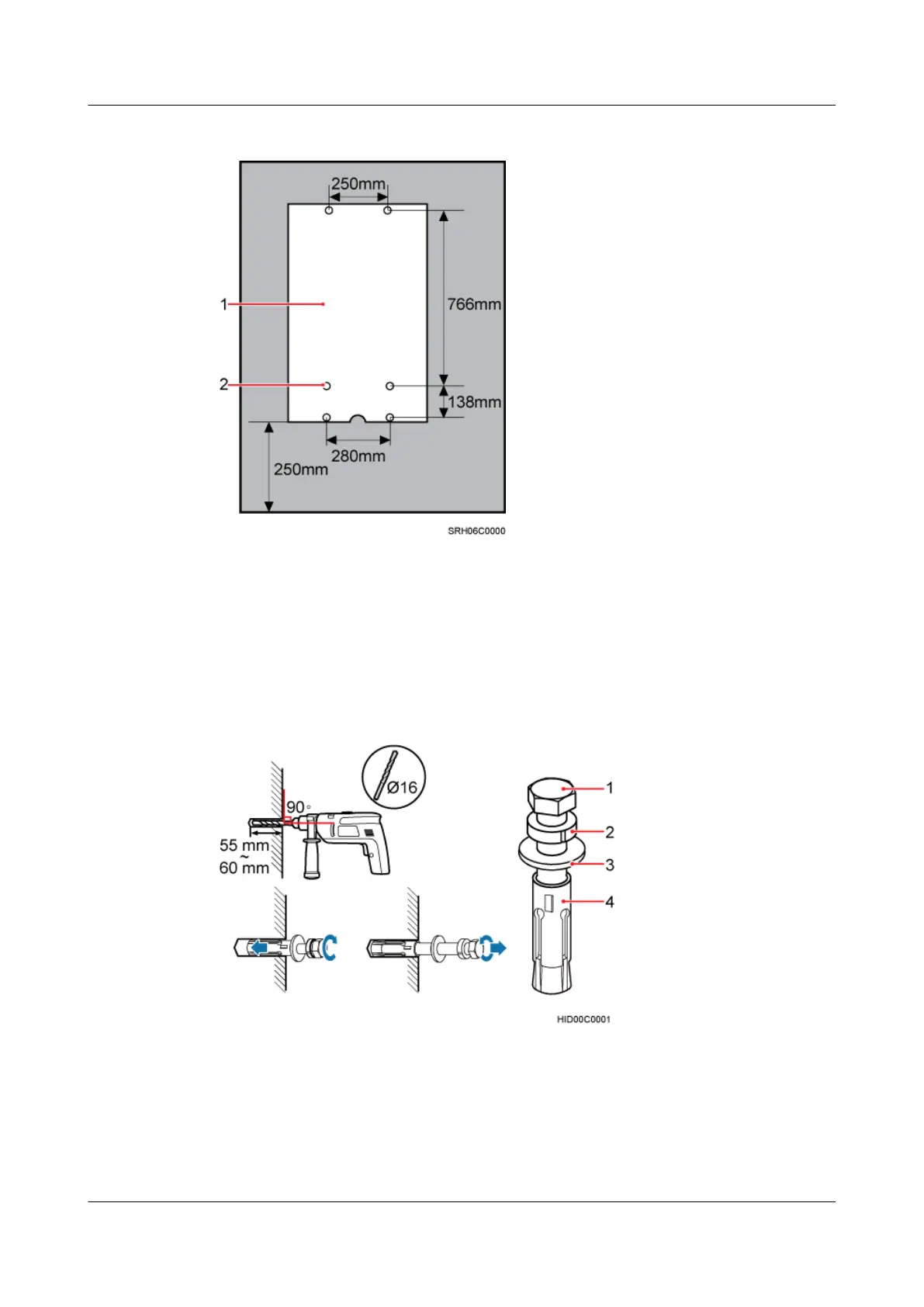

Figure 14-22 Marking mounting holes
(1) Marking template (2) Mounting holes
Step 2 Drill holes at the anchor points, and then install expansion bolt assemblies, as shown in Figure
14-23.
Figure 14-23 Installing an expansion bolt
(1) Bolt
(2) Spring washer (3) Flat washer (4) Expansion tube
Step 3 Align the holes on the trapezoidal rack with the four lower mounting holes on the wall, and then
use four M12×30 bolts to secure the trapezoidal rack, as shown in Figure 14-24.
DBS3900 (Ver.B)
Installation Guide
14 Indoor Scenario with DC Power Supply (BBU Installed
Indoors and RRU Powered Outdoors)
Issue 06 (2011-09-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
517
