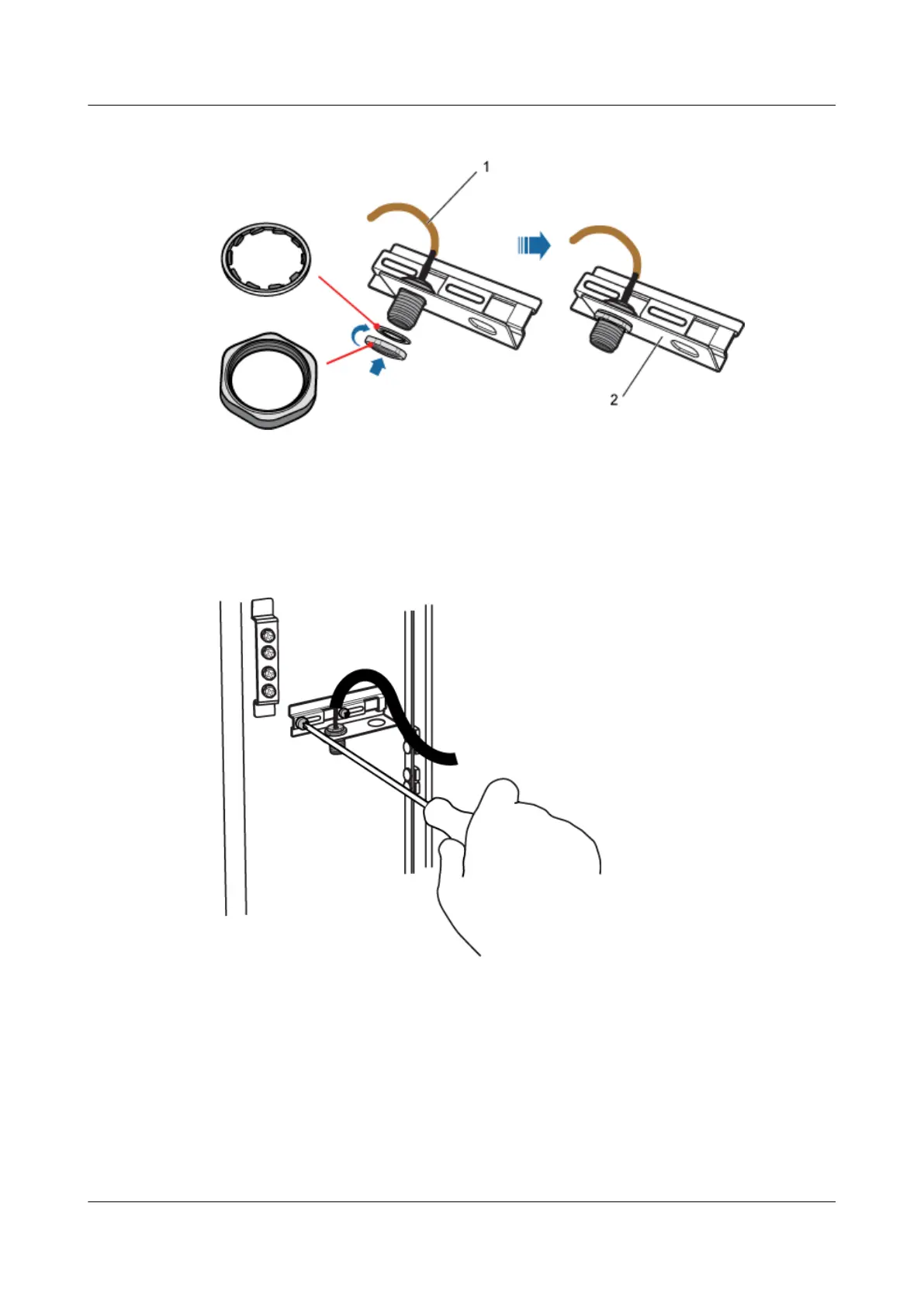

Figure 6-60 Installing the GPS clock signal cable on the support
(1) GPS clock signal cable (2) Support
Step 5 Install the support on the left of the cabinet, as shown in Figure 6-61.
Figure 6-61 Installing the support on the cabinet
Step 6 Connect the GPS clock signal cable to the GPS port on the USCU, as shown in Figure 6-62.
