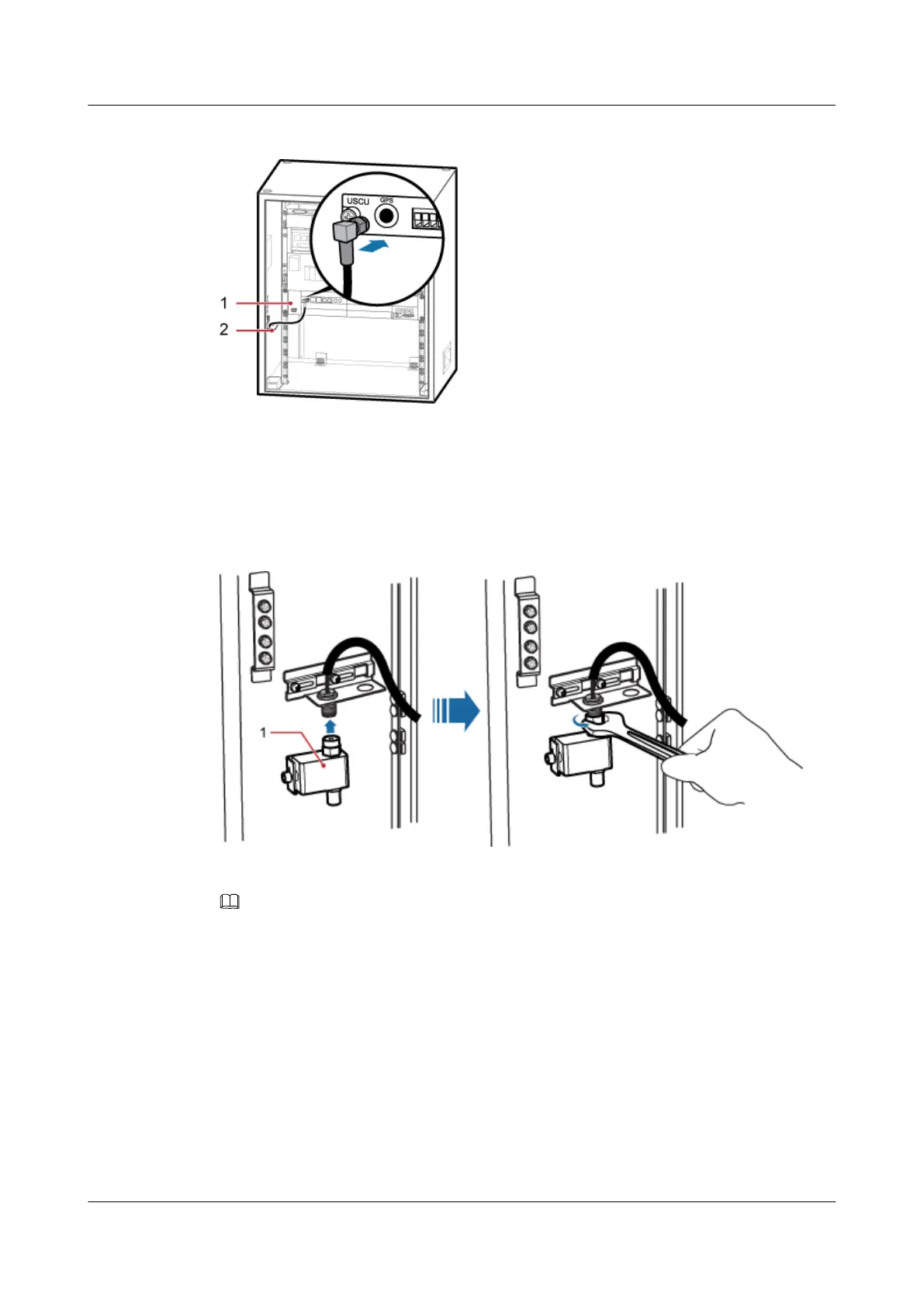

Figure 6-62 Installing the GPS clock signal cable on the USCU
(1) BBU (2) Support for the GPS
Step 7 Install the GPS surge protector, as shown in Figure 6-63.
Figure 6-63 Installing the GPS surge protector
(1) GPS surge protector
NOTE
The figure of the GPS surge protector is for reference only. The actual appearance may be different.
Step 8 Install the GPS jumper, as shown in Figure 6-64.
DBS3900 (Ver.B)
Installation Guide
6 Outdoor Scenario with AC Power Supply (BBU Installed
in an APM30H)
