3.1 Water Sensor
This describes the water sensor. The model of the configured water sensor is YW517B. This
water sensor is of the current type.
Exterior of the Water Sensor
Figure 3-1 shows the exterior of the YW517B water sensor.

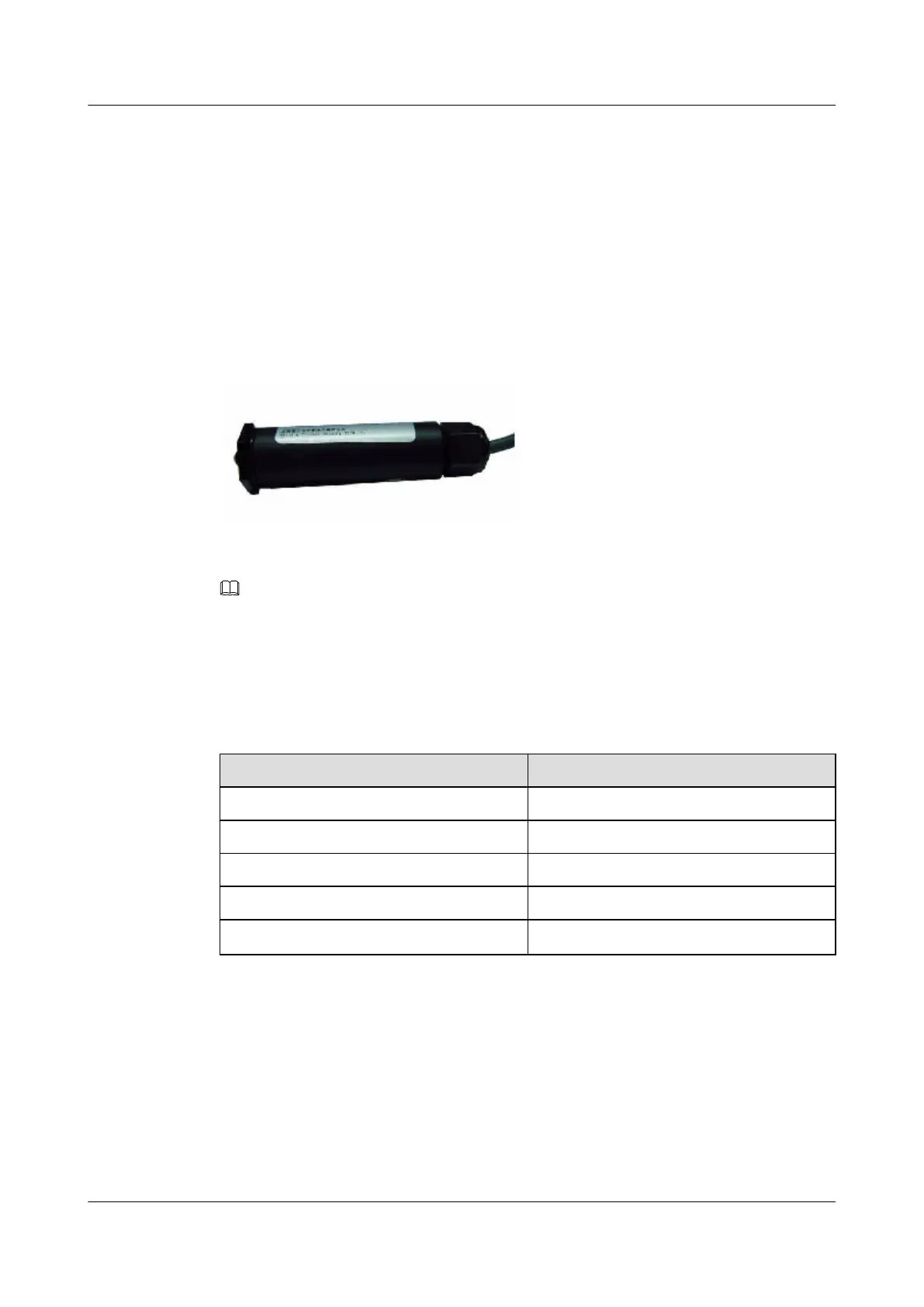

Figure 3-1 Exterior of the YW517B water sensor
NOTE
The cable provided along with the YW517B water sensor is 2.7 m [8.86 ft] long.
Technical Specifications of the Water Sensor
Table 3-1 lists the technical specifications of the YW517B water sensor.
Table 3-1 Technical specifications of the YW517B water sensor
Item
Specification
Power supply voltage 12 V DC ± 5%
Current output when liquid is not detected < 80 uA
Current output when liquid is detected 10 mA to 15 mA
Output signal type Current
Working temperature
-20
o
C [-4
o
F] to +70
o
C [158
o
F]
3.2 Smoke Sensor
This describes the smoke sensor. The model of the configured smoke sensor is JTY-GD-01K.
This smoke sensor features a photoelectric sensing design and is of the voltage type.
Exterior of the Smoke Sensor
Figure 3-2 shows the exterior of the JTY-GD-01K smoke sensor.
