Step 5 Install the protection grounding cable of the EMU, and then connect the protection grounding
cable to the grounding bar in the equipment room.
Step 6 Install the RS-485 serial cable and power cable.
1. Connect one end of the RS485 serial cable to the RS485 port of the EMU and the other end
to the BTS/NodeB. Figure 4-8 shows the RS485 serial cable.

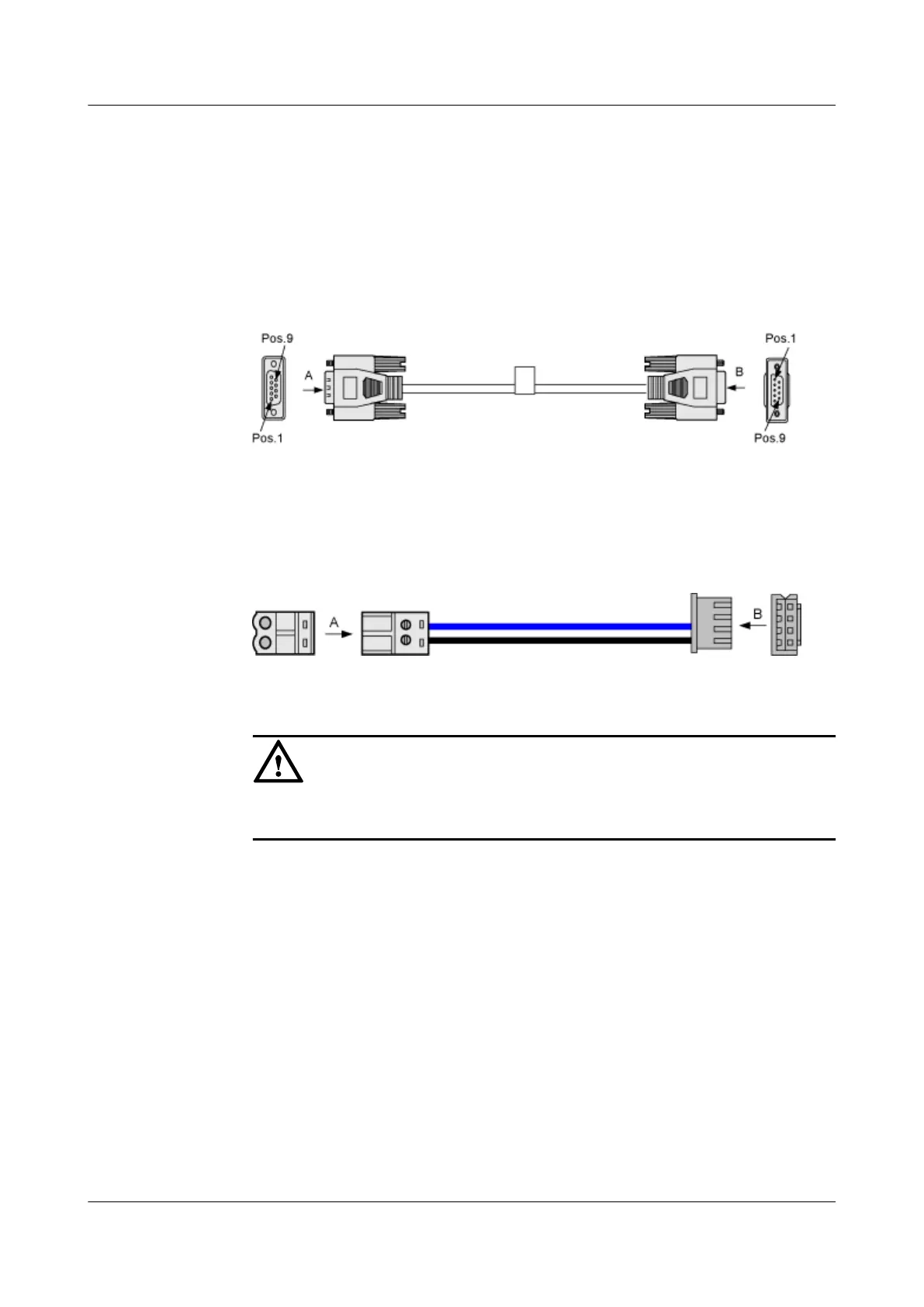

Figure 4-8 RS485 serial cable
2. Connect the A end of the EMU power cable to the PWR+/- port on the EMU and the other
end to the power distribution equipment. Figure 4-9 shows the power cable.
Figure 4-9 Power cable
CAUTION
If the B end of the EMU power cable does not match the port of the power distribution
equipment, replace the connector on the B end.
Step 7 Connect the sensors to the EMU.
----End
