Table 3-4 Technical specifications of the MC-760T infrared sensor
Item Specification
Power supply voltage 12 V DC ±5%
Working current 30 mA
Monitoring range Front: ±18 m [59.06 ft]
45
o
C range: ±25 m [82.02 ft]
Output type Dry contact point
Working temperature
-10
o
C [14
o
F] to 55
o
C [131
o
F]
3.4 Door Status Sensor
This describes the doors status sensor. The model of the configured door status sensor is
AGX105F (outdoor) or HO-03A (indoor).
Exterior of the Door Status Sensor
Figure 3-4 shows the exterior of the AGX105F door status sensor.

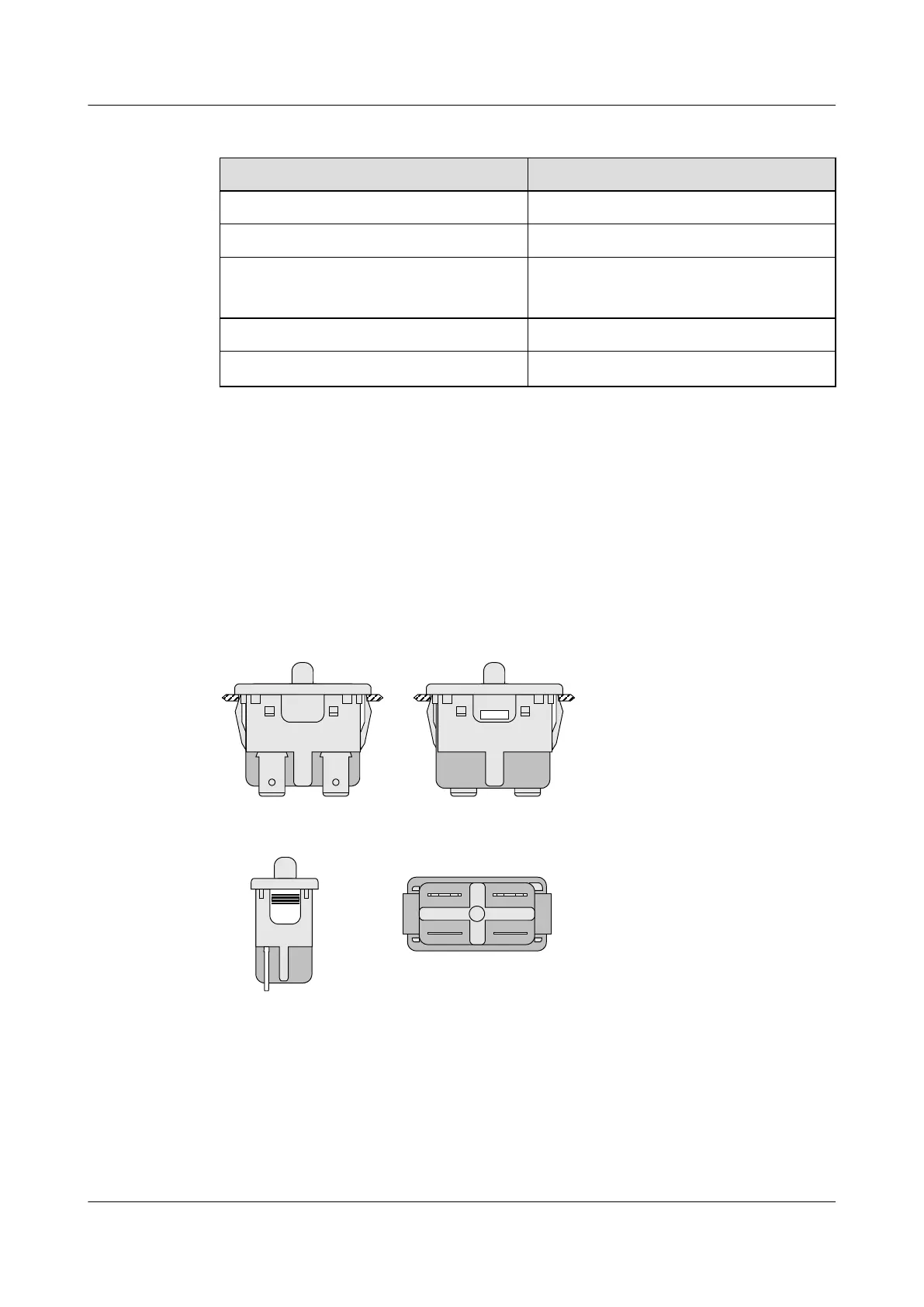

Figure 3-4 Exterior of the AGX105F door status sensor
Surface
A
Surface B
Side
Bottom
sectional view
3
4
Figure 3-5 shows the exterior of the HO-03A door status sensor.
