FusionModule5000 Smart Modular Data Center
Maintenance Guide (ECC800)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

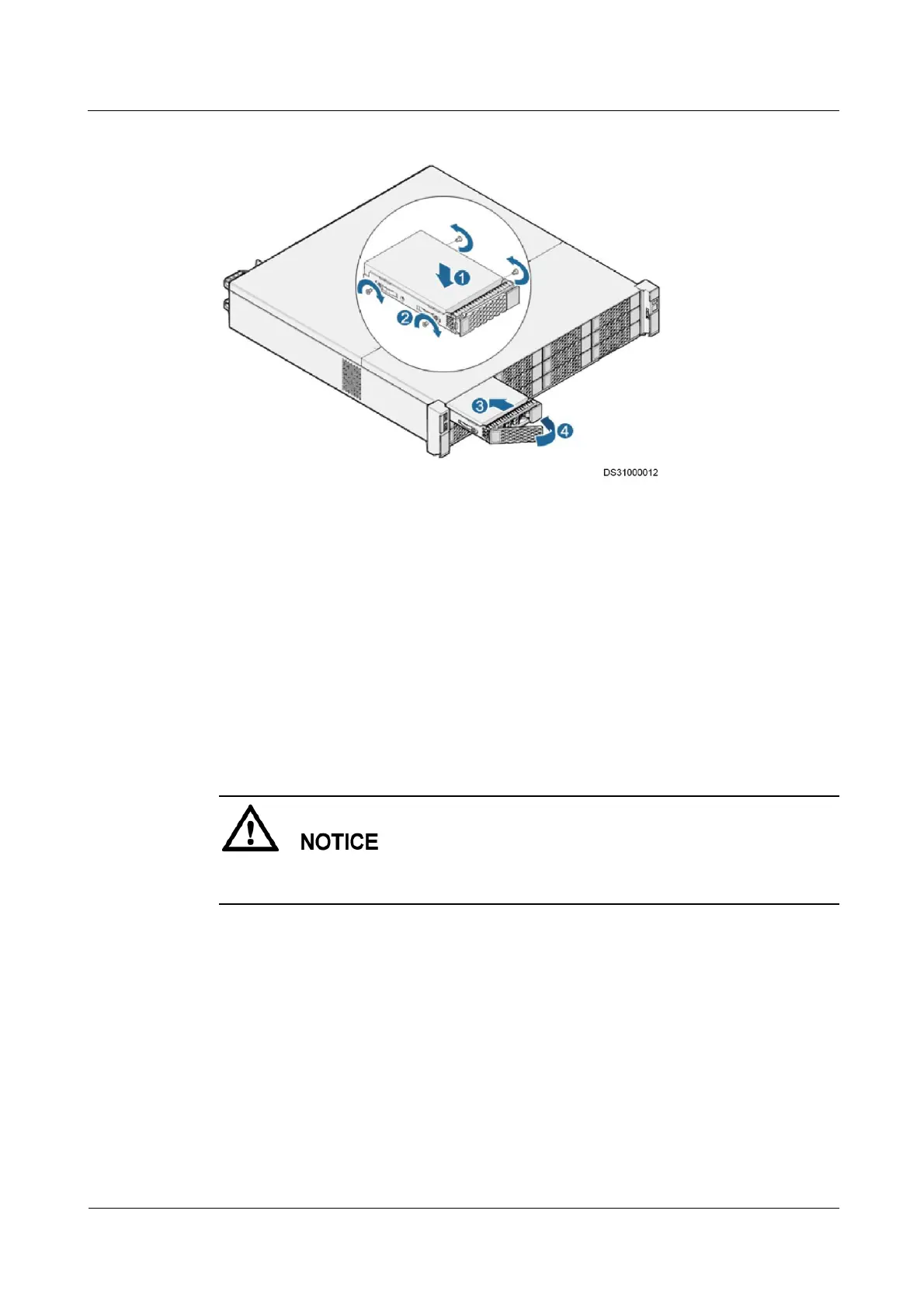

Figure 5-60 Installing a new hard disk
Step 4 Observe the hard disk indicator to check whether the hard disk works properly.
----End
Follow-up Procedure
If the hard disk works abnormally, contact Huawei technical support.
5.5.5 Replacing a Rack Environment Unit
Prerequisites
Before disconnecting cables from the rack environment unit, label the cables based on the
corresponding ports.
Tool Phillips screwdriver, labels, and marker
Materials: a reserved undamaged and undeformed rack environment unit of the
appropriate model
Procedure
1. Label each cable based on the corresponding ports on the rack environment unit.
2. Disconnect cables from the rack environment unit.
3. Remove the screws from the mounting ears on both sides of the rack environment unit
and remove the failure rack environment unit.
4. Secure the reserved rack environment unit in the original position using four screws.
5. Connect cables to the reserved rack environment unit based on the cable labels.
