FusionModule5000 Smart Modular Data Center
Maintenance Guide (ECC800)
5 Parts Replacement
Issue 01 (2019-03-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
142

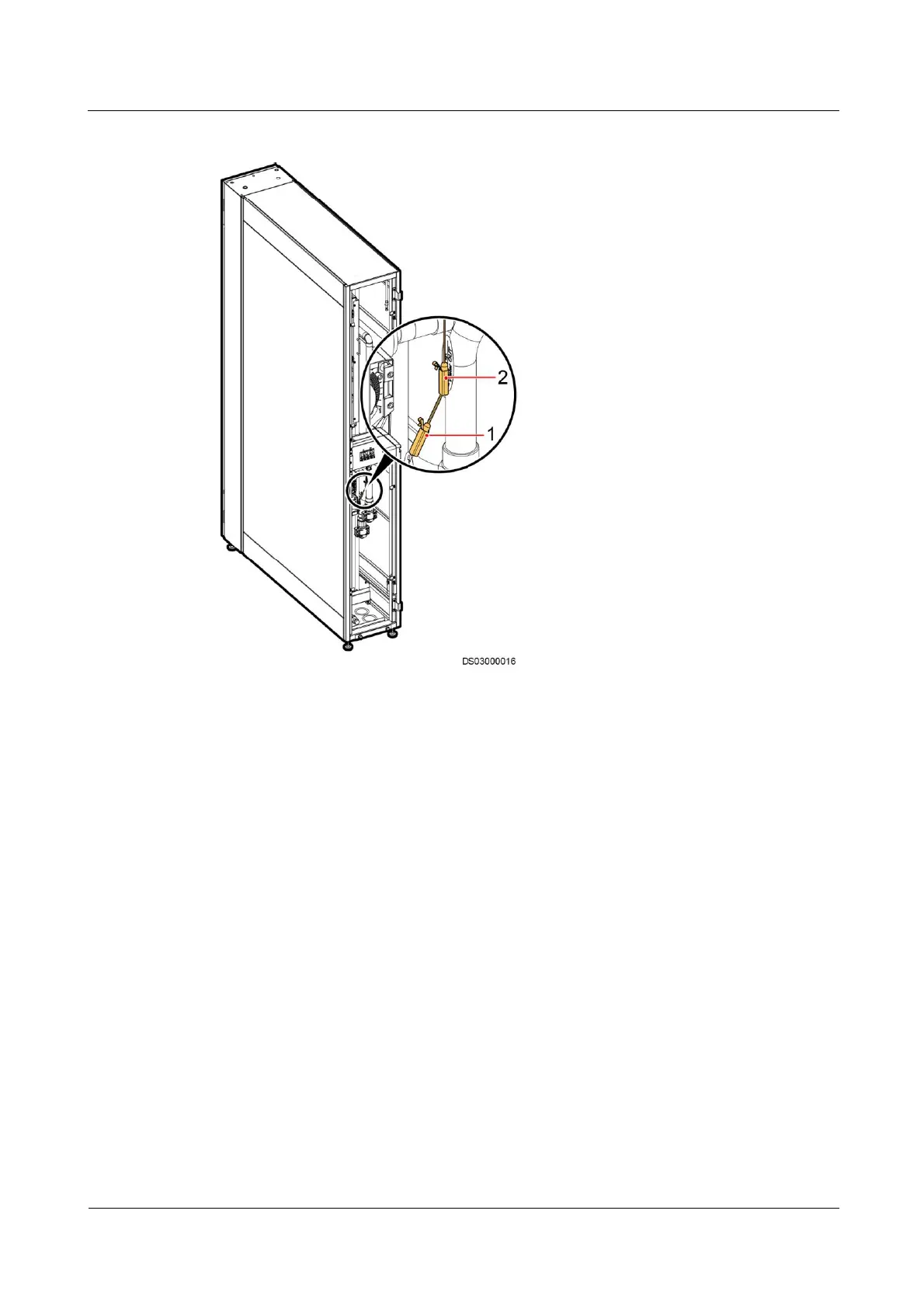

Figure 5-39 Position of water inlet and outlet temperature sensors
(1) Water inlet temperature sensor
(2) Water outlet temperature sensor
Step 4 Remove the waterproof connector from the sensor cable.
Step 5 Insert the probe of the new temperature sensor into the socket.
Step 6 Reconnect the waterproof connector to the sensor cable, bind the cable, and wrap thermal
insulation foam.
Step 7 Install the air filters. Close and lock the rear door.
----End
5.2.11 Replacing a Rectifier
Prerequisites

The rectifier needs to be replaced.

A spare and functional rectifier is available.
Context
Preparation: maintain from the rear door, and power off the device.
