FusionModule5000 Smart Modular Data Center
Maintenance Guide (ECC800)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Procedure
Step 1 Open the rear door.
Step 2 Remove the air filters.
Step 3 Push up the buckle button on the rack, as shown by (1) in Figure 5-40.
If the rectifier is blocked by cable X101 or X102, you can remove terminal X101 or X102 and
then reconnect it after the replacement is complete.

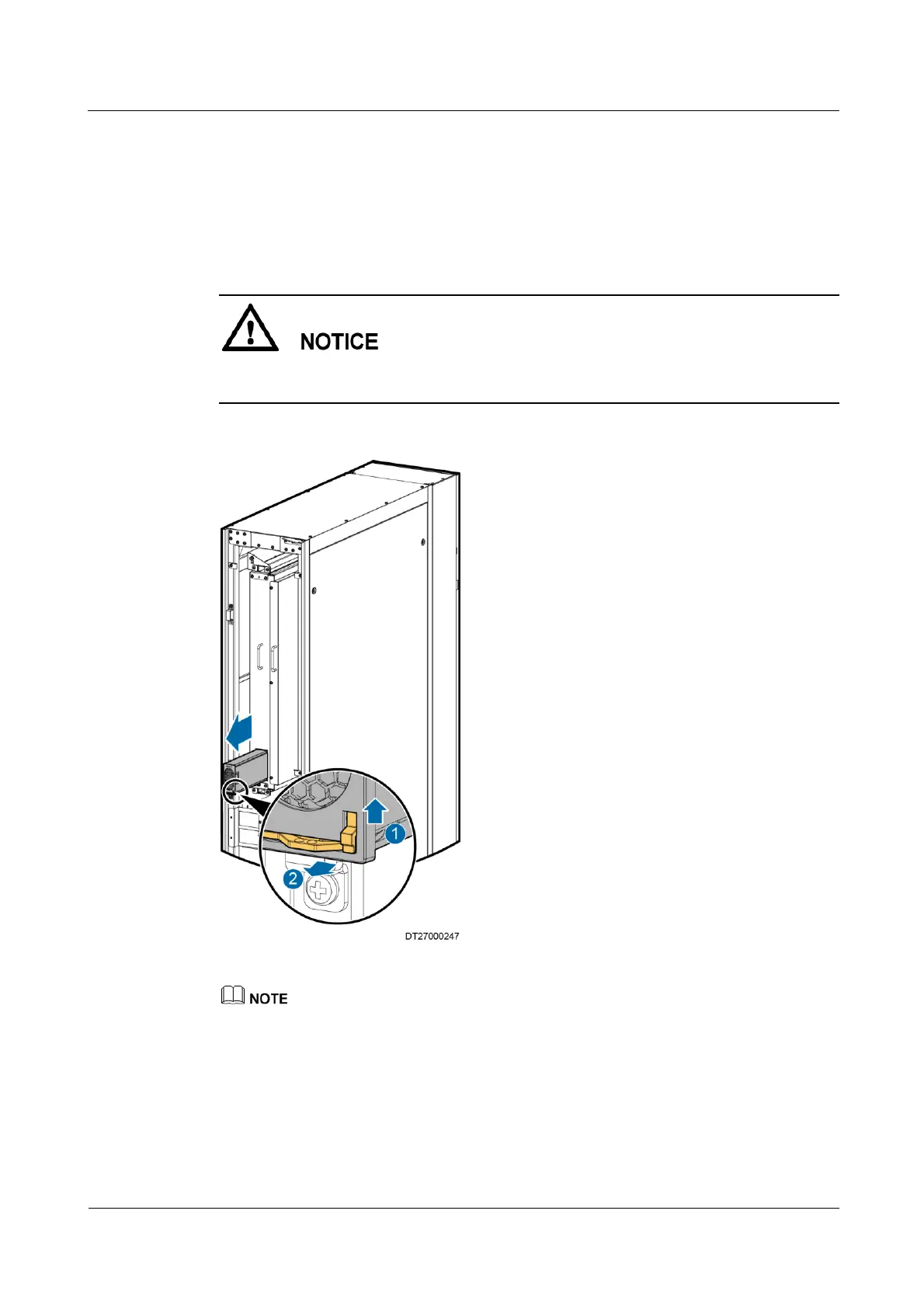

Figure 5-40 Replacing the rectifier
The figure is for NetCol5000-C030H6B2010020E1 only.
Step 4 Pull out the buckle, as shown by (2) in Figure 5-40, and then pull out the rectifier module
from the plug-in frame.
