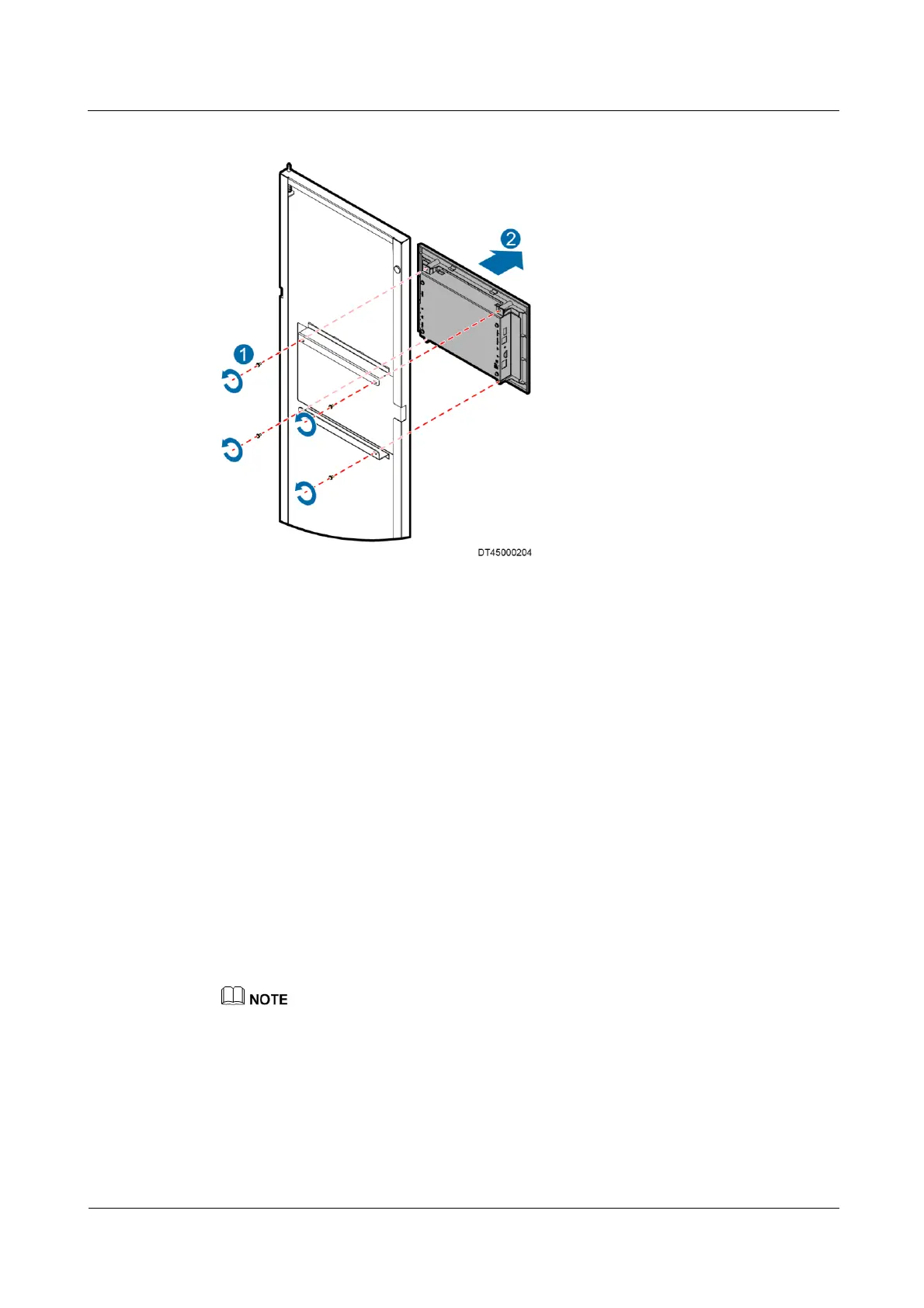

Figure 5-46 Replacing the controller panel
1. Remove the four screws from the controller panel using a Phillips screwdriver, as shown
by (1) in Figure 5-46.
2. Pull out the controller panel, as shown by (2) in Figure 5-46.
Step 4 Install the new controller panel in the original position on the front door in a reverse order of
Step 3.1 to Step 3.2.
Step 5 Connect the control signal cables to the controller panel. Close and lock the front door.
----End
5.3 Replacing an Aisle LED Light
Prerequisites
An aisle light emitting diode (LED) light needs to be replaced.
Power to the aisle LED light has been disconnected.
Spare LED lights of the same model are available and functional.
Obtain spare LED lights from the following channels:
1.
If no, contact Huawei technical support.
2.
Log in to http://www.lighting.philips.com.cn and purchase LED lights of the appropriate models.
