1. Clamp the power connector to the guide rail of the holder.
2. Install the holder cover using three M4x12 screw assemblies.

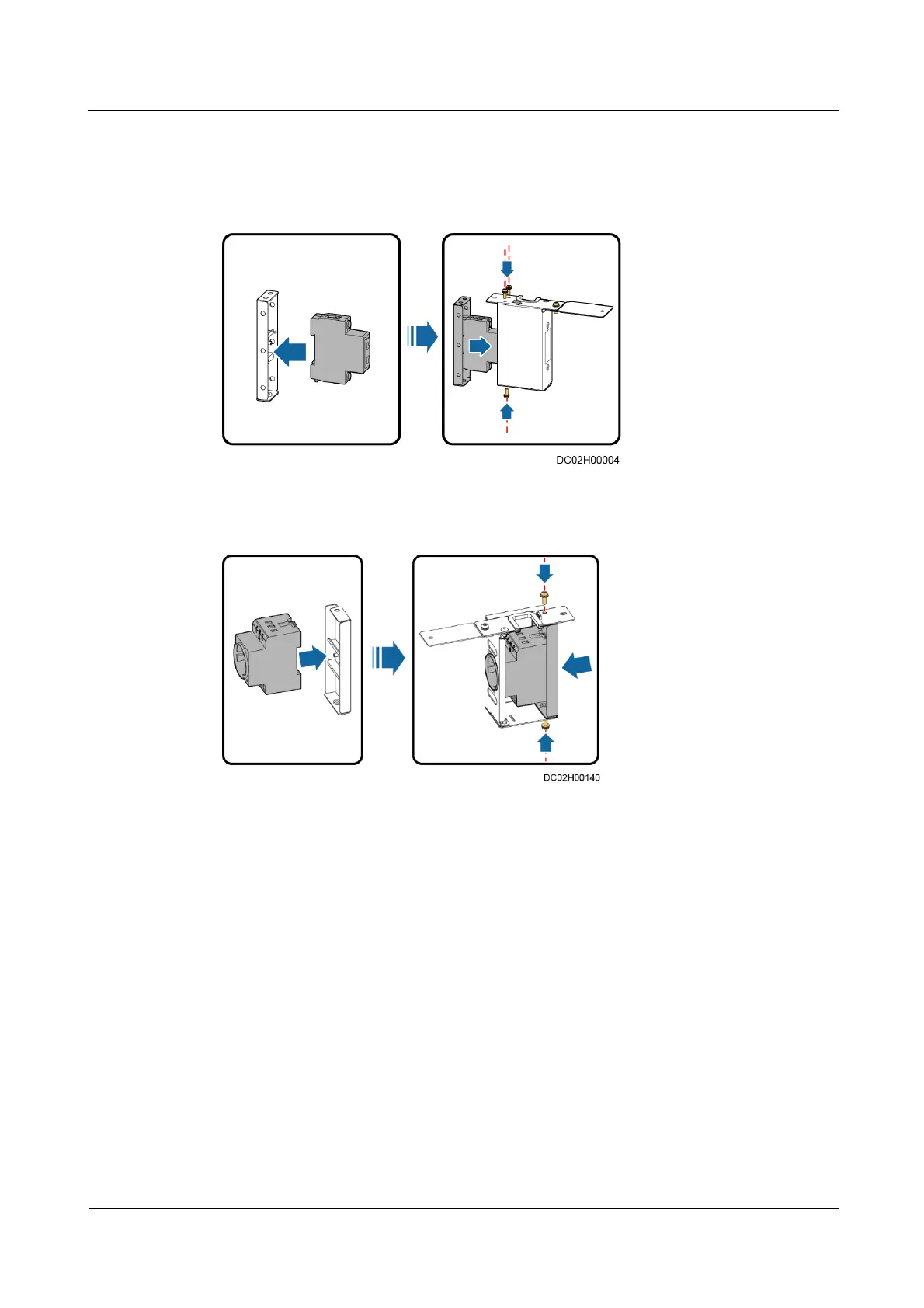

Figure 5-67 Assembling a pad power connector holder (BOM number: 14190892)
Figure 5-68 Assembling a pad power connector holder (BOM number: 14190242)
Step 5 Connect cables from the power connector to the AC actuator, and route the cables, as shown
in the following figures.
