Distance Between
Front and Rear
Mounting Rails

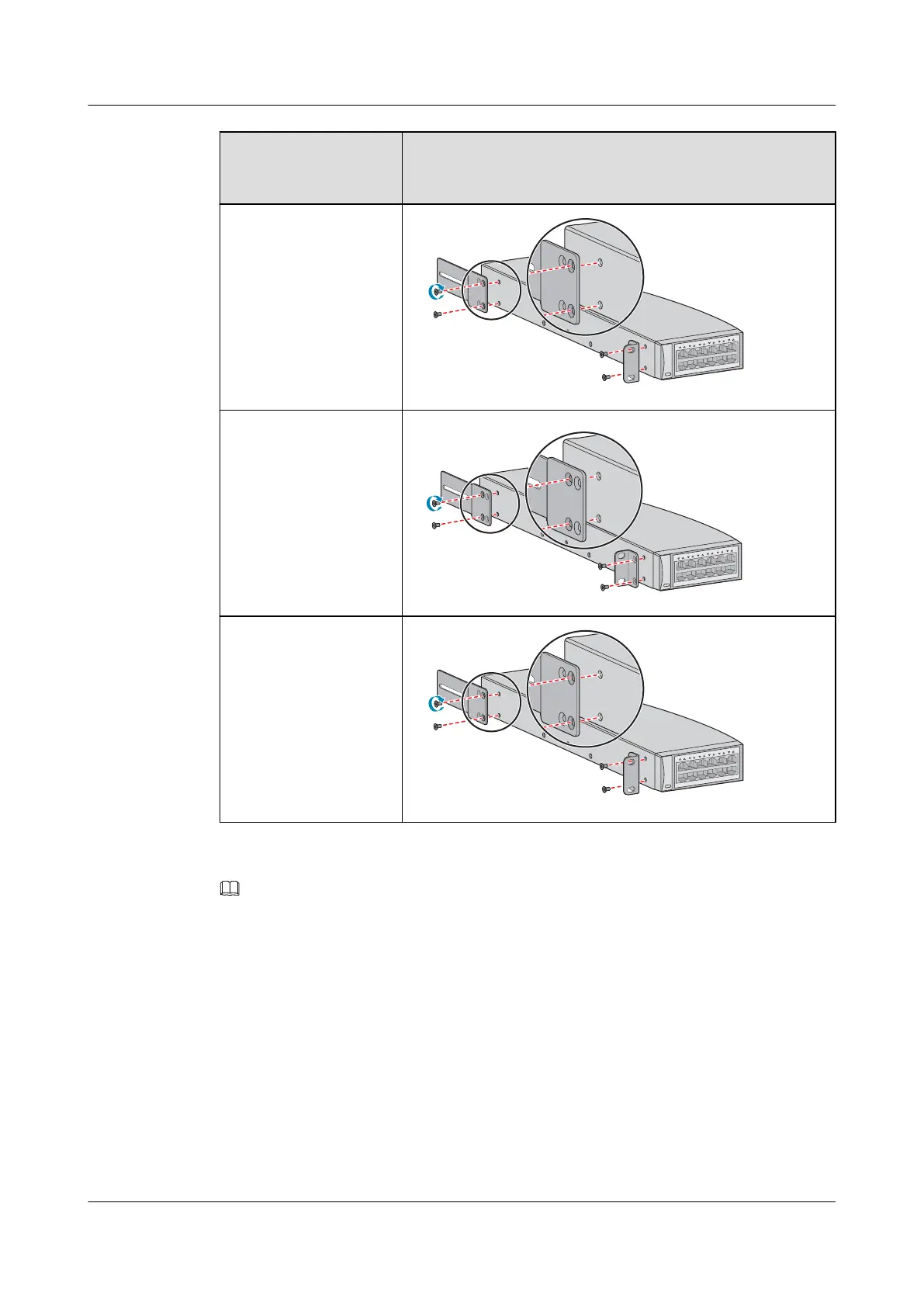

Mounting Bracket Installation
417-454 mm (16.4-17.9
in.)
475-520 mm (18.7-20.5
in.)
521-566 mm (20.5-22.3
in.)
NOTE
The front and rear mounting brackets listed in Table 5-5 are delivered with switches by default.
If the distance between the front and rear mounting rails in a cabinet is out of the ranges listed in Table
5-5, use a tray together with the front mounting brackets. To install your switch in a DC cabinet (1000
mm or 1200 mm deep), separately purchase rear mounting brackets (part number: 21240537) dedicated
to a DC cabinet.
Step 4 Install floating nuts on the mounting rails of the cabinet.
1. Determine the installation position of the switch and use a flat-head screwdriver to install
two floating nuts on each front mounting rail accordingly. Leave a gap of 1 U between
the two floating nuts and ensure that they are level with those on the other front
mounting rail.
2. Install two floating nuts on each rear mounting rail. Leave a gap of 1 U between the two
floating nuts. Ensure that the lower floating nuts on the four mounting rails are level with
one another.
