Distance between
front and rear
mounting rails
Distance between
front and rear
mounting rails

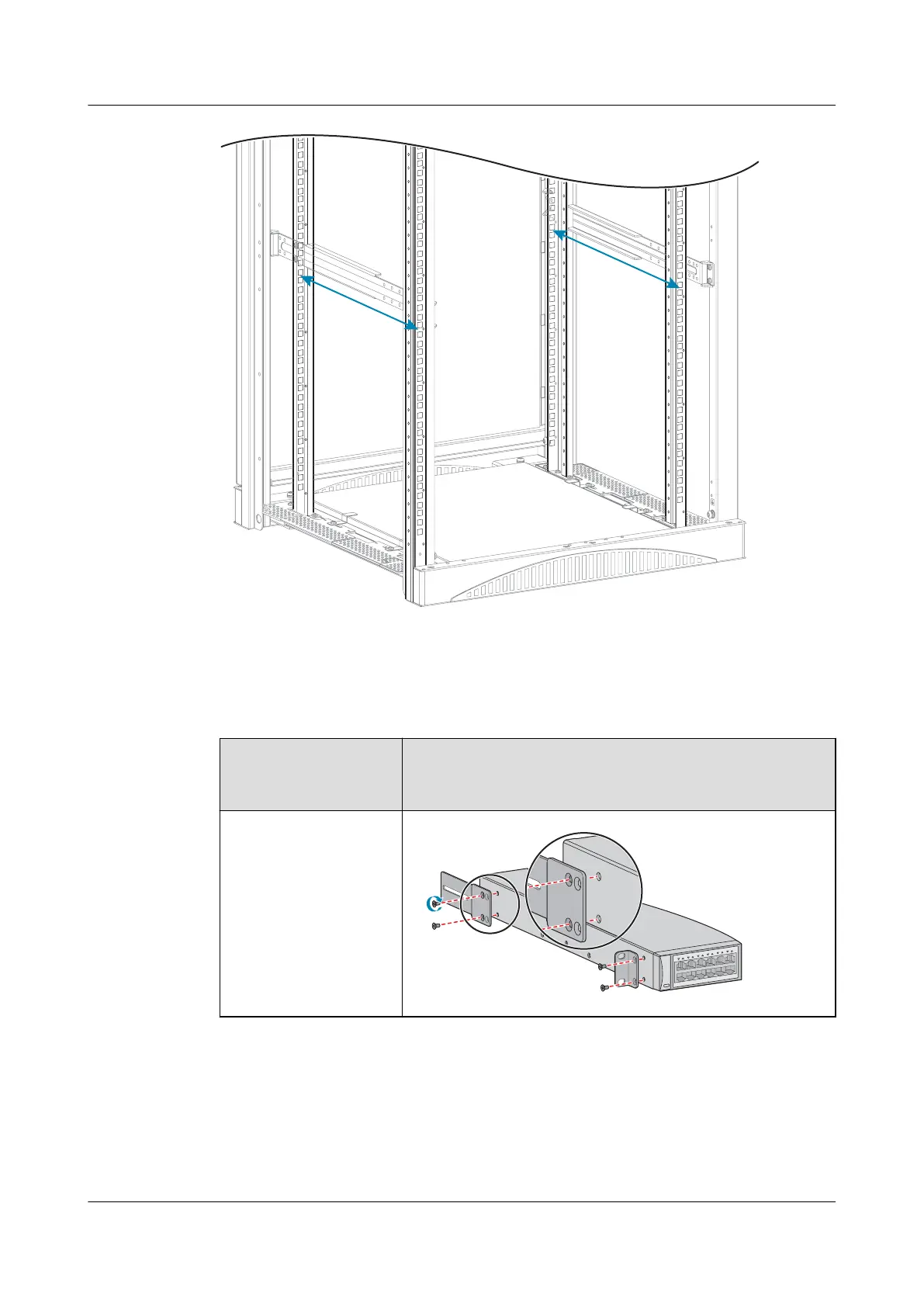

Step 3 Use M4 screws to attach front and rear mounting brackets to each side of the switch.
The distance between the front and rear mounting rails in the cabinet determines the
installation position of the mounting brackets. See Table 5-5.
Table 5-5 Installation of front and rear mounting brackets
Distance Between
Front and Rear
Mounting Rails
Mounting Bracket Installation
375-416 mm (14.8-16.4
in.)
S2700&S3700&S5700&S6700 Switch
Hardware Installation and Maintenance Guide
5 Installing a Switch
