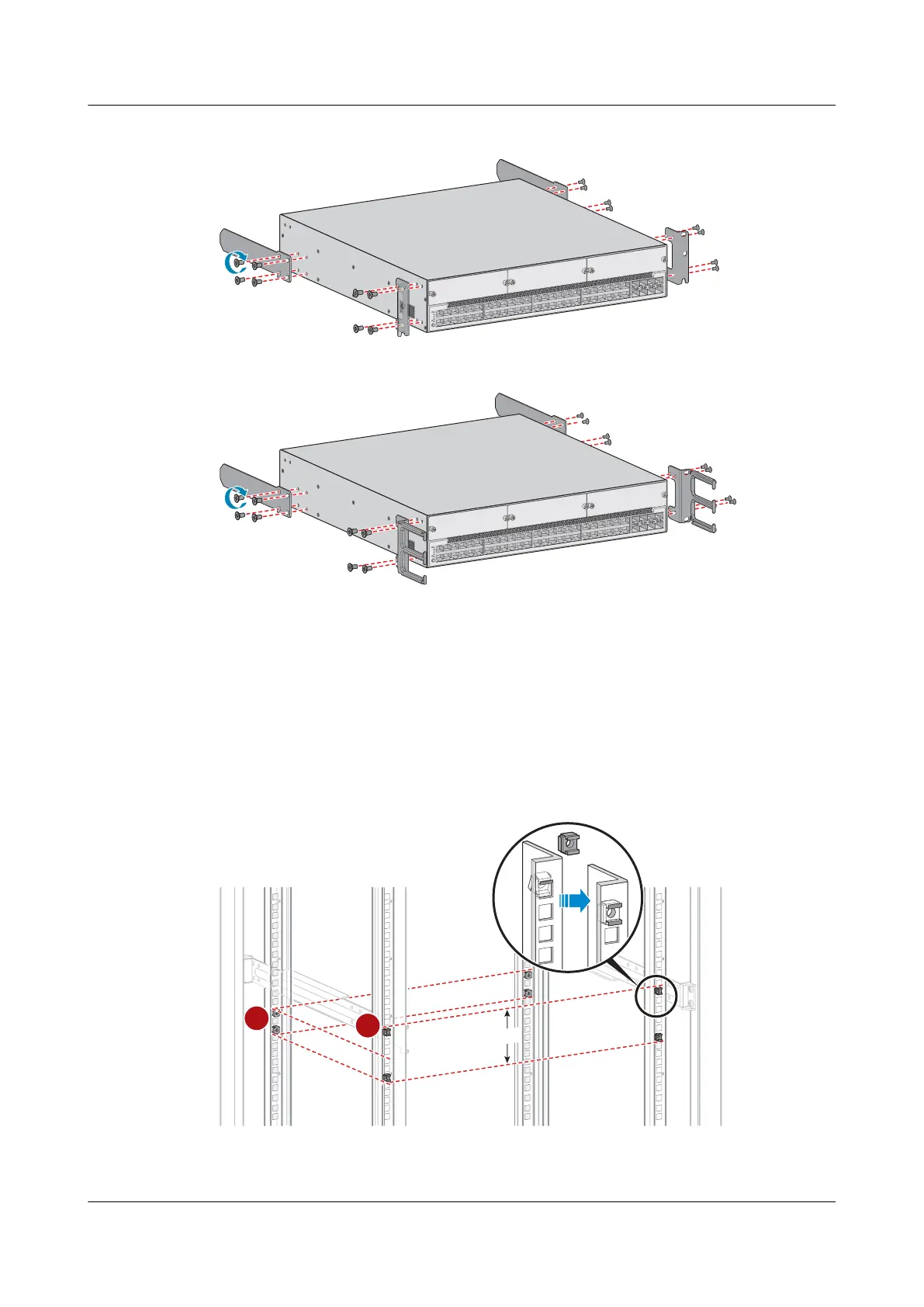

Figure 5-6 Installing front and rear mounting brackets
Figure 5-7 Installing cable management frames and rear mounting brackets
Step 3 Install floating nuts on the mounting rails of the cabinet. See Figure 5-8.
1. Determine the installation position of the switch and use a flat-head screwdriver to install
two floating nuts on each front mounting rail accordingly. Leave a gap of 2 U between
the two floating nuts and ensure that they are level with those on the other front
mounting rail.
2. Install two floating nuts on each rear mounting rail. Leave a gap of 1 U between the two
floating nuts. Ensure that the lower floating nuts on the four mounting rails are level with
one another.
Figure 5-8 Installing floating nuts
2U
1U
1U
h8
a
b
