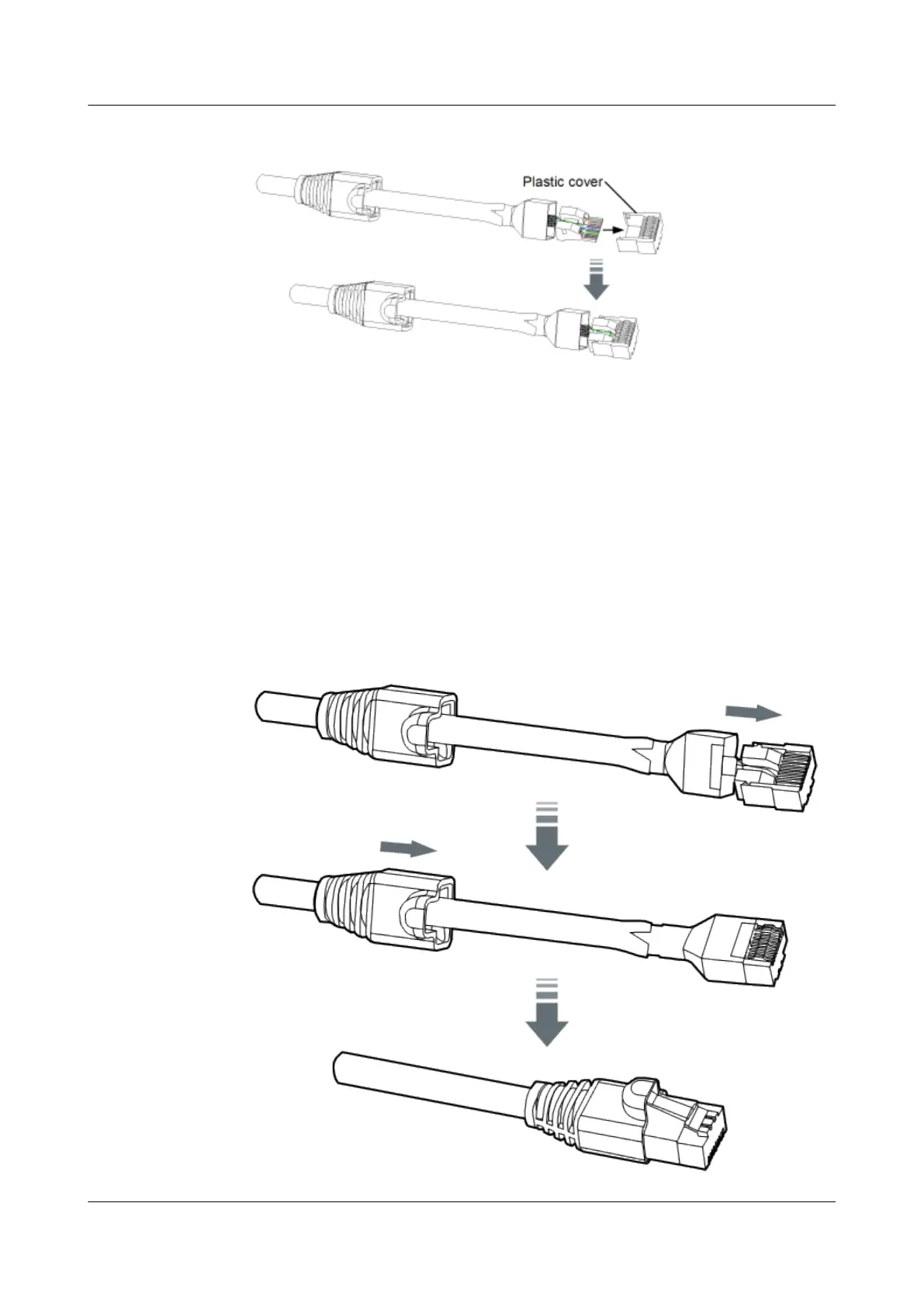

Figure A-18 Installing the wires
Step 3 Crimp the RJ45 connector.
1. Insert the RJ45 connector into the metal cover.
2. Use the diagonal pliers to crimp the metal part on the RJ45 connector. Ensure that the
conductors inside the wires are properly connected to the metal part and the RJ45 connector
is placed correctly. After crimping, the metal part on the connector must be lower than the
height of the plastic cover.
3. Use the network cable tester or a multimeter to check and ensure that the wires are connected
properly.
4. Insert the RJ45 connector into the jacket, as shown in Figure A-19.
Figure A-19 Crimping the RJ45 connector
SmartAX MA5612 Multi-service Access Module
Maintenance Guide A Appendix
Issue 01 (2012-07-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
280
