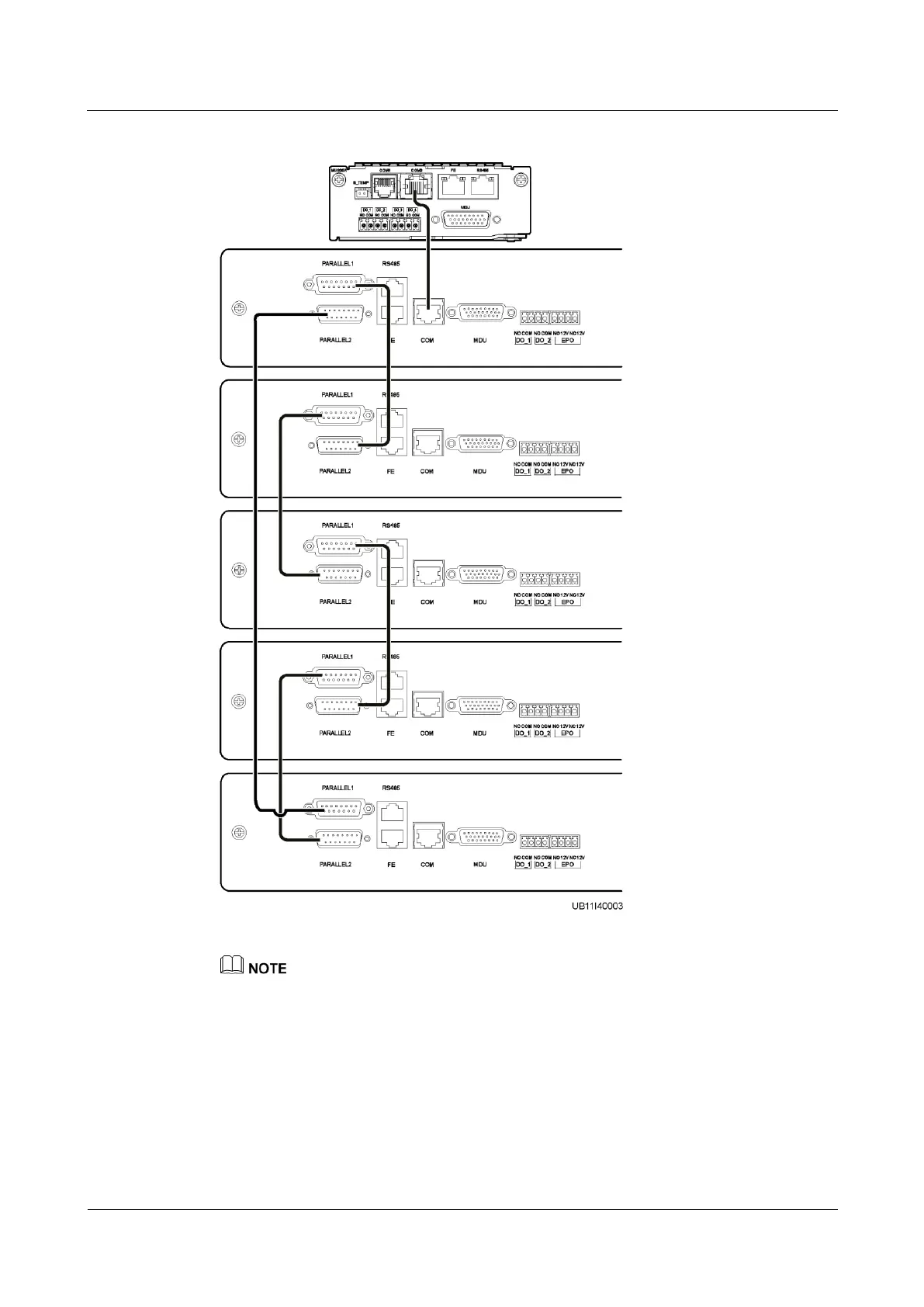

Figure 3-31 Connecting control cables
The numbers of cabinets in a parallel system depend on the connection of control cables. After the
control cables are connected according to the preceding figure, the cabinets are numbered 1, 2, 3, 4, and
5 from top to bottom.
----End
