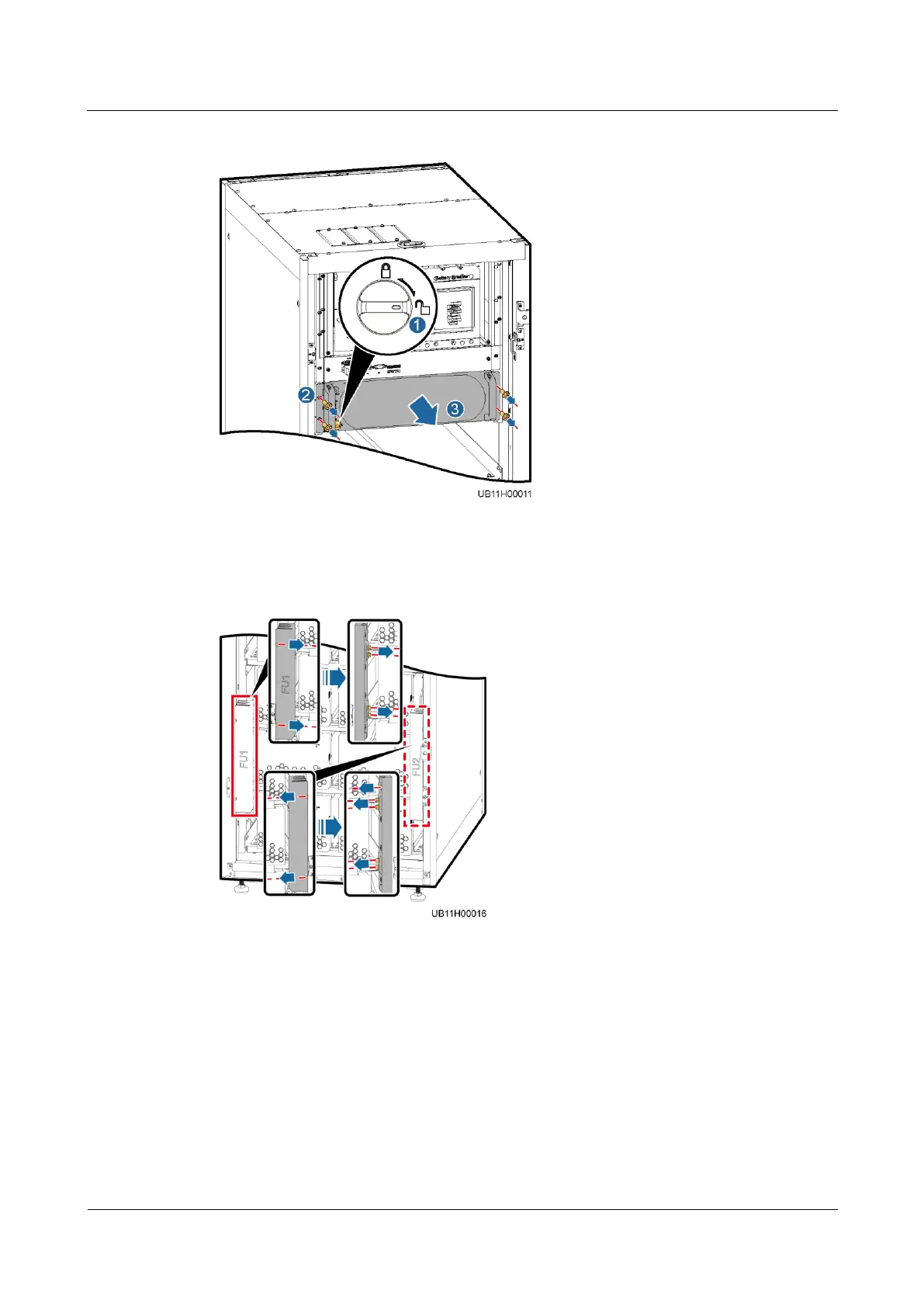

Figure 8-5 Pulling out the battery management module
Step 4 Remove the fuse box and certain cables.
Figure 8-6 Removing the fuse box
Step 5 Remove the battery modules, copper bars, and cables from the lower four layers.
