4 Installation
Issue 03 (2015-12-01)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
30

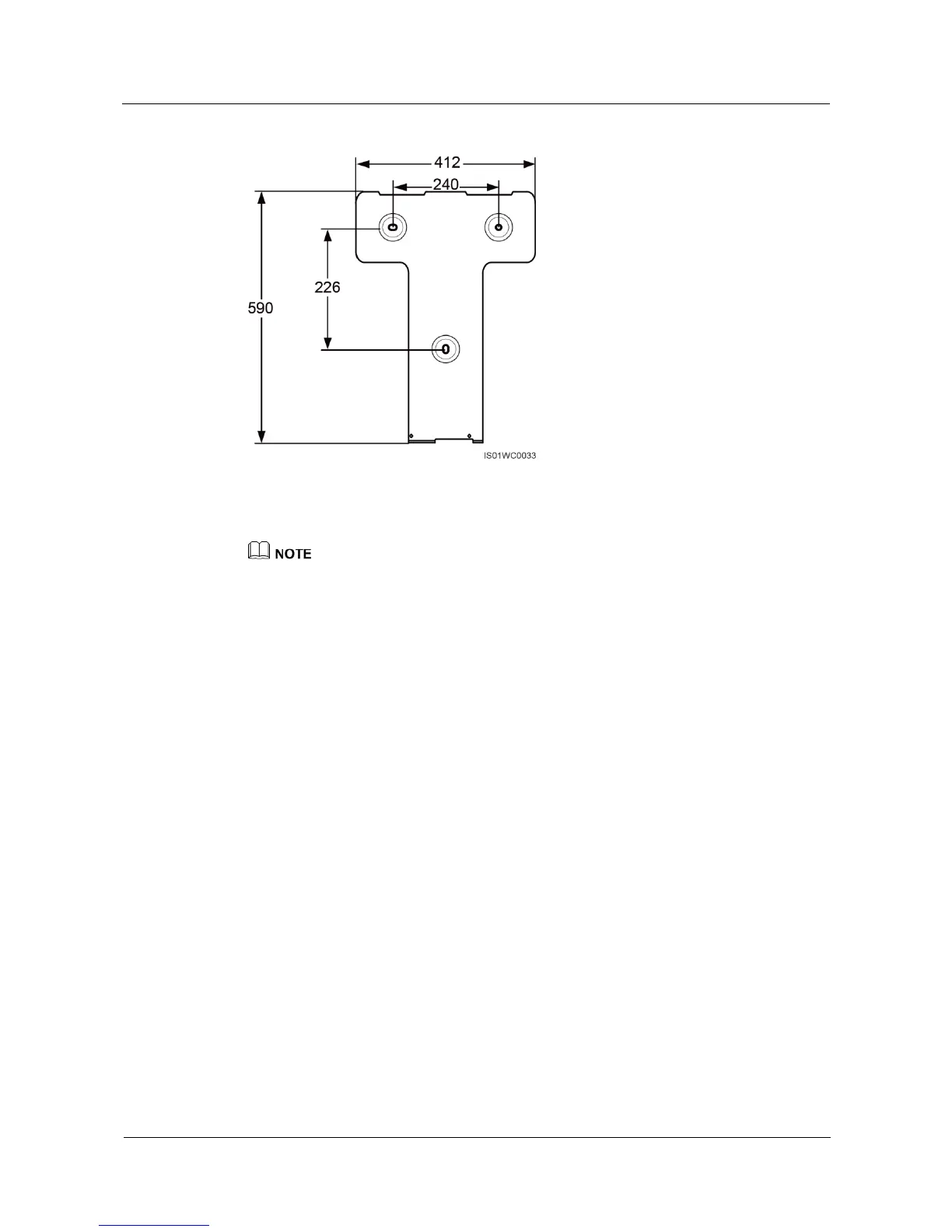

Figure 4-9 Dimensions of the rear panel (unit: mm)
Context

When installing the SUN2000-33KTL, you can use the expansion bolts delivered with the SUN2000
to install the rear panel.

When installing the SUN2000-40KTL, you need to prepare the expansion bolts. M12x60 stainless
expansion bolts are recommended.
Procedure
Step 1 Determine the positions for drilling holes (as shown in Figure 4-10) using the rear panel
available in the packing case, level the hole positions using a level, and mark the hole
positions using a marker.

Huawei SUN2000-33KTL Specifications

General

Purpose	Solar panel
Efficiency	98.6 %
Output power	30000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, IEC 62116
Input voltage	250 - 1100 V
Output current	43.3 A
Output voltage	230/400 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
