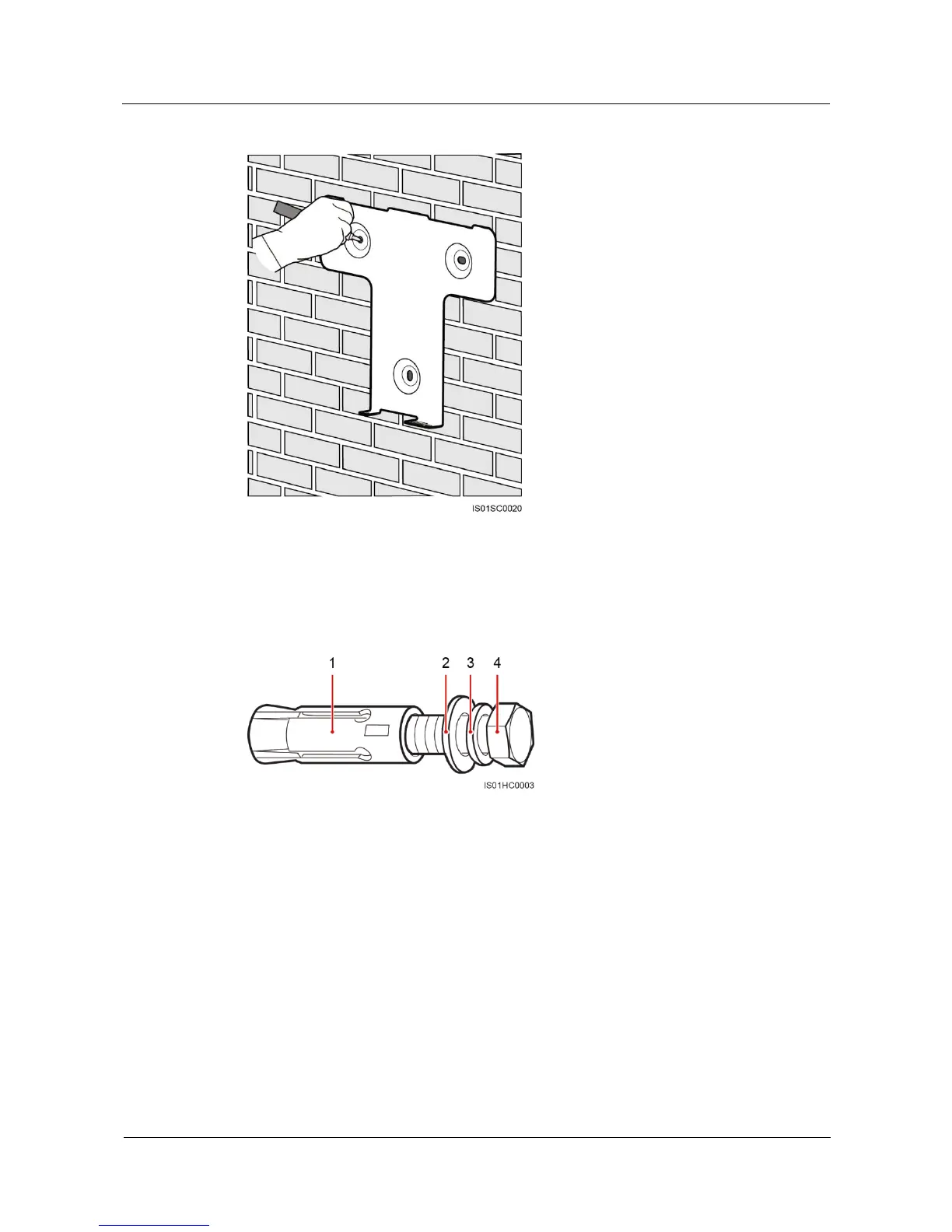

Figure 4-10 Determining hole positions
Step 2 Drill holes using a hammer drill and install expansion bolts, as shown in Figure 4-12.
An expansion bolt is composed of four parts, as shown in Figure 4-11.
Figure 4-11 Expansion bolt composition
(1) Expansion sleeve
(2) Flat washer
(3) Spring washer
(4) Bolt

Huawei SUN2000-33KTL Specifications

General

Purpose	Solar panel
Efficiency	98.6 %
Output power	30000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, IEC 62116
Input voltage	250 - 1100 V
Output current	43.3 A
Output voltage	230/400 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
