Huawei SUN2000-33KTL User Manual

SUN2000-(33KTL, 40KTL)
User Manual
5 Electrical Connections
Issue 03 (2015-12-01)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
48
Procedure

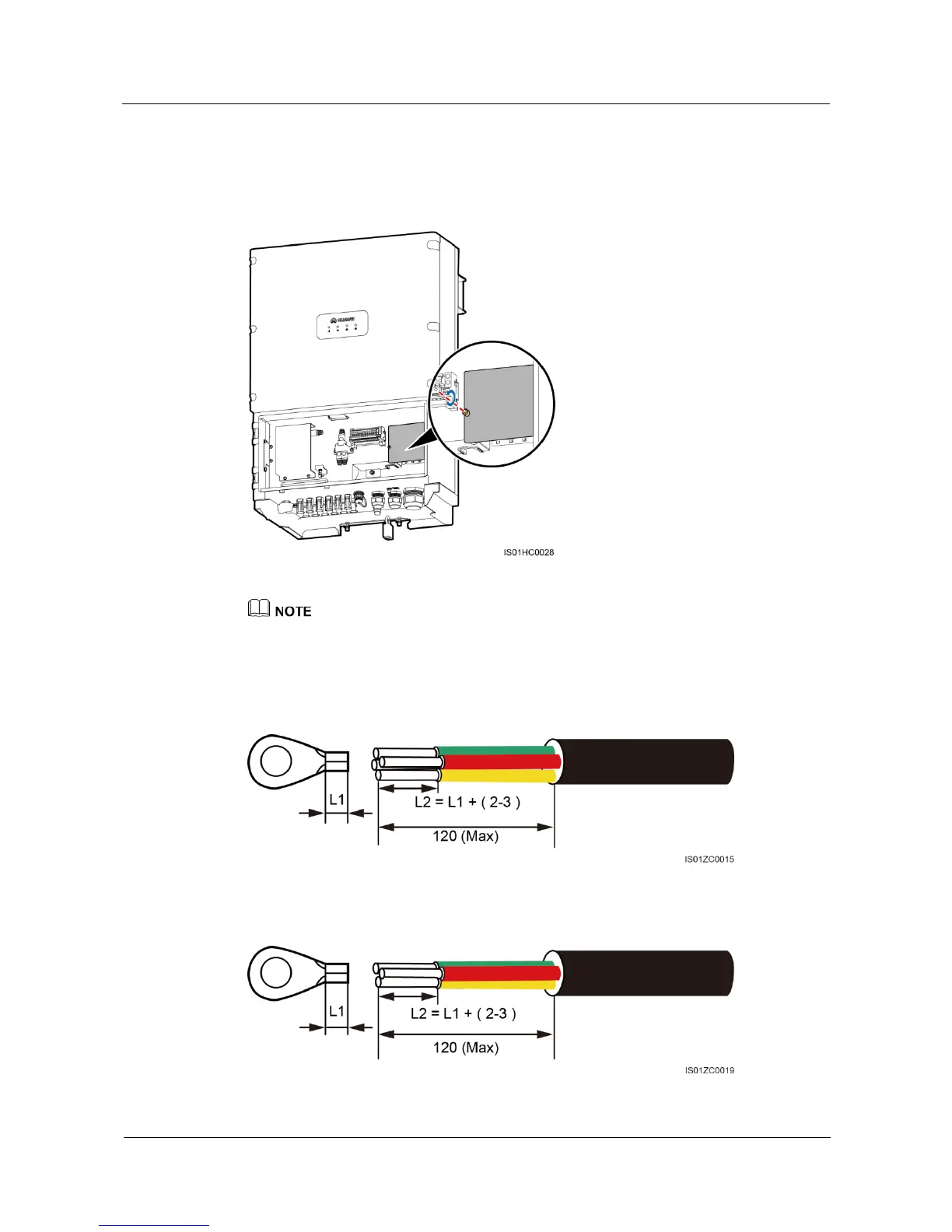

Step 1 Remove the AC terminal cover, as shown in Figure 5-6.
Figure 5-6 Removing the AC terminal cover
To highlight the involved area, the figure does not show the open maintenance compartment door.
Step 2 Remove an appropriate length of the jacket and insulation layer from the AC output cable
using a wire stripper.
Figure 5-7 Stripped length for the SUN2000-33KTL (unit: mm)
Figure 5-8 Stripped length for the SUN2000-40KTL (unit: mm)

Huawei SUN2000-33KTL Specifications

General

Purpose	Solar panel
Efficiency	98.6 %
Output power	30000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, IEC 62116
Input voltage	250 - 1100 V
Output current	43.3 A
Output voltage	230/400 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
