Model Function Remarks

Magnetic

loop

DN85H, H38x22x15 (DMEGC)

E2F, 38x22x15 (FENGYI)

Optimizes the

performance of the TN-C

power distribution system

in a parallel system.

In a parallel

system of 15

kVA/20 kVA UPSs

using the TN-C

power distribution

system, install four

magnetic rings at

each PE cable on

each UPS, bind the

four magnetic

rings together

using binding tape,

and secure them

to the nearest

place.

NO TE

● It is recommended that you install the battery temperature sensor (secured with an

adhesive) on the surface of batteries in the middle of the battery rack.

● Check the upstream input power cable connection. If the PE wire and neutral wire are

short-circuited, the system is a TN-C system. If the PE wire and neutral wire are

connected separately, the system is a TN-S system.

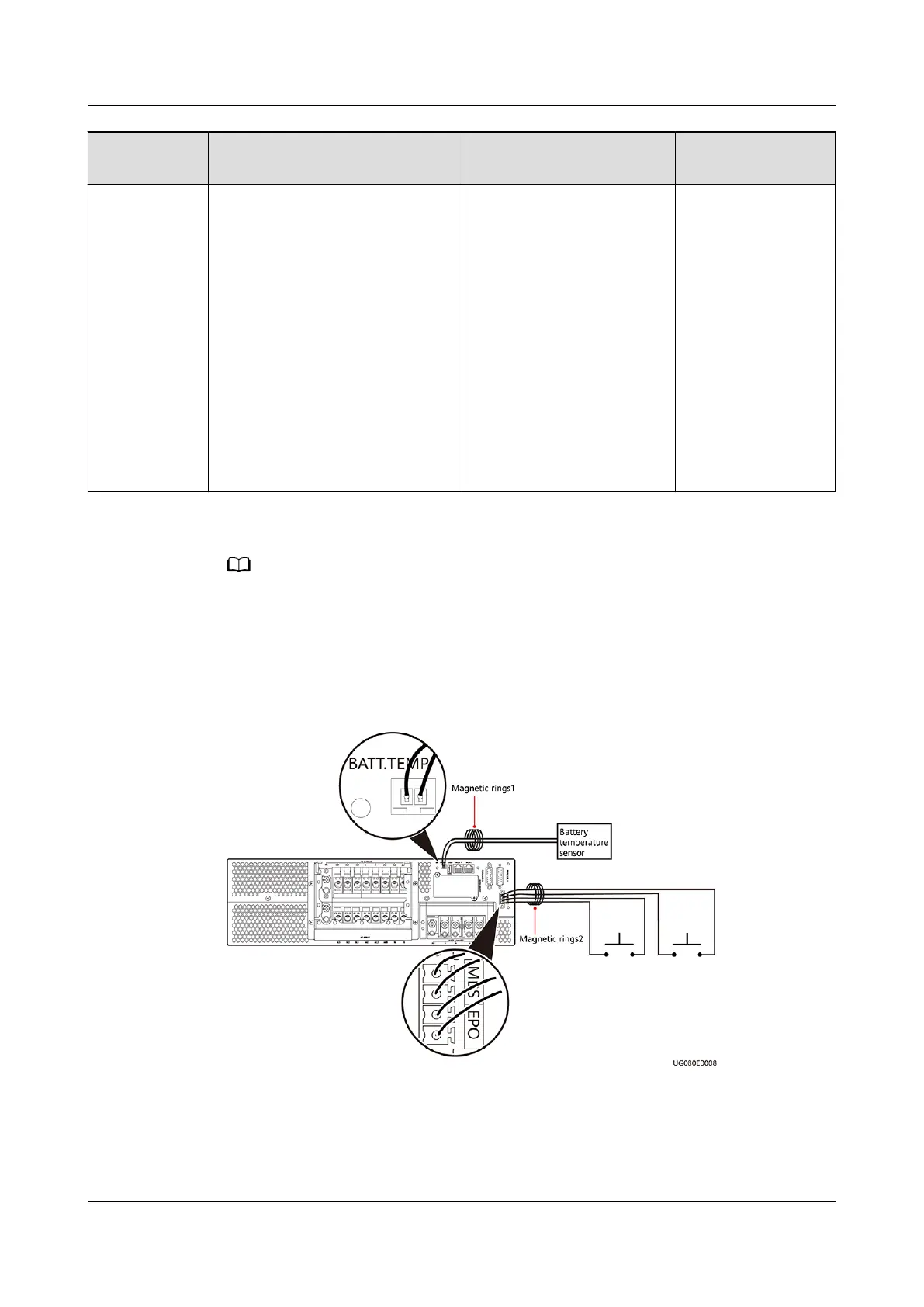

Figure 2-7 Installing magnetic rings for the BATT.TEMP, MBS, and EPO ports

UPS2000-G-(6 kVA–20 kVA)
