Huawei UPS2000-G - Settings; Basic Settings Screen

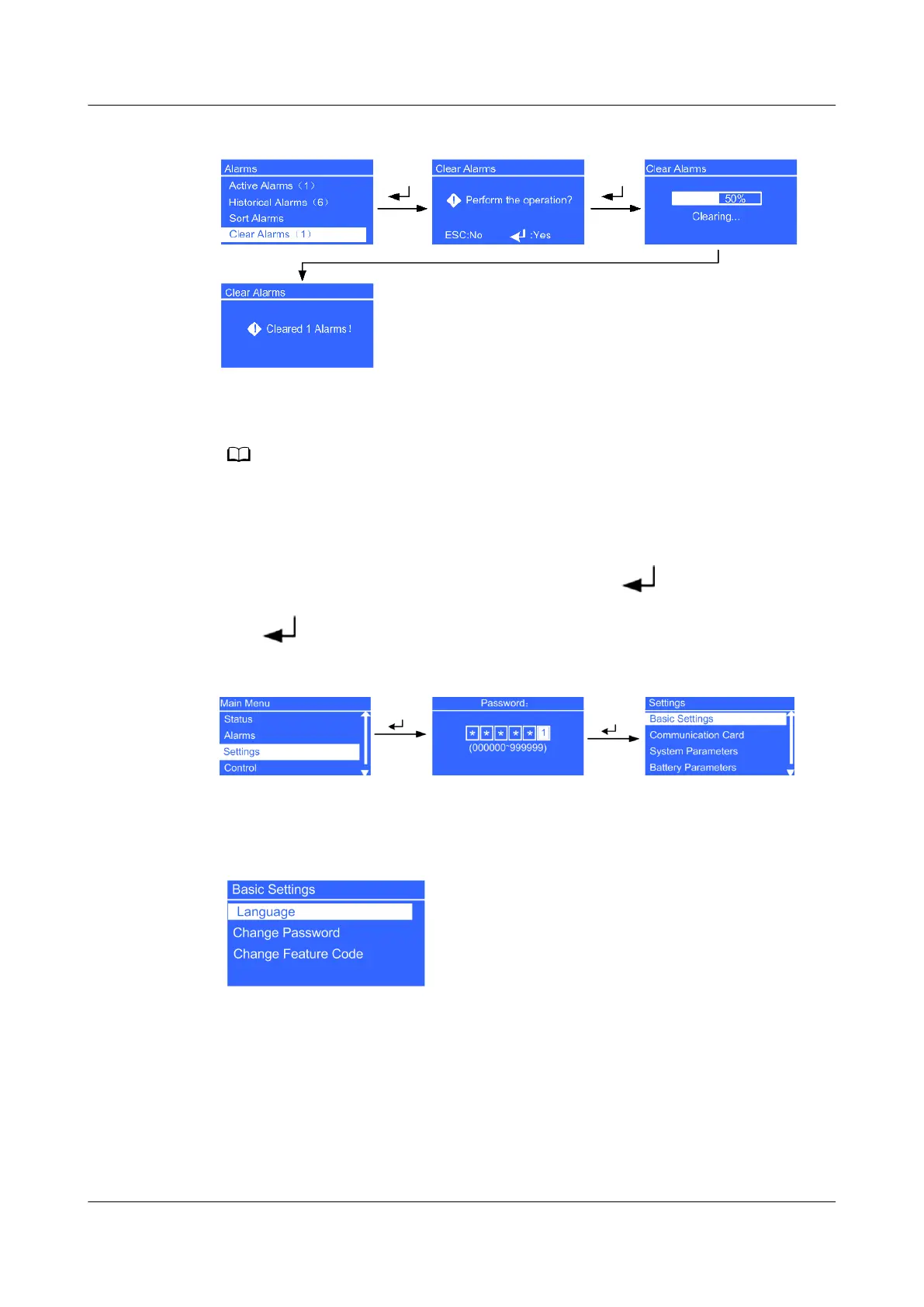

Figure 5-21 Clear Alarms screen
5.6.3 Settings
NO TE
● To ensure system security, change the LCD and WebUI passwords after the rst login.
● The UPS2000-G-15KRTL-01/UPS2000-G-20KRTL-01 prompts users to change the initial
password. If an incorrect password is entered ve consecutive times, the account will be
logged out for 5 minutes.
On the Main Menu screen, select Settings, and press
. The Settings login
screen is displayed. The preset password is 000001. After you enter a password,
press
. The Settings screen is displayed, as shown in Figure 5-22.
Figure 5-22 Settings screen
5.6.3.1 Basic Settings Screen
Figure 5-23 Basic Settings screen
UPS2000-G-(6 kVA–20 kVA)
User Manual (Lead-Acid Battery) 5 Control Panel
Issue 23 (2024-03-15) Copyright © Huawei Digital Power Technologies Co., Ltd. 82
