5.5 LCD Startup Screen
Table 5-3 Symbol conventions
Symbol Description
Press A.
Press B after you press A.
Indicates omitted screens.
The symbol conventions apply to all chapters in this document.
● The LCD screenshots in this document correspond to the following software
versions:
The UPS2000-G-15KRTL/UPS2000-G-20KRTL software version is
V100R001C10SPC802.
The UPS2000-G-15KRTL-01/UPS2000-G-20KRTL-01 software version is
V100R001C34SPC600.
The screenshots may be updated without notice. Contact technical support to
obtain the latest screenshots if necessary.
● The menus of the UPS2000-G-15KRTL/UPS2000-G-20KRTL/UPS2000-
G-15KRTL-01/UPS2000-G-20KRTL-01 are used as an example. The information
in the menu screenshots is for reference only. For details about the parameters,
see the actual LCD display of the UPS.
Figure 5-2 describes the LCD startup screen.

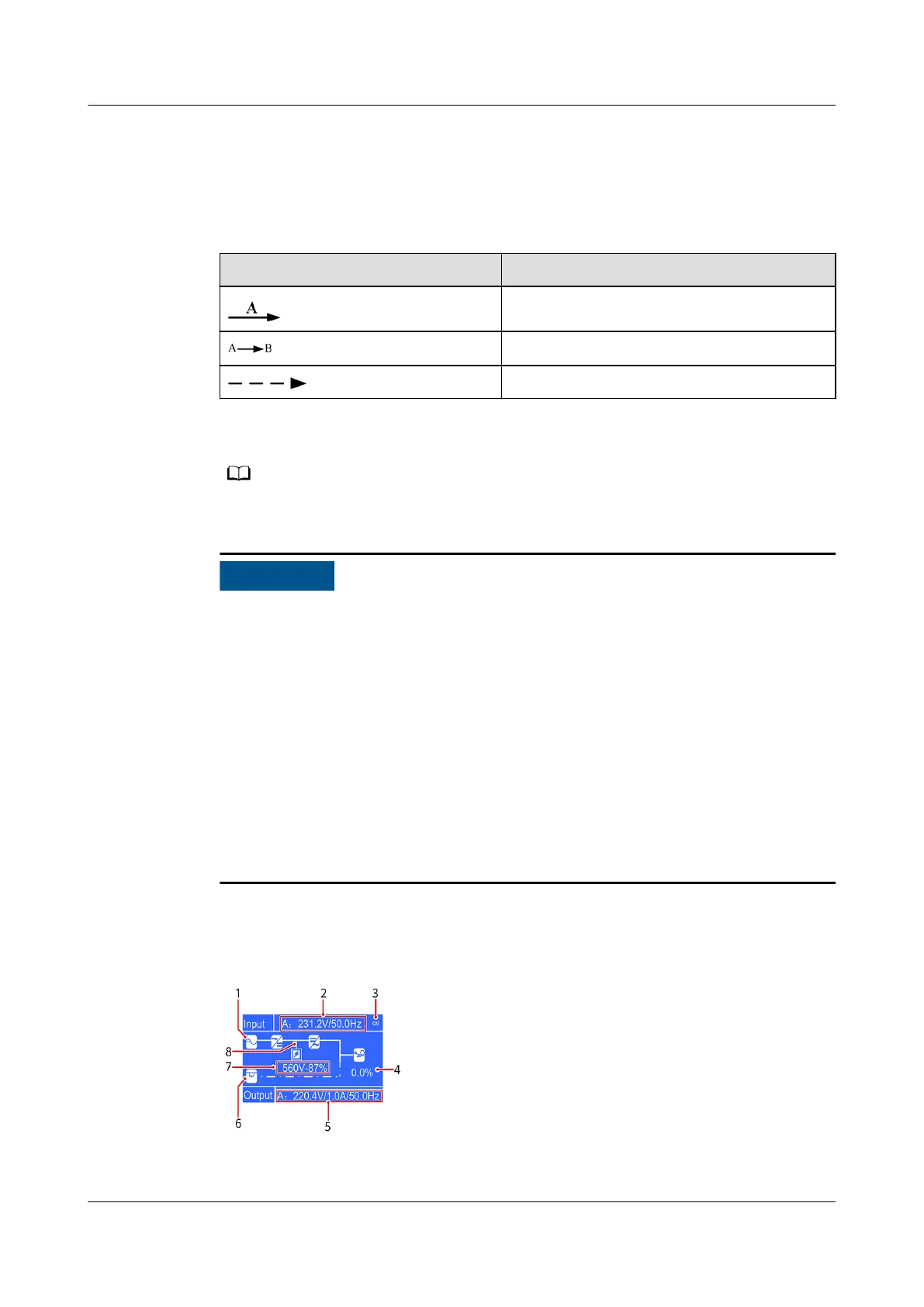

Figure 5-2 Description of the startup screen
