System-Wide Functions
The E3 Console displays the SYSTEM PROPERTIES screen after loading a configuration. Six system
wide functions, at the top of the screen, are accessible from all primary screens. Click the toolbar icon to
access the desired function.

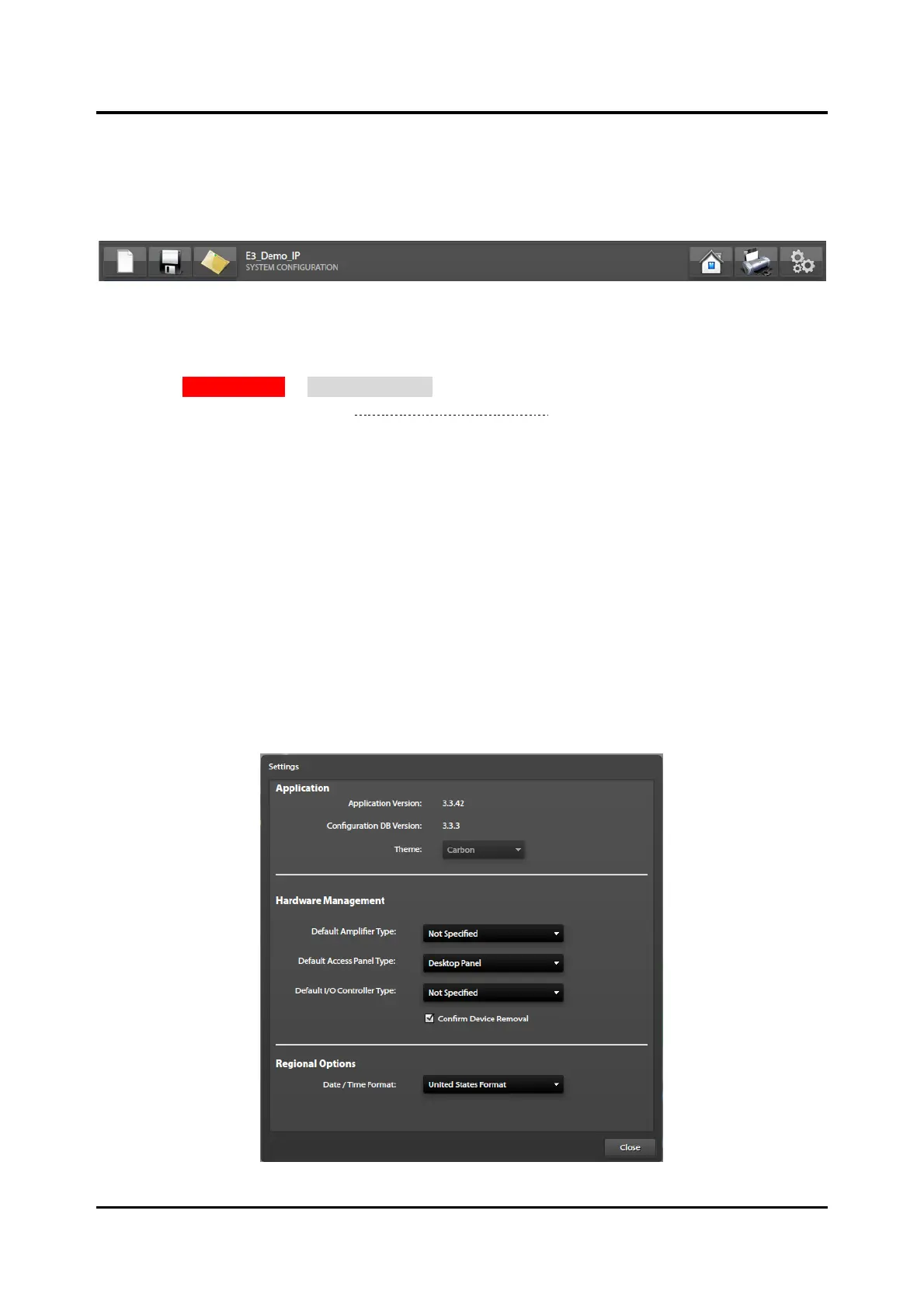

Figure 9. System Wide Functions
New—creates a new system configuration and loads it into the console.
A prompt to save changes appears if there are unsaved changes to the currently loaded configuration.
Choose SAVE CHANGES or DISCARD CHANGES as desired to continue to the CREATE NEW
CONFIGURATION screen (see the Create a New Configuration section).
Save—saves the currently loaded configuration.
Open—opens the LOAD CONFIGURATION screen.
This option is helpful for discarding changes by reloading the existing configuration without saving
the changes. A prompt to save changes appears if there are changes to the currently loaded
configuration.
Home—prompts the user to save changes, exits the currently loaded configuration screens, and opens the
E3 SYSTEM CONFIGURATION screen.
Reports—provides a report containing the addresses, types, descriptions, locations, and parent devices
for all hardware devices other than the controller.
Settings—provides application and database version information and facilitates setting several options in
the console software.
Figure 10. Application Options
To Next Page
