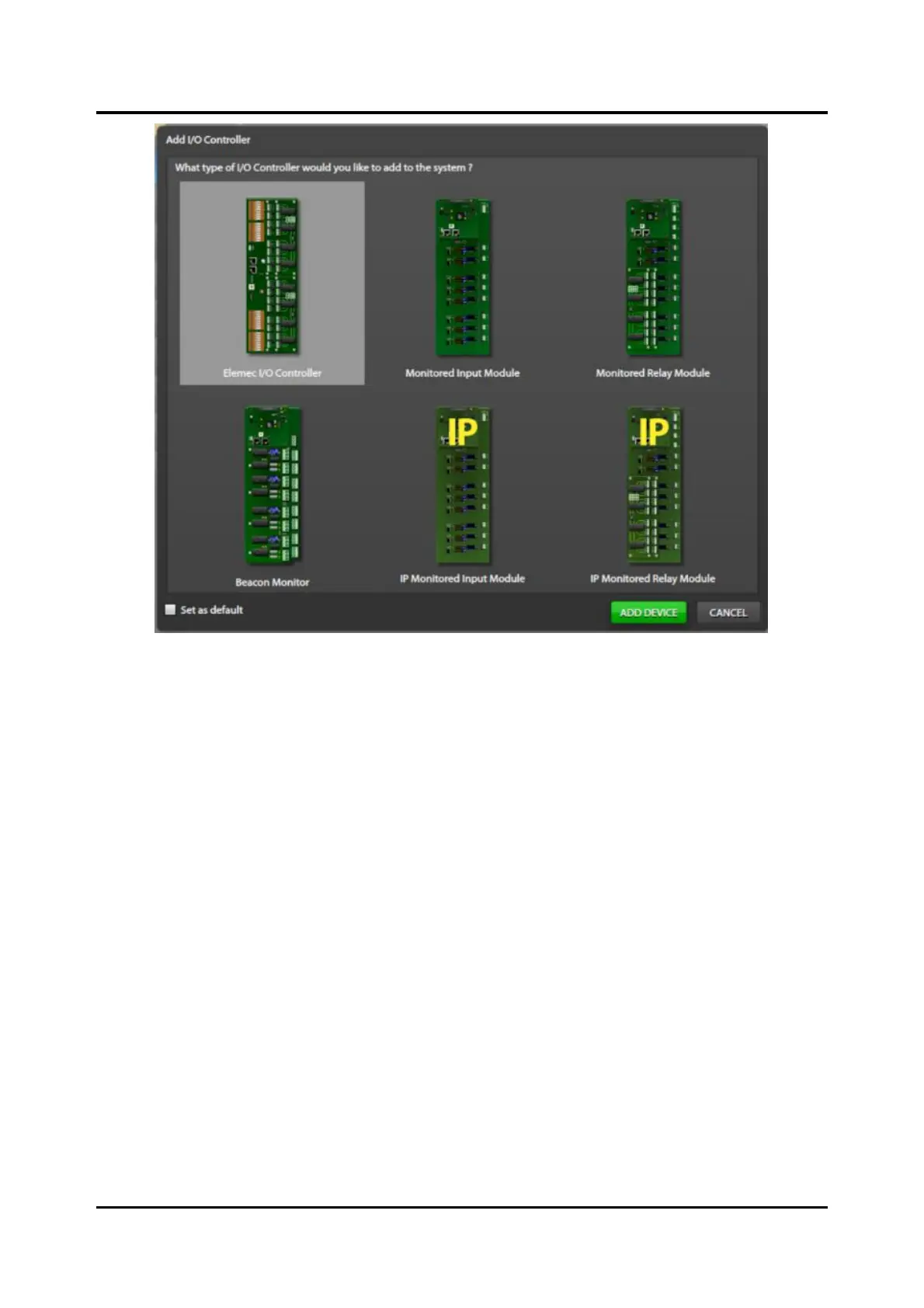

Figure 48. Add I/O Controller
Types of I/O controllers:
• Elemec I/O Controller—16 unsupervised inputs and up to 16 unsupervised outputs.
• Monitored Input Module—8 optionally supervised inputs.
• Monitored Relay Module—8 relay outputs with 8 optionally supervised inputs.
• Beacon Monitor—8 supervised outputs designed to monitor power distribution circuits.
• IP Monitored Input Module—8 optionally supervised inputs.
• IP Monitored Relay Module—8 relay outputs with 8 optionally supervised inputs.
Set as default—Select this option to automatically add the same controller type when adding additional
controllers.
