System Properties
The SYSTEM PROPERTIES screen displays when the E3 Console application starts and a configuration is
loaded (see Figure 11).

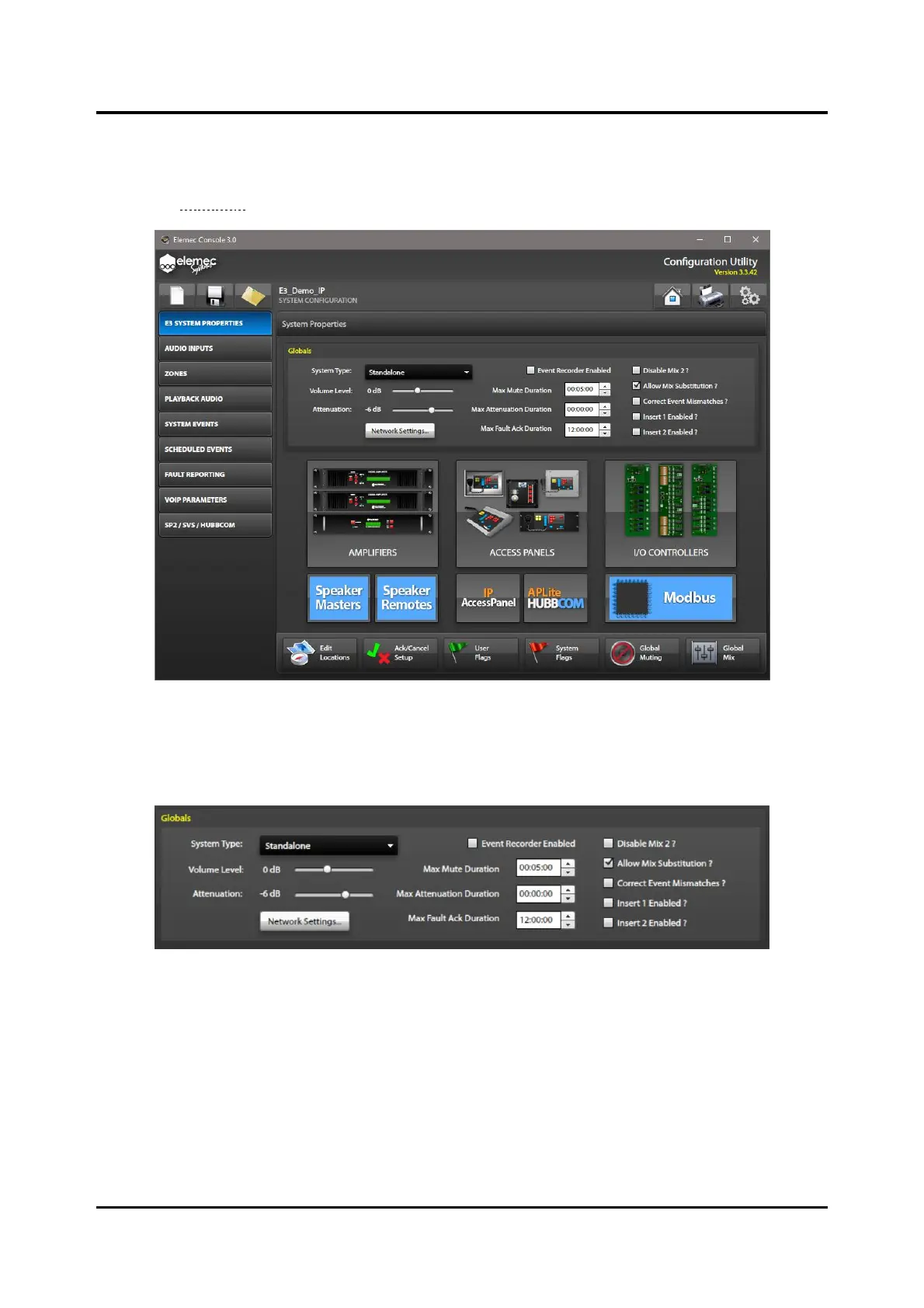

Figure 11. System Properties
Globals
The GLOBALS pane contains settings used throughout the Elemec3 configuration.
Figure 12. Globals
Global Settings
System Type—Select the system type using the pull-down menu:
• Standalone System—a system consisting of a single E3 controller with associated amplifiers, access
panels, I/O controllers, etc.
• A-B System—a system consisting of two E3 controllers. Each controller has its own associated
amplifiers access panels, I/O controllers, etc. If a controller fails, the amplifiers connected to the
failed controller switch to the healthy controller. The system contains two sets of all devices. A-B
systems require dual access panels.
