Pub. 42004-550A
Elemec3 Console Manual—Version 3.0 Page 25 of 114
P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-550A.docx
09/20
Speaker Masters
Speaker master modules work with speaker remote modules in an Elemec3 system to control volume
levels of speakers driven from central amplifiers. The E3 speaker master module changes individual
loudspeaker power tap levels on command from the E3 controller on a system-wide or individual speaker
basis. The range of adjustment is in steps from off/mute to full power. Each speaker master monitors and
controls up to four audio channels:
1. Assign amplifier channels to each of the four audio channels. An amplifier channel is assignable to
only one speaker master audio channel.
2. Assign up to 32 speaker remotes to each speaker master audio channel.
The speaker master powers the speaker remote modules on each channel and transmits power level
tap commands and receives speaker coil health check status from the speaker remote modules.
The E3 system excludes speaker masters from the B system in A-B systems the same way it excludes
amplifiers when redundancy is not required.
Add Speaker Master
1. Click the SPEAKER MASTERS button, located under the AMPLIFIERS button on the SYSTEM
PROPERTIES screen, to open the SPEAKER MASTER SETUP screen (see Figure 26).

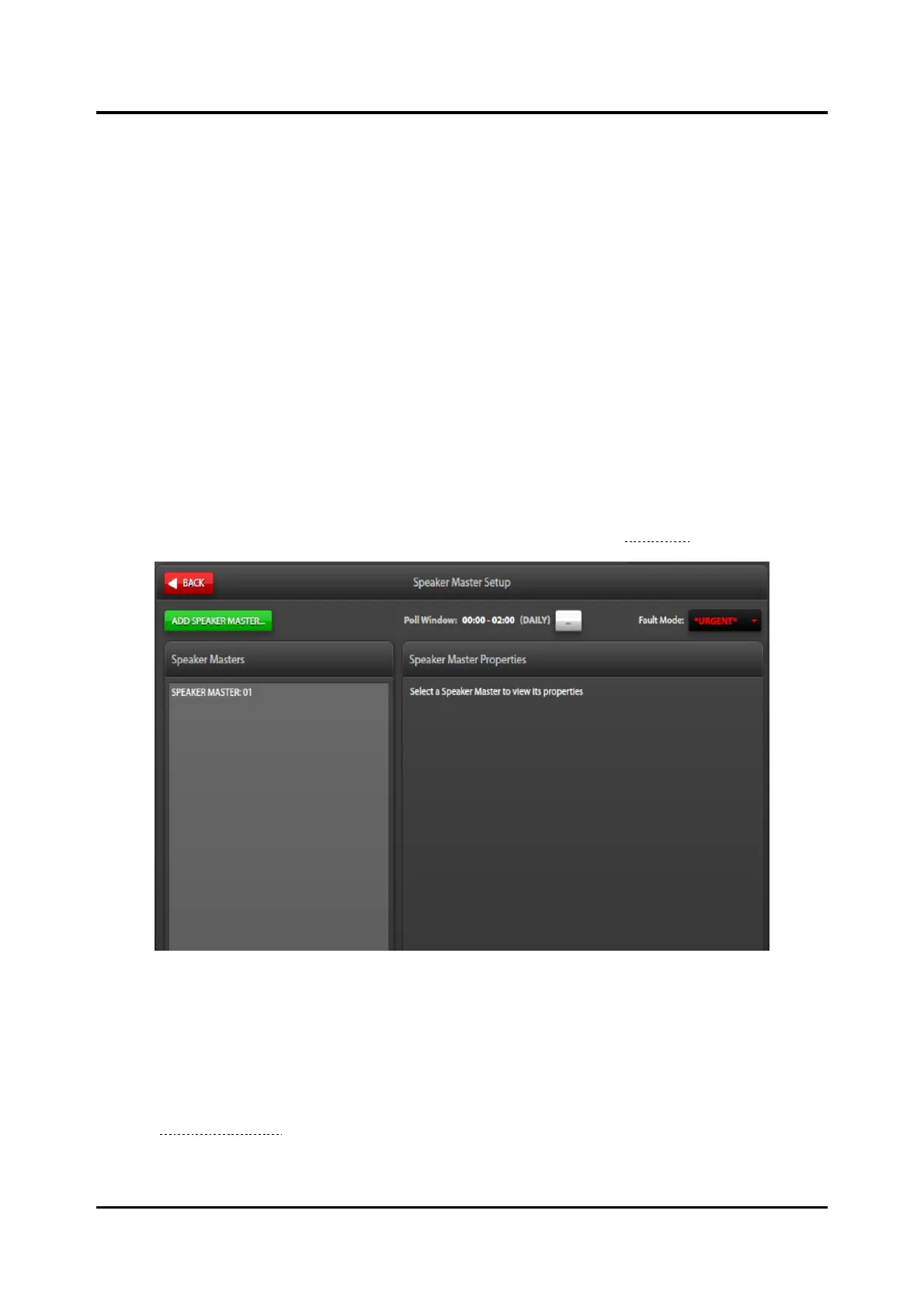

Figure 26. Speaker Mater Setup
Poll Window—HH:MM–HH:MM(DAILY)—Click the ellipsis button to change the time frame the
speaker masters use to poll the speaker remotes to set transformer tap levels and obtain status from the
remotes.
NOTE: The global TIME ZONE SETTING is viewable and configurable on the SPEAKER MASTER POLL
WINDOW dialog box and from the SCHEDULED EVENT CONFIGURATION screen (see the
Scheduled Events section).
Fault Mode:—Ignore, Normal, or *URGENT*
