2. Click ADD SPEAKER MASTER to add speaker master modules to the system.
• Assign up to 16 speaker masters to the Elemec3 system.
• Speaker masters receive a hexadecimal address from 01–10 in the order created.
• Each speaker master controls one to four amplifier audio channels.

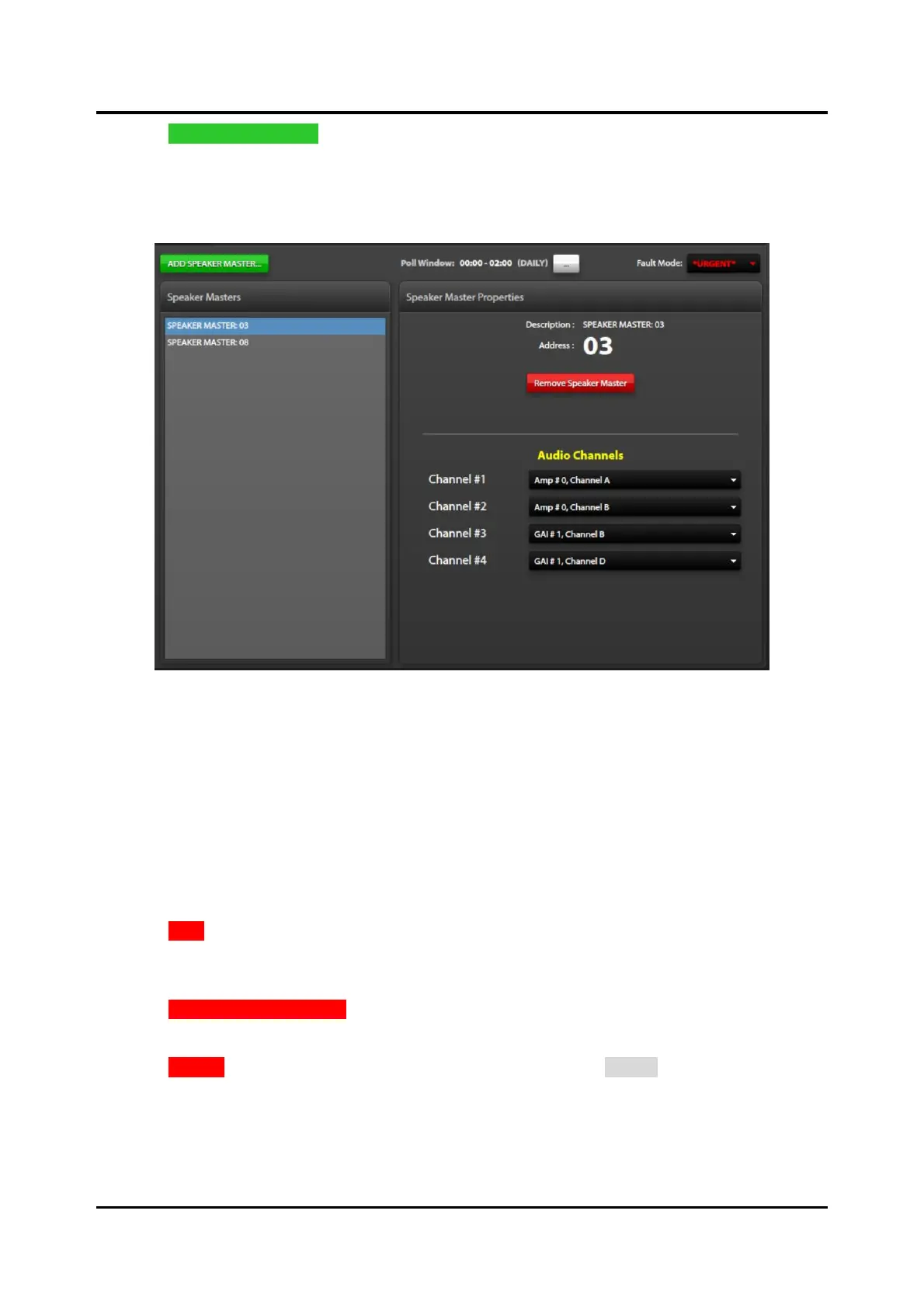

Figure 27. Speaker Master Properties
Description—description of the speaker master module assigned by the E3 Console.
Address—hexadecimal address assigned to the controller by the E3 Console.
3. Assign AUDIO CHANNELS to the speaker master controller.
Channel #1–Channel #4—Select the amplifier channel to assign to each of the four audio channels.
Amplifier channels are assignable to only one speaker master controller.
NOTE: Setting an audio channel to Not Specified removes all speaker remotes assigned to that
audio channel from the configuration.
4. Click BACK to return to the SYSTEM PROPERTIES screen.
Remove Speaker Master
1. Click REMOVE SPEAKER MASTER to remove the selected speaker master controller from the system.
A confirmation dialog box displays.
2. Click REMOVE to remove the device from the system configuration or CANCEL to go back to the
speaker master properties screen.
NOTE: Exclude speaker masters from the B system in an A-B system when redundancy is not required.
