I/O Controllers
I/O controllers accept external inputs to the E3 system and activate relay contacts or logical outputs from
the Elemec3 system. The I/O CONTROLLERS SUMMARY screen displays the I/O controllers configured in
the system.

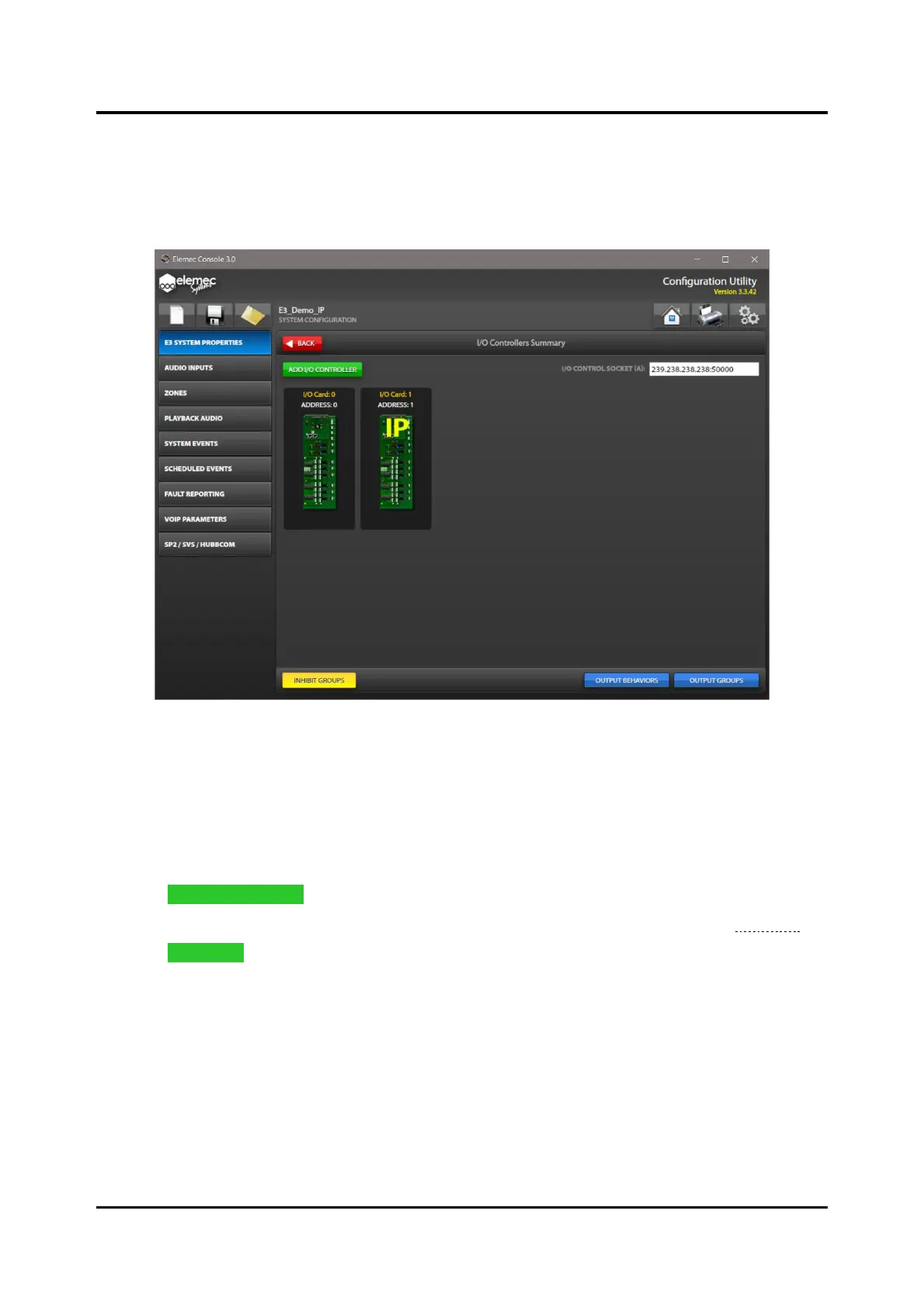

Figure 47. I/O Controllers Summary
IO Control Socket—This field is only for IP I/O cards. It defines the IP communication channel
between the E3 controller and the IP I/O devices on the network. All IP I/O devises communicate on the
same control socket. The socket number consists of a multicast IP address and port number separated by
a colon (:). The default I/O Control Socket is 239.238.238.238:50000.
Add I/O Controllers
1. Click ADD I/O CONTROLLER to add an I/O controller to the system.
2. Select one of the seven types of I/O controller on the ADD I/O CONTROLLER screen (see Figure 48).
3. Click ADD DEVICE to add the selected controller to the configuration.
• The I/O CONTROLLER PROPERTIES screen appears.
• With the default controller type checkbox selected, add each new controller without having to
select the controller type to add. Clear this system option by clicking the gear icon located in the
upper right corner on all primary console configuration screens.
