Hunter GSP9720JLR - Hiding Adhesive Weight Behind Spoke

Hiding Adhesive Weight Behind Spoke

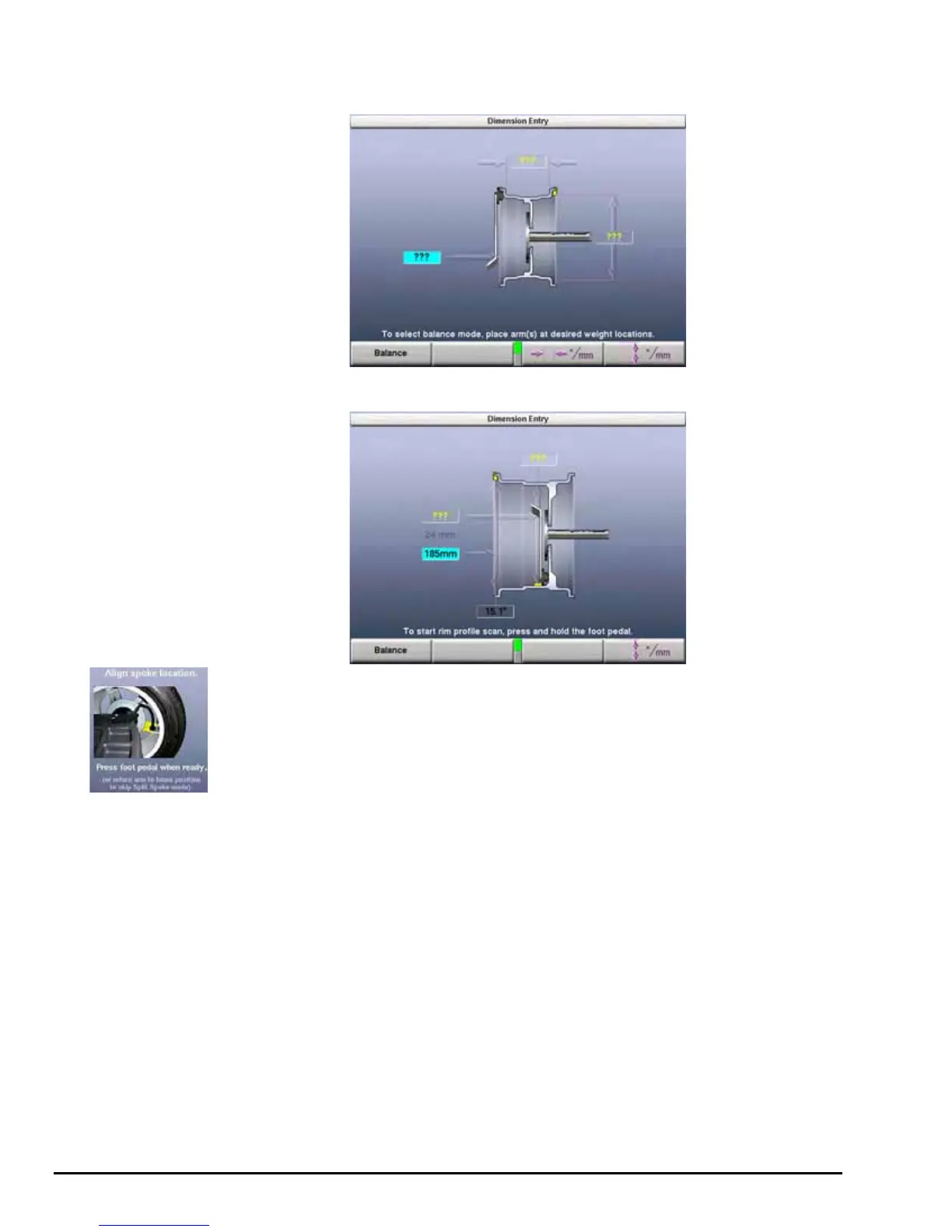

Move the inner Dataset® arm to left weight plane position. Enter the data by pressing
the foot pedal.
Move the inner Dataset® arm to the far right weight position, using the DOWNWARD
arm position. Enter the data by pressing the foot pedal.
After inputting weight plane(s), the Split Spoke® feature may be initiated by the
following steps before returning the arm to the “home” position:
Move the inner Dataset® arm to a position centered behind a spoke, using the
DOWNWARD arm position. Enter the data by pressing the foot pedal.
Rotate the wheel to position the Dataset® arm behind an adjacent spoke (nearest
spoke in either direction). Enter the data by pressing the foot pedal.
Return the inner Dataset® arm to the home position.
Close safety hood.
68
x
Balancing Procedures GSP9720JLR Wheel Balancer Operation Instructions
