Hunter XC Hybrid - Controller Attachment and Wiring to Pole Mount

19

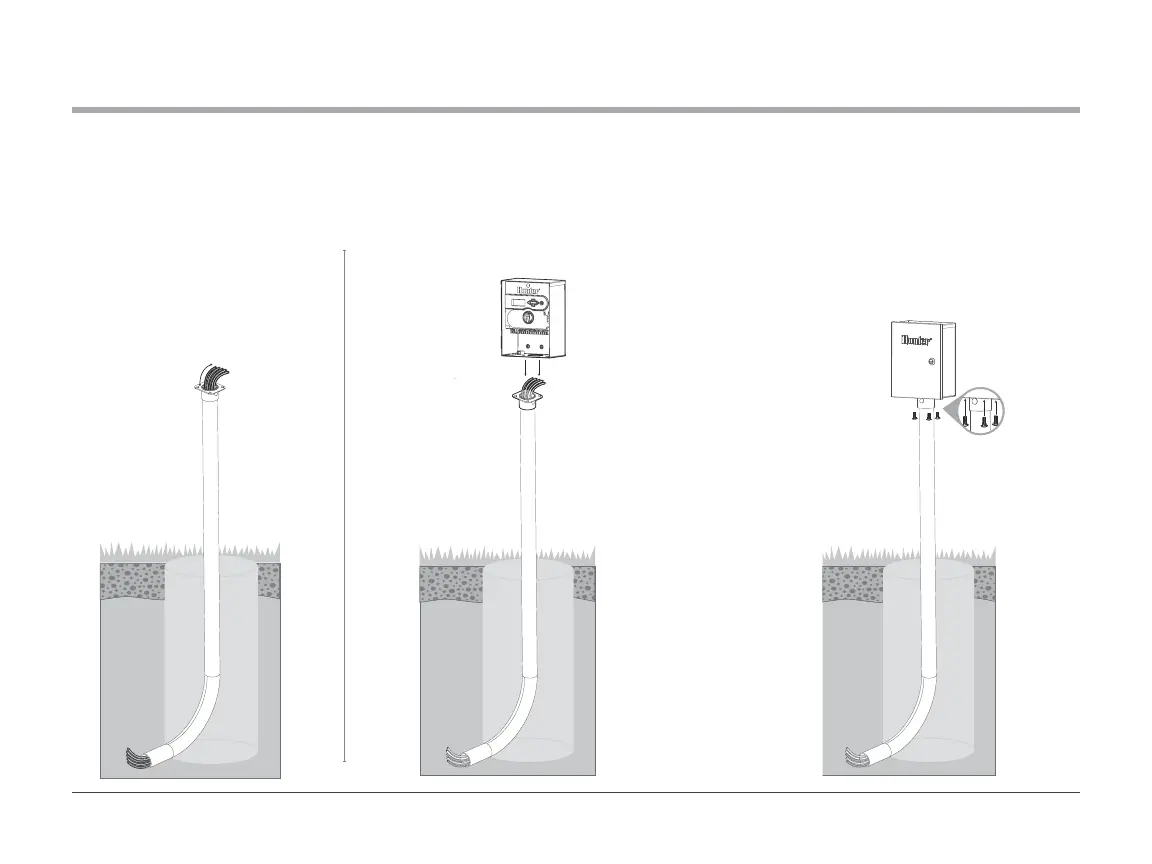

POLE MOUNT INSTRUCTIONS
• Remove the door and bottom facepack
cover from the XC Hybrid controller.
• Place the controller on top of the
mounting plate.
• Remove all four knockouts.
• Insert four carriage bolts into the bottom
holes located underneath the controller
base. Then tighten with four nuts until the
controller does not twist and cannot be
pulled o the mounting plate.
• Replace the facepack cover and the door to
the controller.
④③
• Route all wires up the pole
until at least 12" (30 cm) of
wire extends out of the top.
12"
(30 cm)
NOTE: Make sure that
12" (30 cm) of wires
are now inside the
controller and cannot
slip back down into
the column.
