Probe Head Replacement Procedure
0
20
40
60
80
100
mmHg
120
140 160
180
200
220
240
260
280
300
7.8 Waterproof Inspection & Test Procedure - D920-P, D930-P, FD1-P &
FD3-P
1. Sphyg Pressure Indicator (ACC123)
Eqquiipmeent Reeqquiireedd
These tests are designed to ensure the probe is waterproof to an approximate depth of 1.5m
of water.
They are done by immersing the probe in water, pressurising it with compressed air, and
checking for air leaks.
WWaateerproooof Teestiing
1. Inspect grommet of AP2-P transducer and peel off any excess silicon from external
surfaces before commencing the waterproof test.
2. Adjust the air supply to give 130 +/- 10mmHg.
3. The Probe is pressurised via the cable. Clamp the tube around the cable end using a cable
tie. Check the joint to ensure there is no air leak by immersing in water. Flex the cable at
gland entry and check for bubbles. If no bubbles are evident, continue test.
4. Check for leaks for a minimum of 30 seconds.
5. If aany aaiir lleeaakks aaree nooteedd, furthheer iinveestiigaatiioon iis reeqquiireedd.

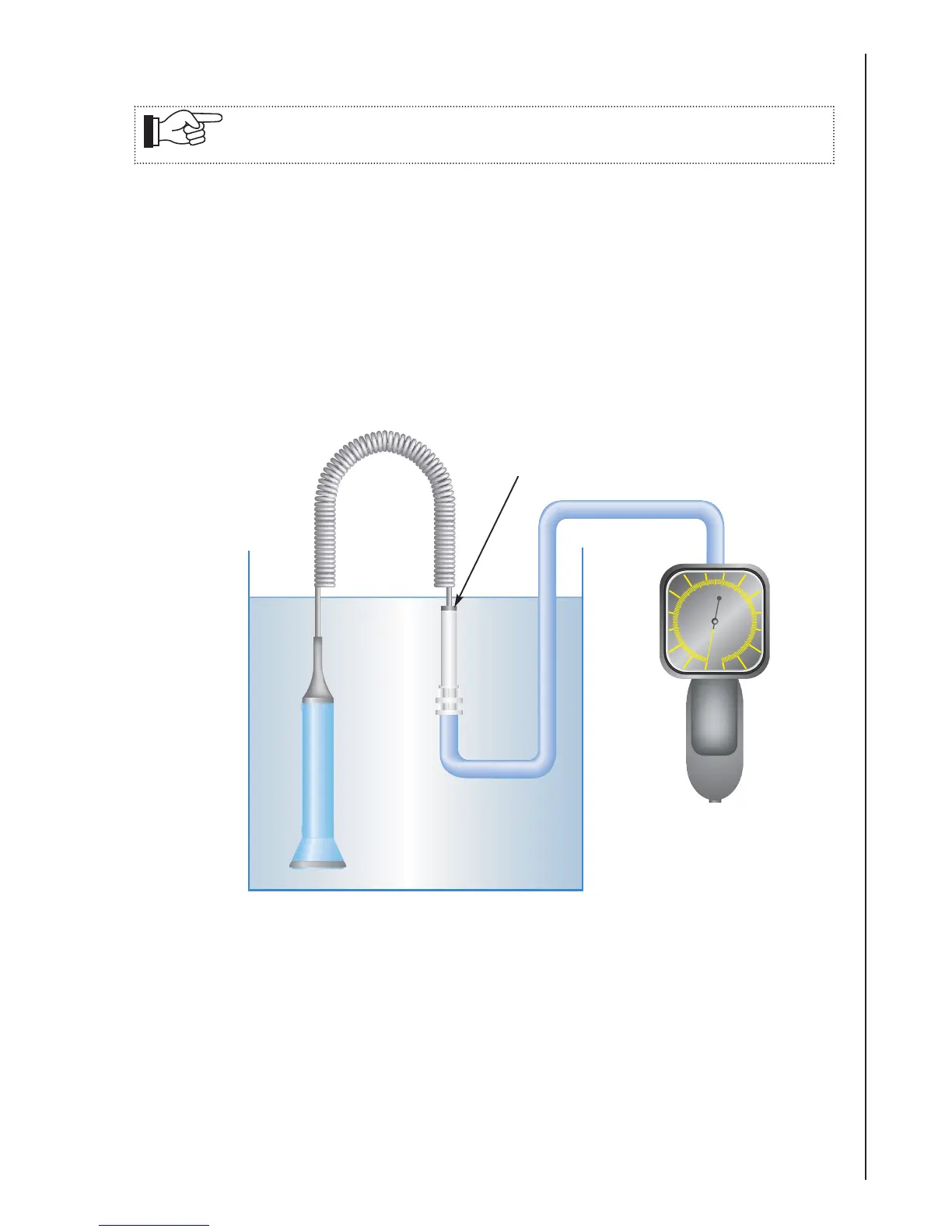

Proobbee Teest - Too teest thhee ccoomplleeteedd proobbee
Cable to be
flexed at gland
entry
Cable tie
IMPORTANT: Thhiis teest iis oonlly too bbee ccaarriieedd oout wiithh D9220-PP, D9330-PP, FD1-PP
aandd FD33-PP WWaateerproooof proobbees.
