Appendix F

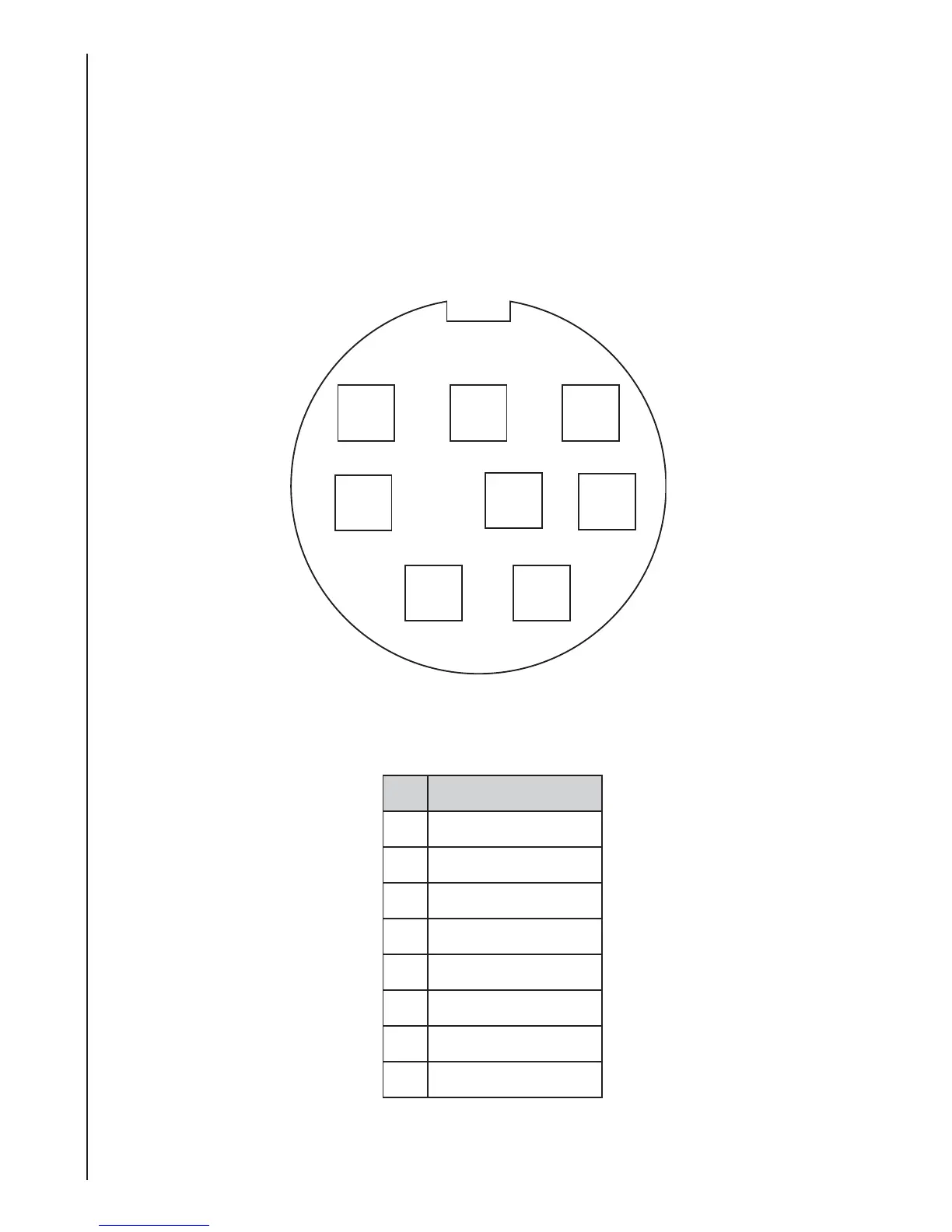

Waveform Output Connector Details - RD2 / MD2-P
Appendix F
3
8
5
2
4
1
7 6
Pin Connection
1 RS232 - TX
2 RS232 - RX
3 GROUND
4 WAVEFORM
5 RS232 - BUSY
6 5V
7 WAVEFORM
8 RS232 - ENABLE
