5544
Spare Parts List

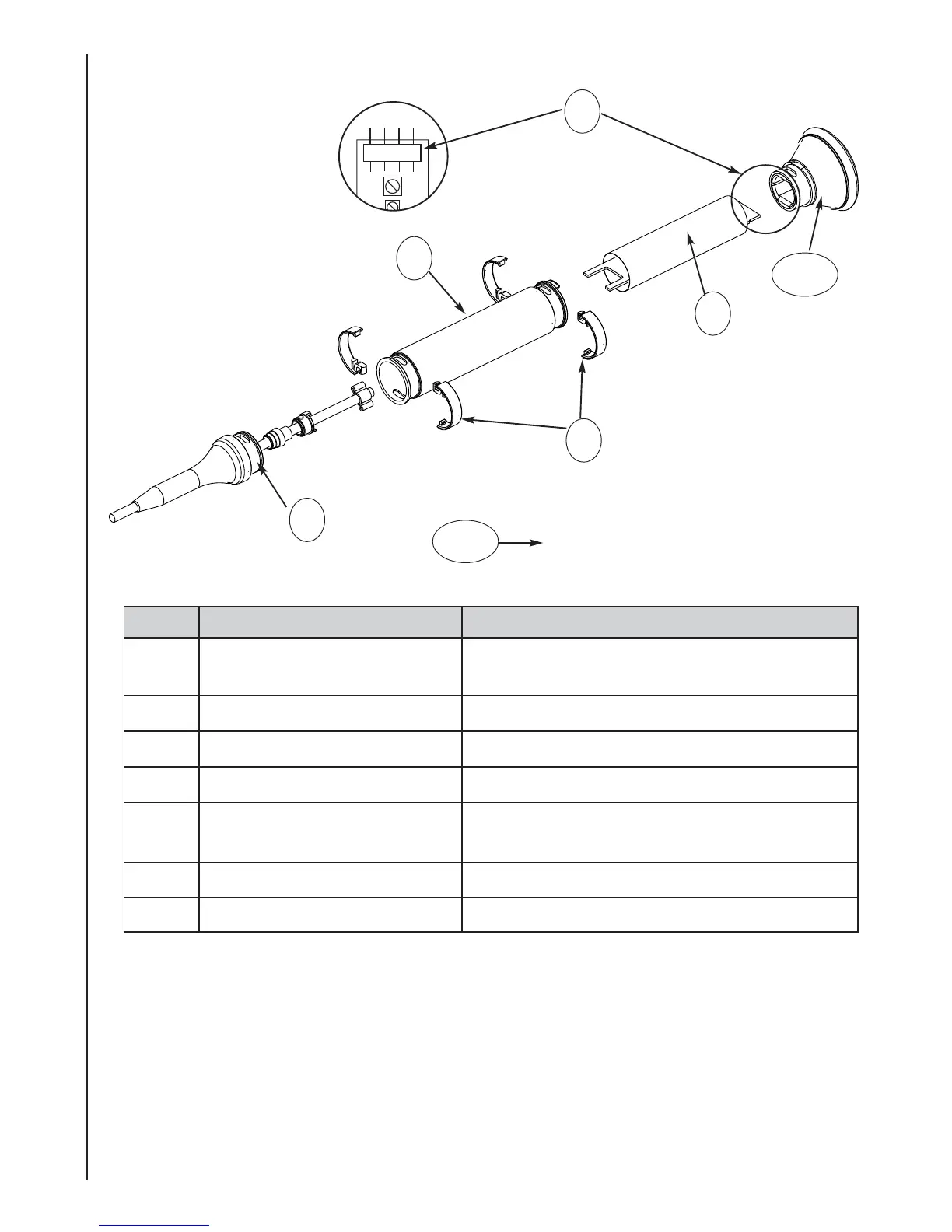

10.5b D920-P, D930-P, FD1-P, FD3-P Probe Parts List
22
77
44
55aa,,bb
66
11aa,,bb
33
Complete
Unit
(Probe
and
Cable)
N.B. For Wiring diagram, please refer to Appendix E.
Ref Part
Number Description
1a
1b
SP-726222
SP-726224
FD1-P/D920-P Spare Probe
FD3-P/D930-P Spare Probe
2 722065 Screen Assembly
3 606331 Aqua Transducer Case Clip
4 606330 Aqua Transducer Case Moulding
5a
5b
SP-726219
SP-726218
2MHz Head Assembly (Slotted)
3MHz Head Assembly (Slotted)
6 SP-726245 Aqua Probe Cable Assembly
7 M22-2530405 4 Way Connector
