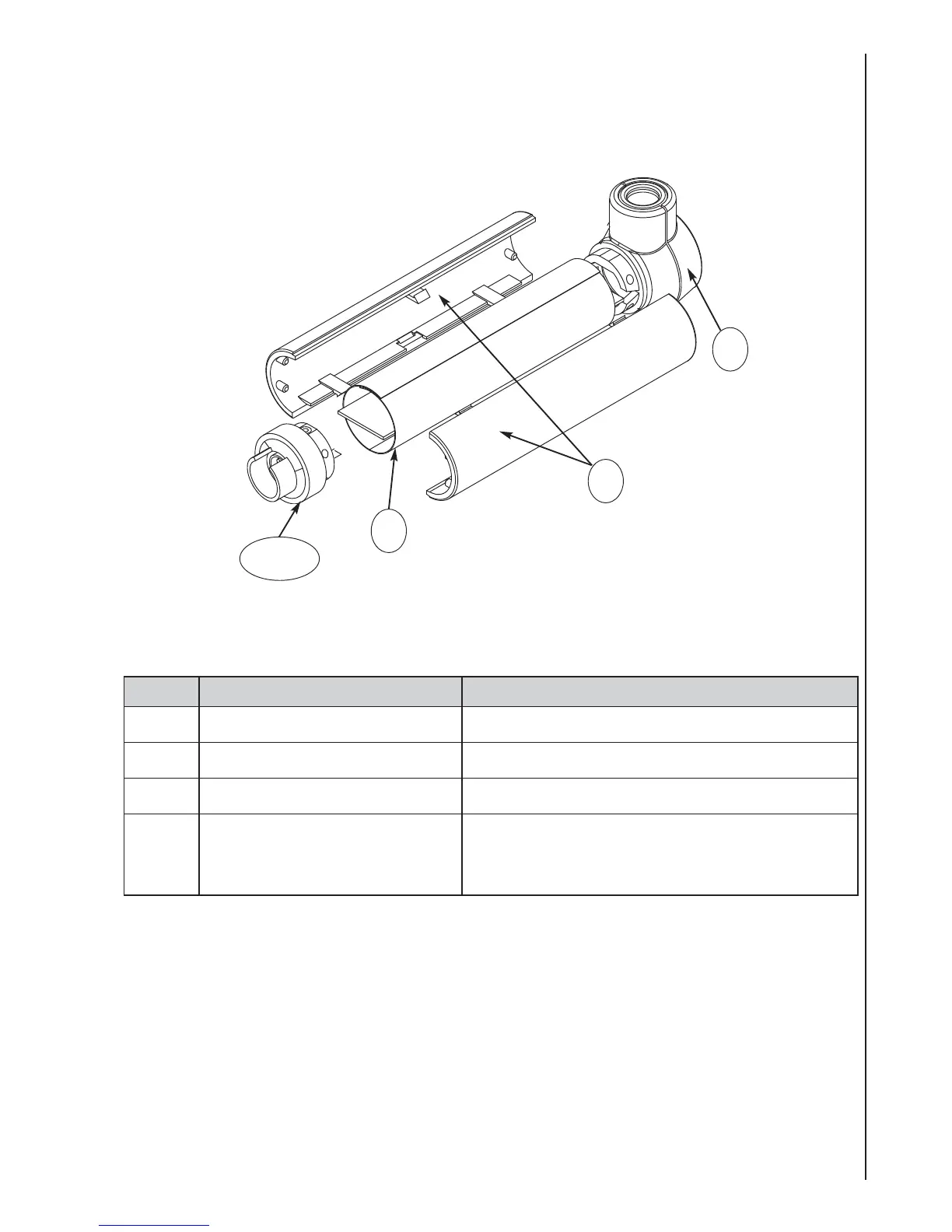

Spare P
ar
ts List
10.6
ISP3 Probe P
ar
ts List
2
2
4
4
a
a
,
,
b
b
,
,
c
c
1
1
3
3
Re
f
Part
Number
Description
1
722061
P
A8 Head Assembly
2
722065
Copper Screen Assembly
3
6AE114
Probe Case Half x 2
4a
4b
4c
76316-A
M3 x 4 - Grub
718-09-33890004
End Cap Assembly
M3 x 4 Grub Screw
Probe Connector Sock
et
54
56
Table of Contents
Default Chapter
2
Table of Contents
2
1 General Information
4
Introduction
4
Servicing Policy
4
Description
4
Antistatic Handling
5
Construction
5
2 Safety Aspects
6
Safety
6
Maintenance
6
Cautions
6
General Care and Cleaning
7
3 Specifications
8
Safety
8
Power Supply
8
Enclosure
8
Controls and Indicators
8
Auto Shut off
9
Outputs
10
Probes
10
4 Technical Description
11
The Doppler Principle
11
Doppler Audio Processing
11
Fetal Heart Rate Processing, (FD2-P , MD2-P , FD1-P , FD3-P)
11
Bi-Directional Signal Processing (MD2-P , SD2-P , RD2)
11
Probe Identification
12
Active Noise Reduction
12
Intelligent Auto Shut off (FD2-P , SD2-P , MD2-P , FD1-P , FD3-P , RD2)
12
Calibration Pulses
12
Waveform Conversion
12
Ppg
13
Data Output
13
Microcontroller
13
Standard/Smoothed Mode FHR
13
Manual Mode FHR
13
Audio Dopplex (D920-P , D930-P), Mini Dopplex (D900-P)
14
Fd2-P , Sd2-P , Md2-P , Fd1-P , Fd3-P , Rd2
16
Obstetric Probe (OP2HS, OP3HS, D920-P , D930-P , FD1-P , FD3-P)
19
Vascular Probe (VP4HS, VP5HS, VP8HS, VP10HS, EZ8)
20
PPG Probe
21
5 Electrostatic Discharge (ESD) Precaution
23
What Is Static Electricity
23
Protective Measures
23
6 Servicing Procedures - Control Unit
24
Control Unit Dismantling Procedure
24
PCB Removal
25
Changing Components
25
Control Unit Reassembly
26
7 Probe Head Replacement Procedure
30
Equipment Required
30
Preparation - for High Sensitivity Probes
30
(Op2Hs,Op3Hs,Vp4Hs,Vp5Hs,Vp8Hs,Vp10Hs,Ez8)
30
Dismantling Procedure - All Probes Except D920-P , D930-P , FD1-P & FD3-P
31
Dismantling Procedure - D920-P , D930-P & FD1-P
31
Dismantling Procedure - D920-P , D930-P , FD1-P & FD3-P
32
New Head Fitting and Alignment
33
Reassembly Procedure - All Probes Except D920-P , D930-P , FD1-P & FD3-P
36
Reassembly Procedure - D920-P , D930-P & FD1-P
37
Reassembly Procedure - D920-P , D930-P , FD1-P & FD3-P
39
Waterproof Inspection & Test Procedure - D920-P , D930-P , FD1-P & FD3-P
41
8 Probe Functional Test Specification
42
Equipment Required
42
Functional Tests - Vascular Probes VP4HS - VP10HS
42
9 Fault Finding
44
LCD - Marks on Display
44
No Sound
44
Unit Dead
44
No Output from Sockets
44
Poor Heart Rate Tracking
44
Poor Sensitivity, Crackling
44
PPG Not Locking on
44
10 Spare Parts List
45
D900-P Parts List
45
D920-P , D930-P Parts List
47
MD2-P , SD2-P , FD2-P , FD1-P , FD3-P , RD2 Parts List
49
Obstetric and Vascular Probe Parts List
51
Fixed Waterproof Probes
52
D920-P , D930-P , FD1-P HSB Series Probe Parts List
53
D920-P , D930-P , FD1-P , FD3-P Probe Parts List
54
ISP3 Probe Parts List
55
11 Ordering Information
56
Service Returns
56
Appendix A
57
Special Handling Procedures
57
Recommended Soldering Equipment for Rework
57
Appendix B
58
Device History Record Sheet
58
Appendix C
59
Recommended Recorder Specifications
59
Appendix D
60
Test Equipment Specifications
60
Appendix E
61
D920-P, D930-P, FD1-P, FD3-P Probe Cable Wiring Details
61
Appendix F
62
Waveform Output Connector Details RD2 / MD2-P
62
Appendix G
63
Trace Examples
63
