The control can be adjusted to the following external control sig-
nals:
0(2) - 5 V DC
0(2) - 10 V DC
0(4) - 20 V DC
0(4) - 10 mA DC
0(4) - 20 mA DC
0 - 140 Ohm
The factory setting is a control signal of 0-10V.
The steam humidifier typically switches off with a (control) sig-
nal of less than 20% and displays "No demand", i.e. no steam is
produced. With a (control) signal of 25% the humidifier resumes
operating.
With a signal of 20%, humidification output reaches 5% of max-
imum output for HeaterLine humidifiers and 10% for electrode
humidifiers. Below that, the unit switches off. At lower steam
output levels, steam would condense in the cylinder or steam
hose and fail to reach its intended location.

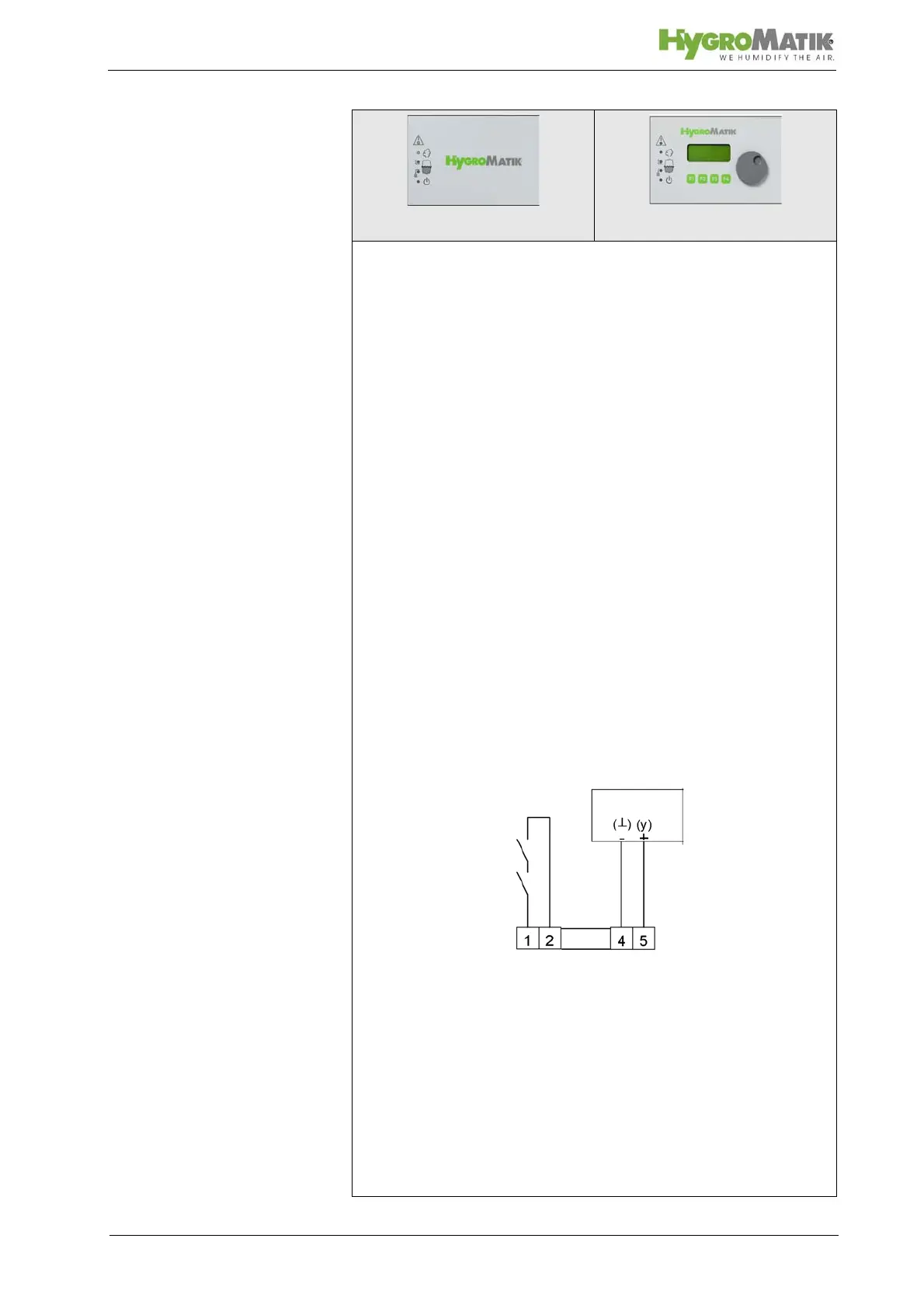

Controller
Humidifier Terminals
Connection for and external controller, single-cylinder an dou-
ble- cylinder humidifier
Note: With double-cylinder humidifiers the control for the sec-
ond cylinder (the right one) is adjusted to an „external control
signal, 0-10V“ (factory setting).
Basic
Comfort / Comfort Plus
Proportional Control
with an External Control
signal
