Note: If the connecting wires carrying the controller signal are
able to pick up electromagnetic signals from cables laid in the
immediate area, the humidifier could operate unchecked.
Therefore, we strongly recommend laying controller signal
wires with shielding laid to fit the dimensions of the controller.
For a proportional control con-
nected to an external control
signal, the jumpers on the PCB
must be connected as follows:
For a proportional control con-
nected to an external control
signal, Parameters U6 and E3
must be set as indicated below,
also see Section „Parameter
Setting with Codes (P0=010) /
Advanced Customer Level.
Parameter
set U6 to “external controller”
and
E3 to “0-10 V”
Also see Section „Parameter
Setting with Codes (P0=010) /
Advanced Customer Level““
Parameter
set U6 to “external controller”
and
E3 to “0-20 mA”
Also see Section „Parameter
Setting with Codes (P0=010) /
Advanced Customer Level“ .
Parameter
set U6 to “external controller”
and
E3 to “0-140 Ohm”
Also see Section „Parameter
Setting with Codes (P0=010) /
Advanced Customer Level“.

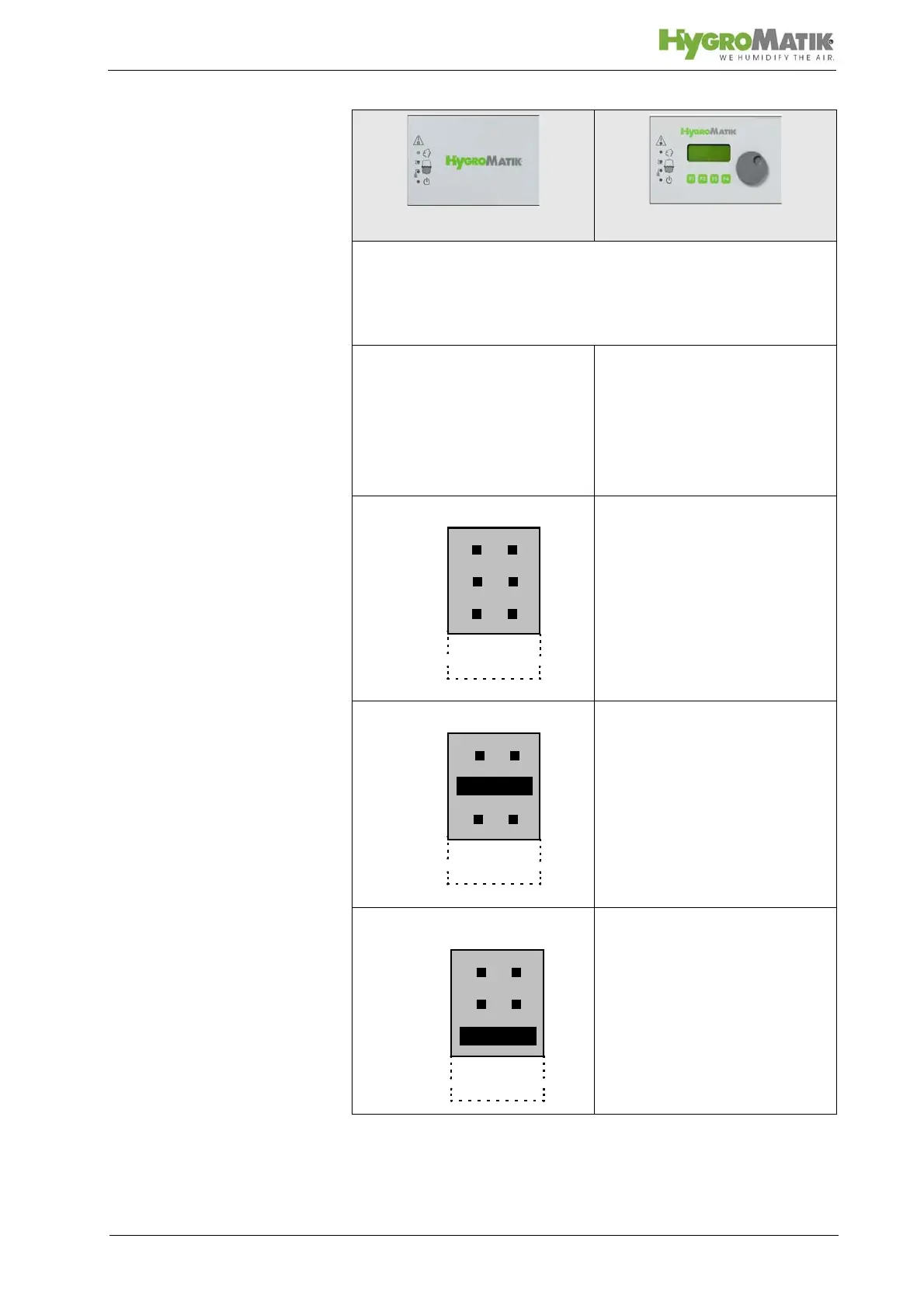

Basic
Comfort / Comfort Plus
Setting for External Control
Signal:
0(2) - 10 V DC
A
B
C
JP1
A
B
C
JP1
Setting for External Control
Signal:
0(4)-20 mA
Setting for External Control
Signal:
0-140 Ohm
A
B
C
JP1
