Maintenance

5-48 HPR130XD Auto Gas – 806330

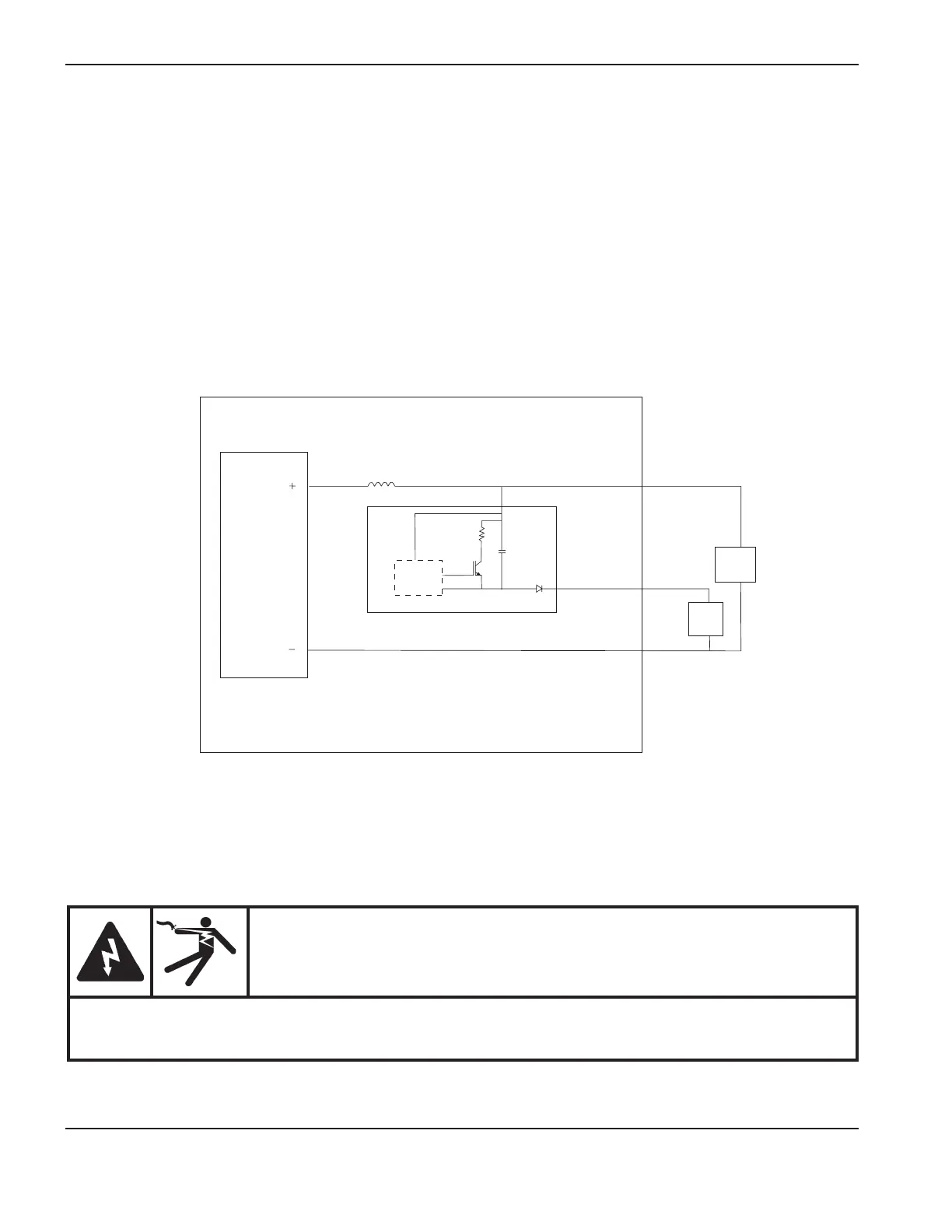

Start circuit functional schematic

Start circuit troubleshooting

Start-circuit PCB1

Operation

The start circuit is a high-speed switch that quickly transfers the pilot arc current from the pilot arc lead to the work lead.

The start circuit performs 2 functions:

1. It allows the initial pilot arc current to flow through the pilot arc lead quickly, with little impedance.

2. After initial pilot arc current is established, the start circuit introduces impedance to the pilot arc lead to aid in

transferring the arc to the workpiece. See schematic below.

Plasma power supply

Choke

Diode

Start circuit

Cutting

arc

Pilot

arc

Power

resistor

Control

logic

ALEL Caps

Chopper

IGBT

DANGER

SHOCK HAZARD

Always use caution when servicing a power supply when plugged in and the covers are removed.

Dangerous voltages exist within the power supply which could cause injury or death.
