InstallatIon
HPR130XD Auto Gas – 806330 3-55

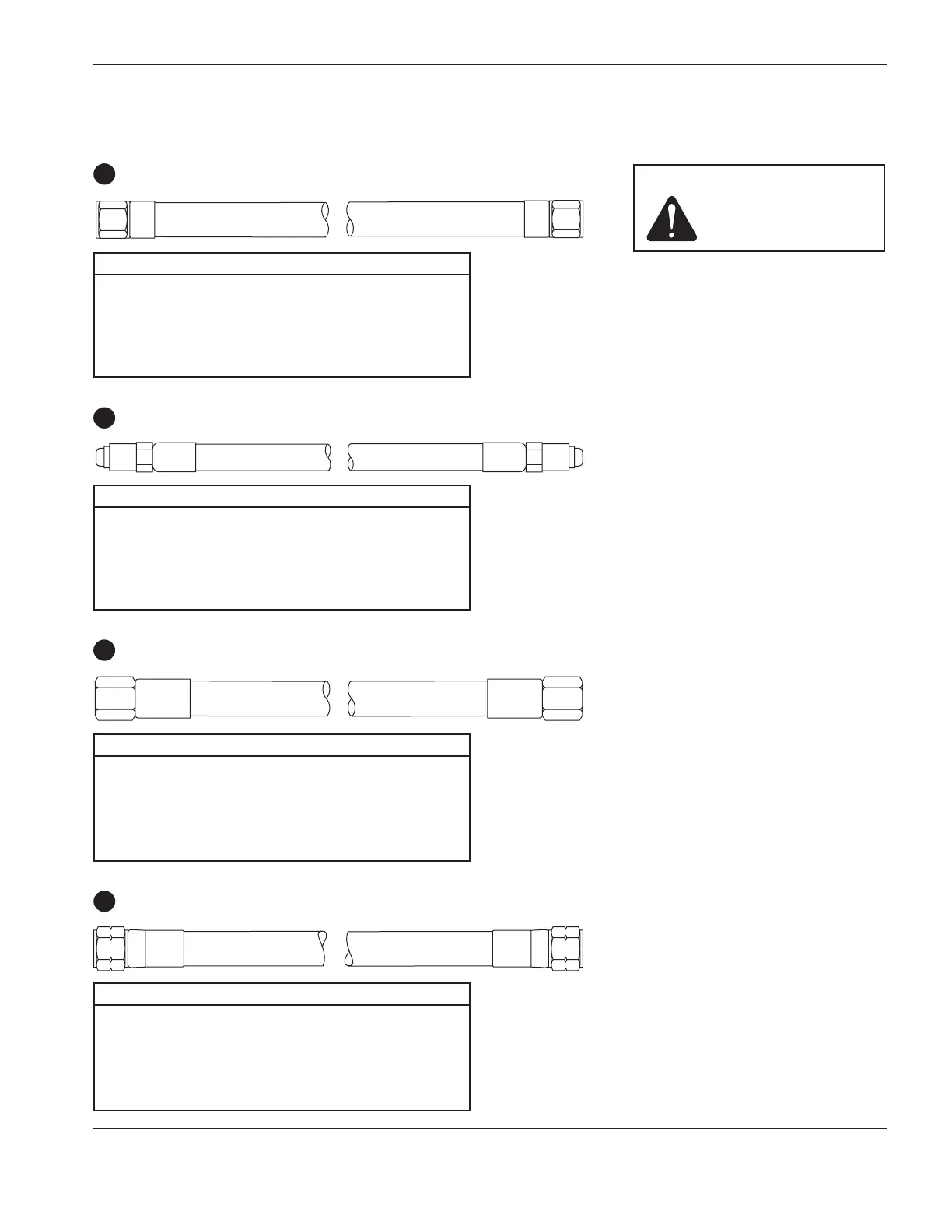

Supply gas hoses
Air hose
Nitrogen or argon hose
Part no. Length Part no. Length
024607 3 m (10 ft) 024738 25 m (82 ft)
024204 4.5 m (15 ft) 024450 35 m (115 ft)
024205 7.5 m (25 ft) 024159 45 m (150 ft)
024760 10 m (35 ft) 024333 60 m (200 ft)
024155 15 m (50 ft) 024762 75 m (250 ft)
024761 20 m (65 ft)
Part no. Length Part no. Length
024210 3 m (10 ft) 024739 25 m (82 ft)
024203 4.5 m (15 ft) 024451 35 m (115 ft)
024134 7.5 m (25 ft) 024120 45 m (150 ft)
024211 10 m (35 ft) 024124 60 m (200 ft)
024112 15 m (50 ft) 024764 75 m (250 ft)
024763 20 m (65 ft)
Part no. Length Part no. Length
024671 3 m (10 ft) 024740 25 m (82 ft)
024658 4.5 m (15 ft) 024744 35 m (115 ft)
024659 7.5 m (25 ft) 024678 45 m (150 ft)
024765 10 m (35 ft) 024680 60 m (200 ft)
024660 15 m (50 ft) 024767 75 m (250 ft)
024766 20 m (65 ft)
Oxygen hose
12
13
14
Argon-hydrogen (H35) or nitrogen-hydrogen (F5)
Part no. Length Part no. Length
024768 3 m (10 ft) 024741 25 m (82 ft)
024655 4.5 m (15 ft) 024742 35 m (115 ft)
024384 7.5 m (25 ft) 024743 45 m (150 ft)
024769 10 m (35 ft) 024771 60 m (200 ft)
024656 15 m (50 ft) 024772 75 m (250 ft)
024770 20 m (65 ft)
15
Caution: Never use PTFE
tape on any joint
preparation.
