InstallatIon

3-12 HPR130XD Auto Gas – 806330

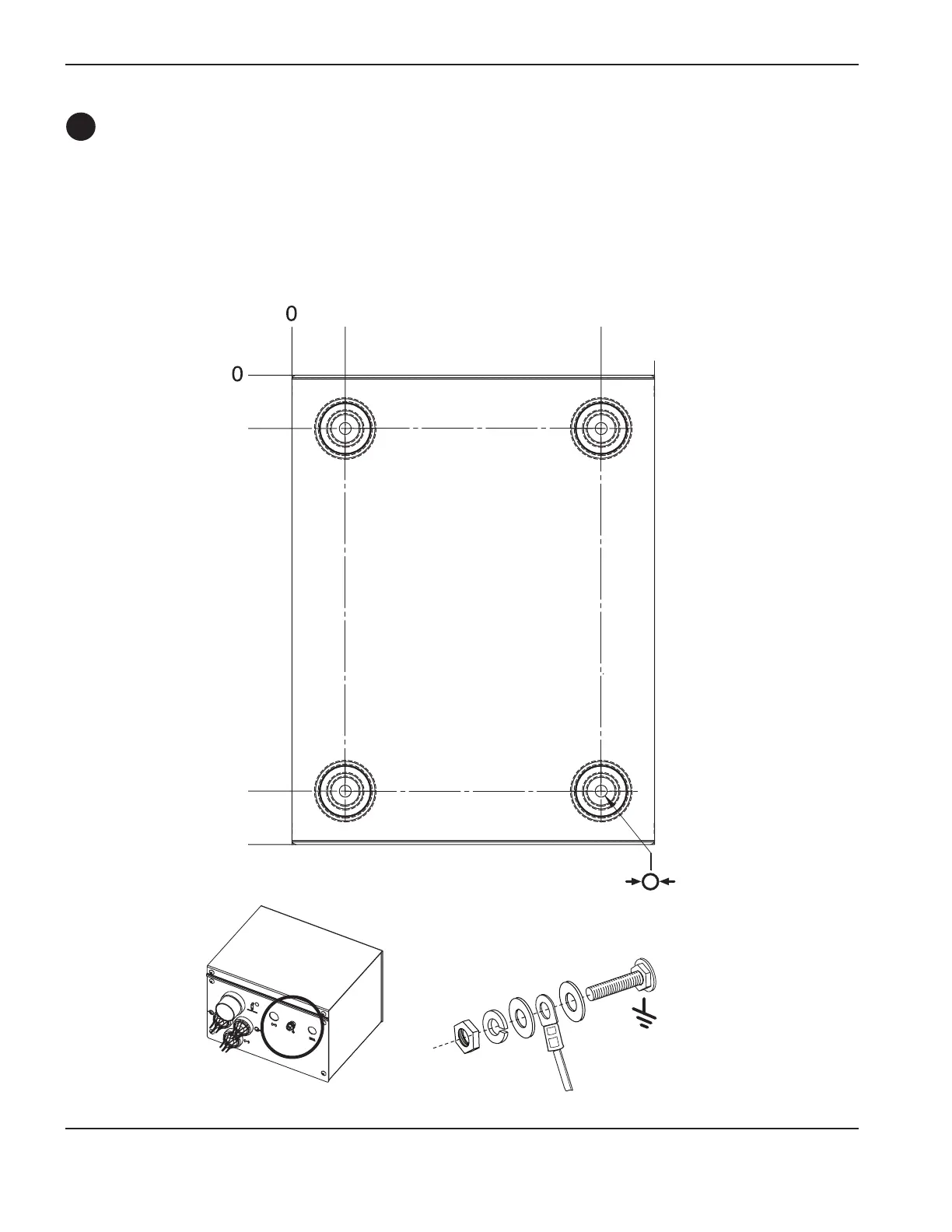

Install the ignition console

• Mount the ignition console on the gantry (bridge) for the RHF configuration.

• Mount the ignition console on the power supply for the LHF configuration.

• Allow room to remove the top for servicing.

Ignition console grounding

7 mm

0.28 inch

(4 places)

32 mm

1.25 inch

32 mm

1.25 inch

184 mm

7.25 inch

279 mm

11.00 inch

248 mm

9.75 inch

216 mm

8.50 inch
