Hypertherm HyPerformance HPR130XD User Manual

SpecificationS

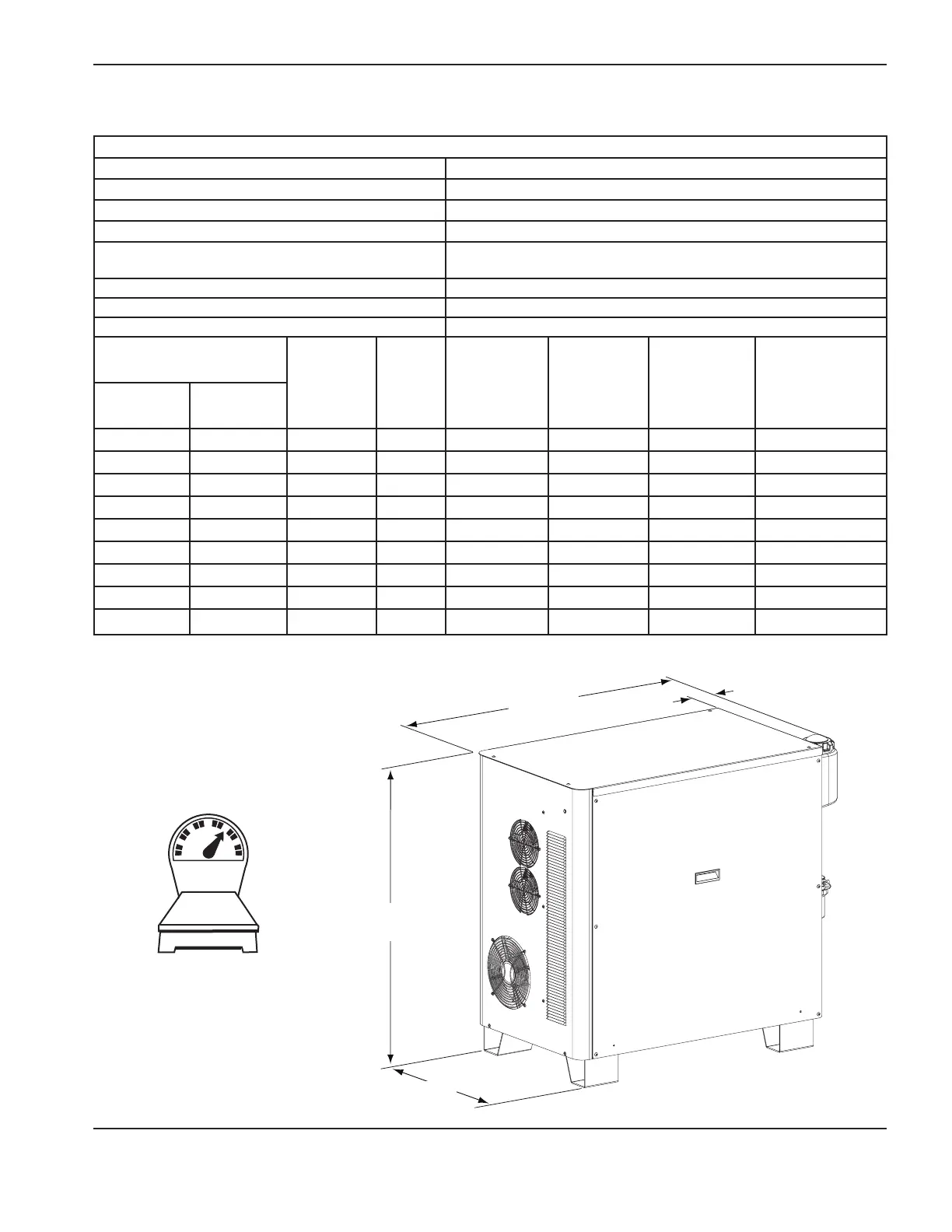

HPR130XD Auto Gas – 806330 2-5
Power supply
154.9 mm
6.1 inch
1079.5 mm
42.5 inch
967.7 mm
38.1 inch
566.4 mm
22.3 inch
317.5 kg
700 lb
General
Maximum OCV (U
0
) 311 VDC
Maximum output current (I
2
) 130 amperes (A)
Output voltage (U
2
) 50 – 150 VDC
Duty cycle rating (X) 100% @ 19.5 kw, 40°C (104°F)
Ambient temperature/Duty cycle
Power supplies will operate between -10°C and +40°C
(+14°°Fand 104°F)
Power factor (cosϕ) 0.88 @ 130 ADC output
Cooling Forced air (Class F)
Insulation Class H
Power supply
part numbers
AC Voltage
(U
1
)
Phase
Frequency
(Hz)
Amperage
(I
1
)
Regulatory
approval
Power kVA
(+/- 10%)
(U
1
x I
1
x 1.73)
Without
Hypernet
®
With
Hypernet
078538 078546 200/208 3 50/60 62/60 CSA 21.5
078539 078547 220 3 50/60 57 CSA 21.5
078540 078548 240 3 60 52 CSA 21.5
078541 078549 380* 3 50/60 33 CCC 21.5
078542 078550 400 3 50/60 32 CE/GOST-R 21.5
078603 078604 415 3 50/60 32 CE/GOST-R 21.5
078543 078551 440 3 50/60 28 CSA 21.5
078544 078552 480 3 60 26 CSA 21.5
078545 078553 600 3 60 21 CSA 21.5
* The 380 volt CCC regulatory approval only applies to 50 Hz operation

Hypertherm HyPerformance HPR130XD Specifications

General

Brand	Hypertherm
Model	HyPerformance HPR130XD
Category	Welding System
Language	English
